Audio Scheduler V20

28 min read

Introduction #

Experience the convenience of 3CX Audio Scheduler, a versatile tool that allows you to schedule tones or alarms across your paging system and phones effortlessly. Enhance workplace communication by effectively notifying employees of important events such as break times and shift changes. Seamlessly manage multiple alarms throughout the day, ensuring optimal efficiency and organization.

Customize your auditory experience with 3CX Audio Scheduler to meet your specific needs. Tailor tones for fire alarms, tornado warnings, or shift change notifications. This feature keeps your staff alert and informed, fostering a safe and productive environment.

Industries like schools, airports, and shift-based organizations can significantly benefit from the comprehensive functionality of the 3CX Audio Scheduler. Streamline operations and improve coordination within educational institutions, airports, and any environment that follows shift schedules. Unleash the true potential of your workplace communication with this indispensable solution.

Why 3CX Audio Scheduler? #

SCHEDULE NOTIFICATIONSEnhance your communication efficiency by scheduling the playback of tones or alarms on your paging system and phones. Take full advantage of the seamless scheduling capabilities to ensure timely delivery of custom tones or alarms, effectively optimizing workplace productivity.
SIMPLE CONFIGURATIONIntuitive web portal lets you schedule and manage your paging notifications with ease. You have complete control with user-friendly controls and a straightforward interface, allowing you to efficiently coordinate and customize your notifications according to your specific requirements.
CUSTOM AUDIOElevate your communication strategy by uploading personalized audio files for your announcements or notifications. Integrate custom audio files to make your messages distinctive and grab the attention of your audience.
AUTOMATE NOTIFICATIONSBoost your organizational efficiency by utilizing our scheduling capabilities to seamlessly plan and deliver an unlimited number of notifications or messages.

What’s New? #

  • Greatly simplified administration of scheduled audio
  • Upload custom audio files
  • Play an unlimited number of different audio files
  • You can page to any device type including traditional overhead paging, phones, PA1 (and similar products)
  • The improved installer allows you to add, edit, delete, and run scheduled audio directly from the configuration screen

Prerequisites #

Ensure your computer meets the minimum requirements outlined below before installing 3CX Audio Scheduler,

PREREQUISITE PURPOSE
3CX Version V203CX Audio Scheduler is designed to work seamlessly with this version for enhanced features and performance.
Windows 10 or above / Windows Server 2012 or aboveThese operating systems provide the necessary environment for the application to run efficiently.
IIS Features and Configuration – VoIPToolsIIS is needed as a web server to host and manage web-based applications and services.
.NET Framework 4.7.2 (Web Installer)This framework provides essential components for running and developing applications.
VoIPTools Universal UpdaterThis component is necessary for updates, ensuring the application remains current and functional.
Microsoft SQL Server 2016 or above (Including the free SQL Express edition)3CX requires Microsoft SQL Server 2016 or later for database management.
Static IP for VoIPTools and 3CX serversThis is to ensure proper two-way communication, both the 3CX server (Relay) and the VoIPTools server. Dynamically assigned IP addresses are not supported. Additionally, it is recommended to use HTTPS for secure communication, which requires a FQDN for SSL/TLS certificate validation between the VoIPTools server and the Relay.
Port number 5950 opened on your devicePort 5950 is a specific network port used by 3CX for communication purposes. Opening this port on the device’s firewall allows incoming and outgoing traffic to pass through, enabling the 3CX software to send and receive data over the network effectively.

NOTE:

When installing IIS, be sure to install Basic Authentication, .Net Extensibility, and ASP.Net 4.X

Installation overview #

DOWNLOAD SOFTWAREThere are several prerequisites that must be installed prior to installing the 3CX Audio Scheduler. These prerequisites include Microsoft Internet Information Server (IIS) and Microsoft SQL Server
INSTALL PREREQUISITESYou must install several prerequisites before installing the 3CX On Call Manager. The Advanced Installer identifies and installs these applications automatically.
INSTALL 3CX AUDIO SCHEDULERThis User Guide contains step-by-step instructions to successfully install 3CX Audio Scheduler. Begin by extracting the installer from the downloaded zip file (Step 1 above), then run the setup program named AudioSchedulerInstaller.exe
REGISTER YOUR SOFTWAREYou must register your license key to activate 3CX Audio Scheduler. Your license key is included in your order confirmation email and can also be found in your order history on our website.

Step By Step Installation Procedure #

The following section guides you through a detailed walk-through of the installation process:

Step 1:  Download ‘3CX Holiday Importer’.   #

Find the software download link in the Order Confirmation Email, or you can download the application by following the procedure,

  1. Open your browser and go to the VoIPTools official website or click here to get redirected to the website.
  2. Search for the Audio Scheduler application and click the Download button to download your application.

Step 2:  Install Prerequisites #

Click on the software installer downloaded in Step 1. The installation wizard will automatically identify the prerequisites and assist you with each installation required to 3CX Power Dialer. It includes .NET Framework (Web Installer), SQL Server Express (Web Installer), and SQL Server Management Studio.

  1. Click the downloaded installer executable to launch the Prerequisites Setup Wizard and click Next.
Figure 1: Prerequisites setup wizard
  1. In the Prerequisites window, install all the required prerequisites identified by the installer, or select/ unselect the applications based on your requirements and click Next to continue.
Figure 2: Select prerequisites

The Advanced Installer installs the required prerequisites. This may take several minutes to complete.

Figure 3: Prerequisites Installation in Process

NOTE:

The installer will identify any prerequisites needed. It is recommended that you allow the installer to automatically install and configure the required prerequisites. Once all the prerequisites are installed, you can continue with the tool install.

  1. In the Microsoft SQL Server License Terms click the Accept button to acknowledge the license terms and continue.
    • This page appears if you do not have SQL Server Express preinstalled in your device.
Figure 4: SQL Server Express: Accept License Terms
  1. View the SQL Server Media target location in the Media Location field. If required, you can click the Browse button to change the location. Click Install to begin the installation of SQL Server Express.
Figure 5: SQL Server Express: Target Location

SQL server installation is in progress. This may take several minutes to complete.

Figure 6: SQL Server Installation In Progress
  1. Click the Close button once the prerequisites are installed.
Figure 7: SQL Server Express: Installed Successfully
  1. Click Yes in the Confirmation Message Box to reboot the computer.
Figure 9: Reboot Confirmation Message Box.

Step 3: Install 3CX Audio Scheduler #

  1. On the Welcome screen, click Next to start installing 3CX Audio Scheduler.
Figure 10: Audio Scheduler setup wizard
  1. On the Installation Folder window, the Folder field displays the location where the ‘3CX Audio Schedulerr’ will be installed.
  2. Click Next to continue with the installation.

NOTE:

You cannot change the installation folder

Figure 11: View the Installation folder

Step 4: Test Relay Settings #

  1. In the 3CX Relay Services window, in the Relay Host field, enter the FQDN of your 3CX server.

NOTE:

Do not include https:// to the Relay host data.

  1. Enter 8801 in the Relay Port field.
  2. Enter the public key you copied from VoIPTools Relay services in the Public Key text area.
Figure 12: Windows Installer: Relay Settings
  1. Click the Test Relay Settings to confirm 3CX Audio Scheduler can communicate with the Relay services running on the 3CX server.
  2. If the 3CX Audio Scheduler is successfully able to communicate with the Relay services that run on the 3CX server, a Success message box appears. Click OK. If the test fails, you will not be able to continue until communication with the relay is established.
  3. Click Next to continue with the installation.
Figure 13: Test Relay Success

NOTE:

  • You must set the Relay Port to 8801.
  • If the Relay test fails, you cannot continue the installation until you establish communication with the Relay. If the test was unsuccessful:
    • Confirm you have the correct firewall port open (default TCP 8801) on the 3CX server and the firewall protecting the 3CX server.
    • Confirm that you have entered the correct FQDN for the 3CX server.
    • Confirm that the 3CX Power Dialer and Relay use the same port and protocol.

Step 5: Configure the database #

When configuring the 3CX Audio Scheduler, select an existing Microsoft SQL Server instance in your environment.  The database server can be a remote SQL Server, or a local instance running on the VoIPTools server.

You can set up the SQL database using SQL Authentication or Windows Integrated Authentication.

SQL Authentication #

  1. Enter your server’s name in the Server field.
    •  If using the free SQL Express Edition, the default SQL Instance name is SQLExpress.
Figure 14: Configure Database – Server Field

NOTE:

  • If you want to use ‘SQL Authentication’, then install SQL Server in ‘Mixed‘ mode.
  • If SQL Server is installed on a server other than the server where 3CX Exporter is installed, you will need to configure SQL Server to allow remote connections.
  1. Enter your credentials in the Username and Password fields.
Figure 15: Configure Database – Database Credentials

NOTE:

Make sure that you select a SQL Login that has sufficient permissions to alter the database and create SQL objects.

  1. Select or enter the 3CX Emergency Notifier in the Database dropdown.
Figure 16: Configure Database – Database Dropdown
  1. In the Test SQL Connections section, click the Tool button to test the connection and click OK in the Test Results popup box.
Figure 17: Test SQL Connection

Windows Integrated Authentication #

  1. To use Windows Integrated Authentication check the Trusted Connection (Windows integrated authentication) checkbox.
    •  The VoIPTools installer will create a local Windows user name as “VoIPToys” and give you sufficient rights to this user to create/update the SQL database.
Figure 18: Trusted Connection Checkbox
  1. In the Test SQL Connection section, click the Tool button to test the connection.
  2. Click the Next button which gets enabled when the database connection is successful.
Figure 19: Trusted Connection Test Results Message Box

NOTE:

We encourage you to use SQL Authentication rather than Windows authentication.  Many of our tools leverage a Call Flow Designer (CFD) application running on the 3CX.  Frequently our CFD applications require access to a SQL database.  If the 3CX server and the database server are not in an Active Directory domain, Windows authentication will fail.  To use SQL authentication, your SQL Server must be configured to run in “Mixed Mode”.  If you installed SQL Server with one of our tools, we configure SQL in “Mixed Mode”.

Step 6: Installing 3CX Audio Scheduler #

  1. On the Ready to Install screen, press Install to install 3CX Audio Scheduler.
Figure 20: Windows Installer: Ready to Install
  1. Click Finish to complete the installation.
Figure 21: Windows Installer: Finished

Step 7: Login to the Web Application #

Follow the procedure to log in to your software,

  1. Double-click 3CX Audio Scheduler on your desktop to open the web application.
  1. In the Login page, do the following
    • In the Extension field, enter your 3CX extension number.
    • In the PIN field, enter your 3CX voicemail PIN.
    • Click the Login button to log in to your account.
Figure 22: Login Page

NOTE:

Only managers can log in to the application. Users are not authorized to access to access the application.

Figure 23: Access Denied to Non-Managers

3CX Audio Scheduler Web Portal #

Application Overview #

This section gives you an overview of the user interface of the web application.

Figure 24: Overview of Web Portal
Left Side Panel – Expand/Minimise buttonThis button lets you minimize the menus in the left side panel to have more space for the main content.
Left Side PanelThe Left Side panel consists of all the tabs in the 3CX Custom Presence.
Logout ButtonYou can log out of the web application using the logout button.

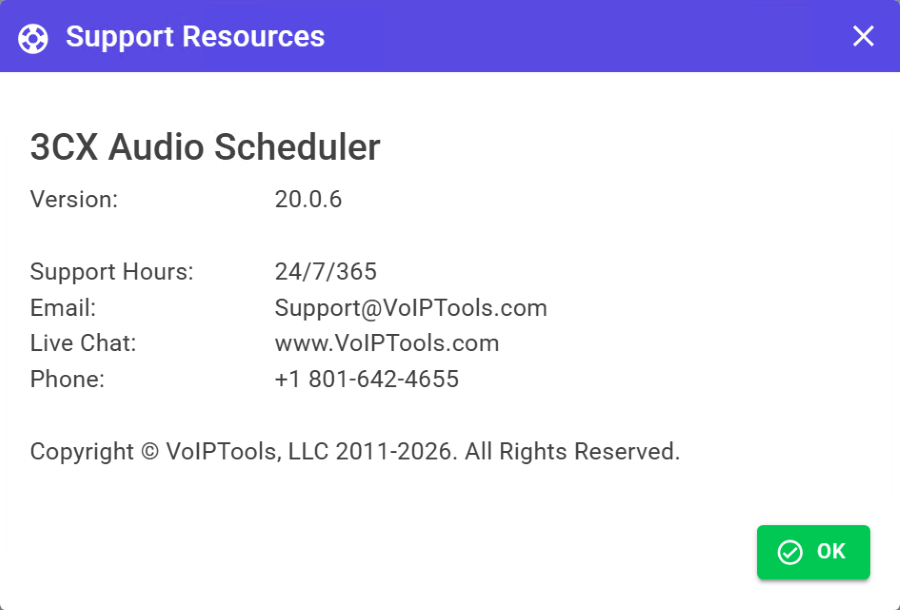

Support Resources ButtonGives you basic information about the application and contact details of the VoIPTools support team.

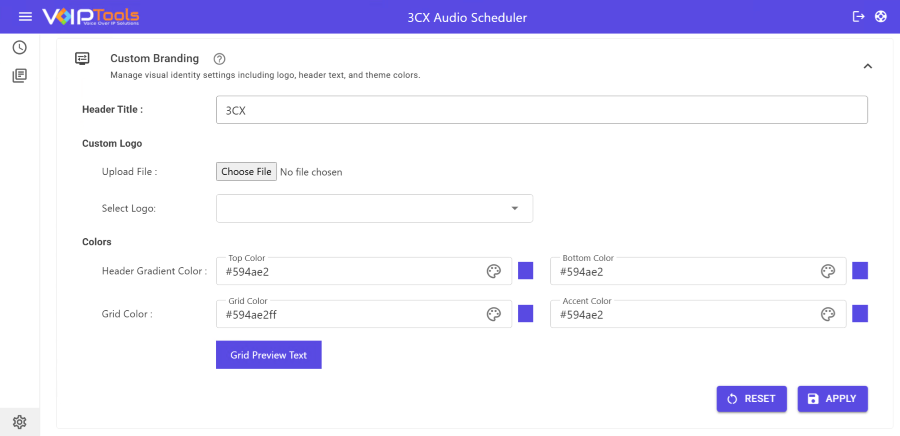

Company LogoHere you can insert your company logo. Click here to learn how to insert and change your company logo.
Header Prefix TitleHere you can insert your company name. Click here to learn how to insert and change your company name.

Left Side Panel #

The Left Side Panel consists of all the menus of the web application. You can minimize the Left Side Panel to enlarge your main content.

Figure 25: Left Side Panel – Compact View
Figure 26: Left Side Panel – Expanded View

The left side panel consists of the following menus,

Settings menuThe Settings Menu allows users to configure essential application settings through four main tabs: Resource Settings, TTS Settings, WAV File Settings, and Page Dial Code settings. The Resource Settings tab facilitates the addition of resources and the assignment of audio files. The TTS Settings tab enables the creation and management of text-to-speech audio files. The WAV File Settings tab allows for the upload and deletion of local audio files. The Page Dial Code tab configures auto-answer functionality for phones.

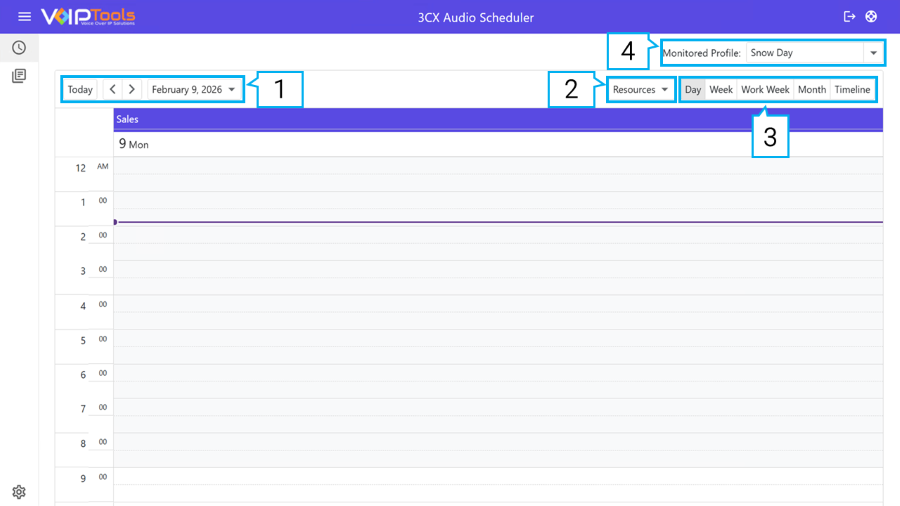

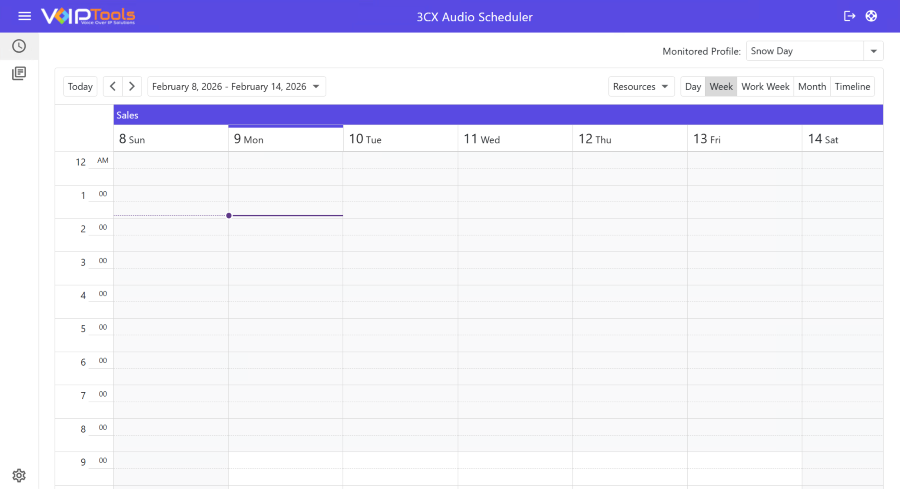

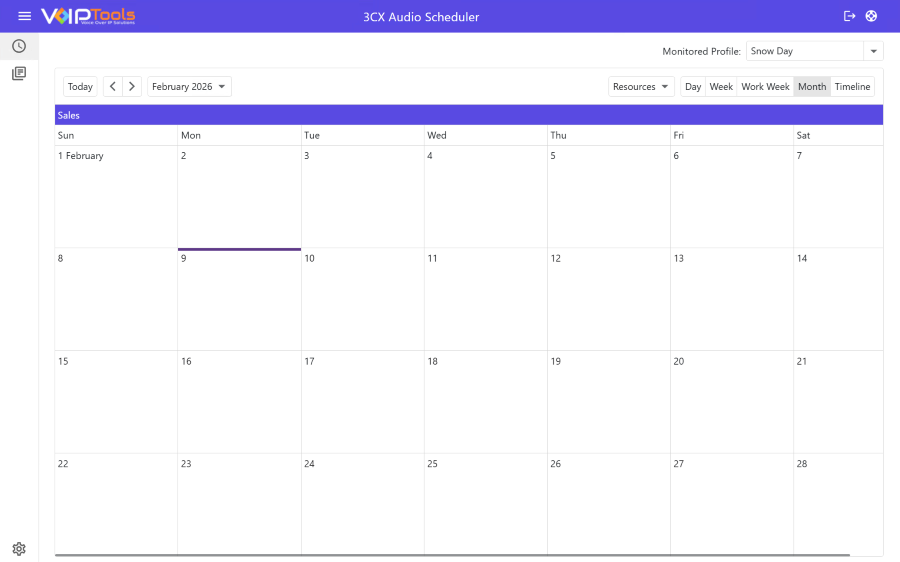

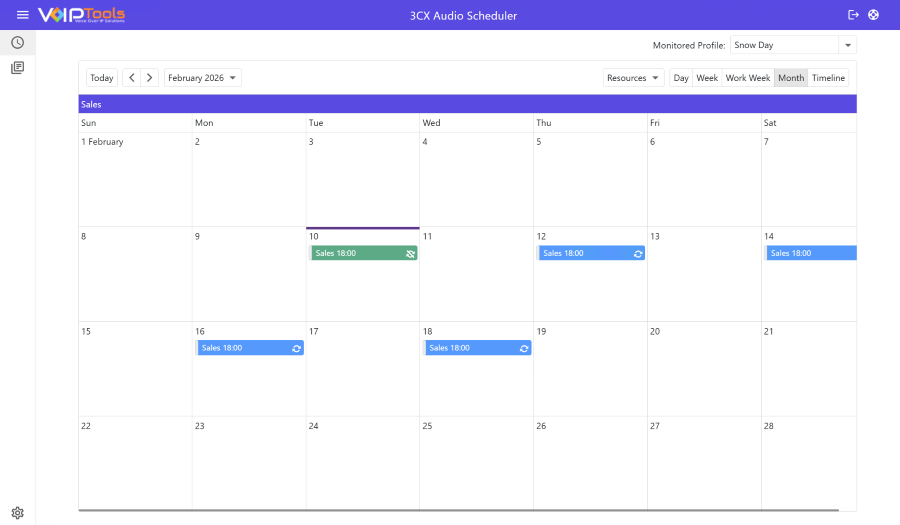

Scheduler menuThe Scheduler Menu facilitates efficient appointment management, allowing users to schedule, edit, and delete appointments. Key features include a Date Selection tool for viewing and modifying appointments by date, a Resource Dropdown for selecting resources, and various display options for viewing schedules in different formats. Users can create both simple and advanced appointments, set recurring appointments daily, weekly, monthly, or yearly, and adjust playback speed. This comprehensive scheduling tool enhances organization and productivity.
Site Settings menuThe Site Settings feature enables comprehensive customization of the application’s branding, allowing you to adjust the header’s gradient color, grid color, logo, and header title prefix. These customizations personalize the application to align with your company’s branding, enhancing the overall user experience. By tailoring these visual elements, you ensure the application’s appearance reflects your company’s identity, creating a cohesive and professional interface for users.
License menuThe License Tab serves to authenticate and manage your software license key through the registration process with VoIPTools. By registering, users ensure access to key benefits: prompt replacement of lost keys, timely notifications of product updates, and reminders for key renewal to maintain uninterrupted service access. It is essential to note that each license key permits installation on a single computer, emphasizing compliance with licensing terms and ensuring proper utilization of the software.

Settings Menu #

In the Settings Menu, you can configure essential application settings through four main tabs: Resource Settings, TTS Settings, WAV File Settings, and Page Dial Code Settings. In the Resource Settings tab, you add resources and assign audio files. The TTS Settings tab allows you to create and manage text-to-speech audio files. In the WAV File Settings tab, you upload and delete local audio files. The Page Dial Code tab lets you configure auto-answer functionality for phones.

Figure 27: Settings Menu – Overview
Resource SettingsIn the Resource Settings tab, add resources and assign audio files using TTS or by uploading from your device.

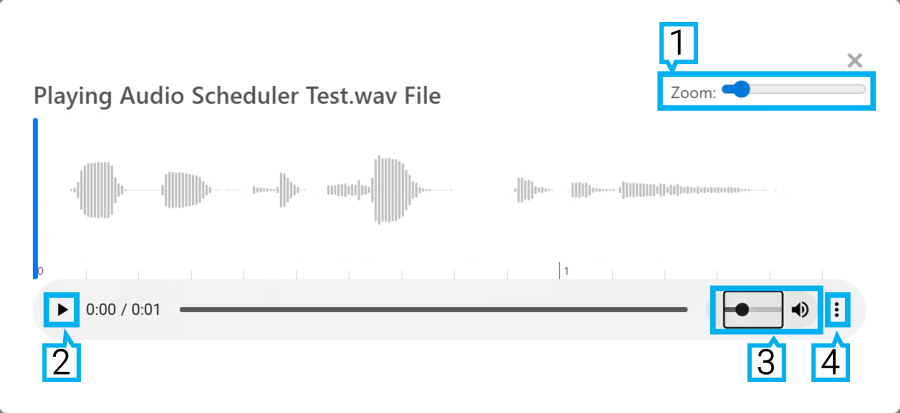

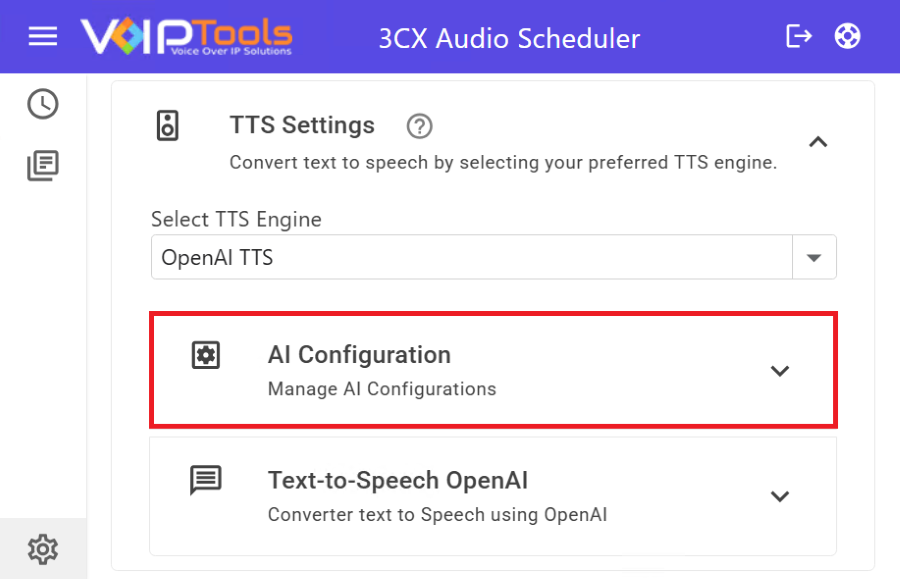

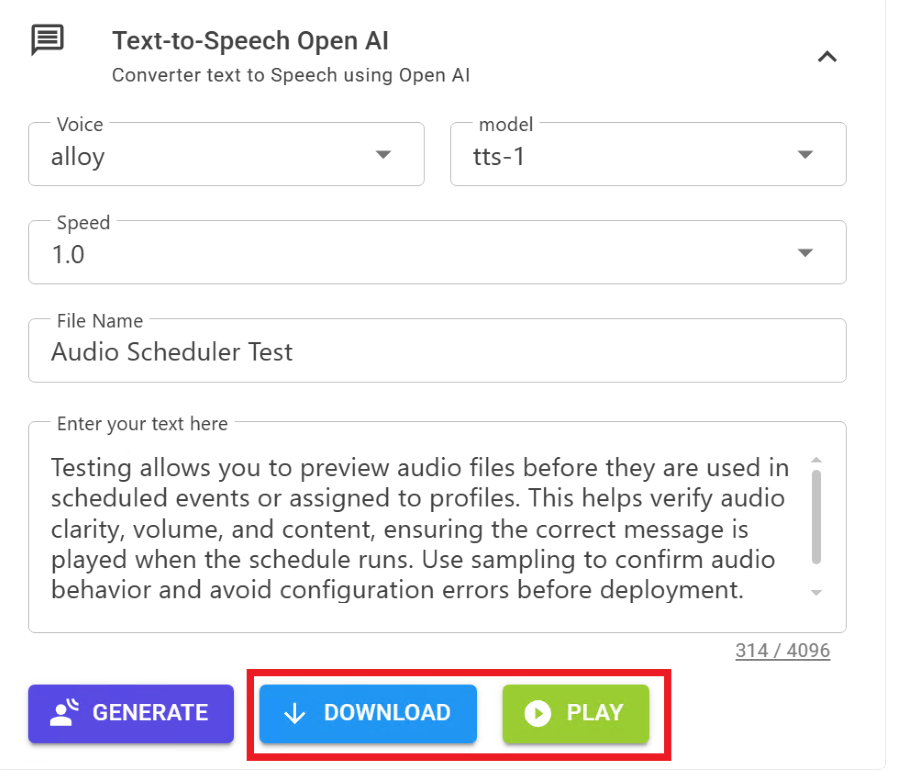

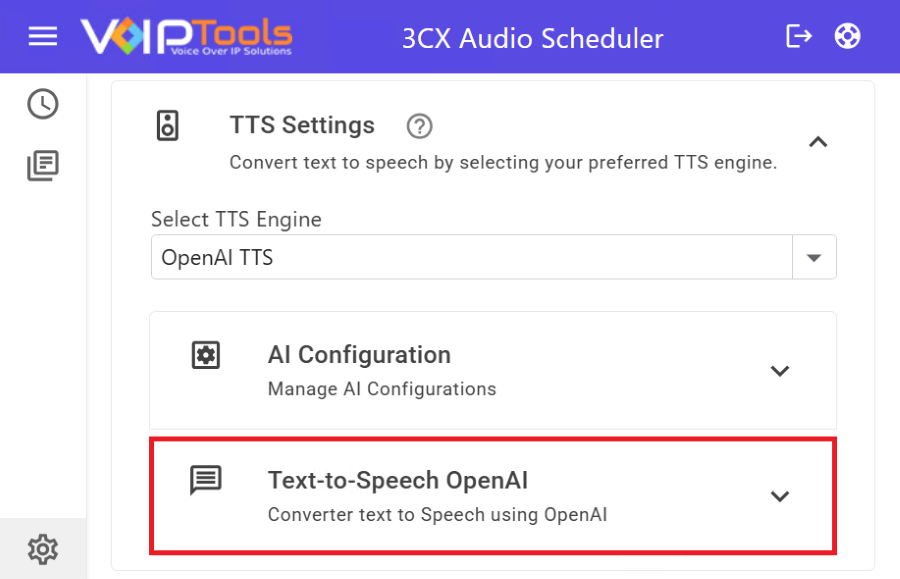

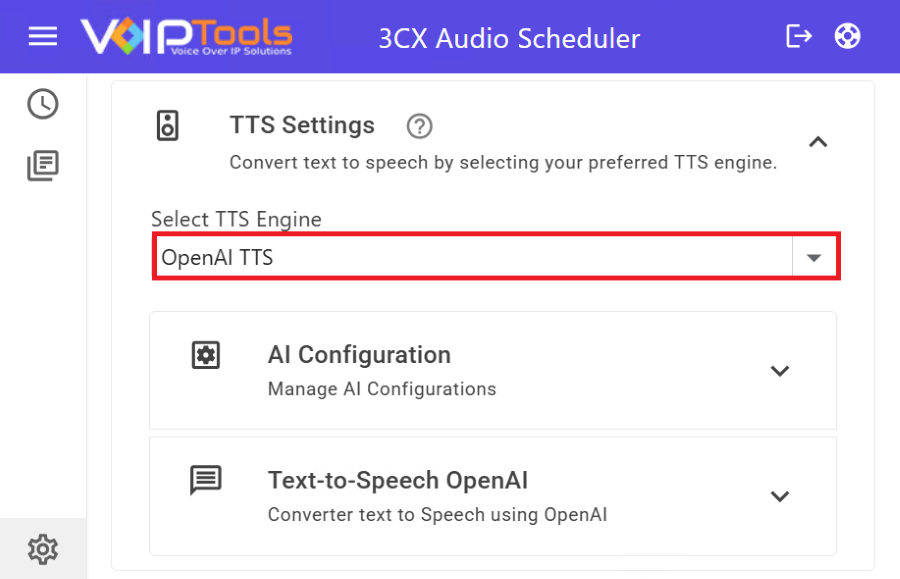

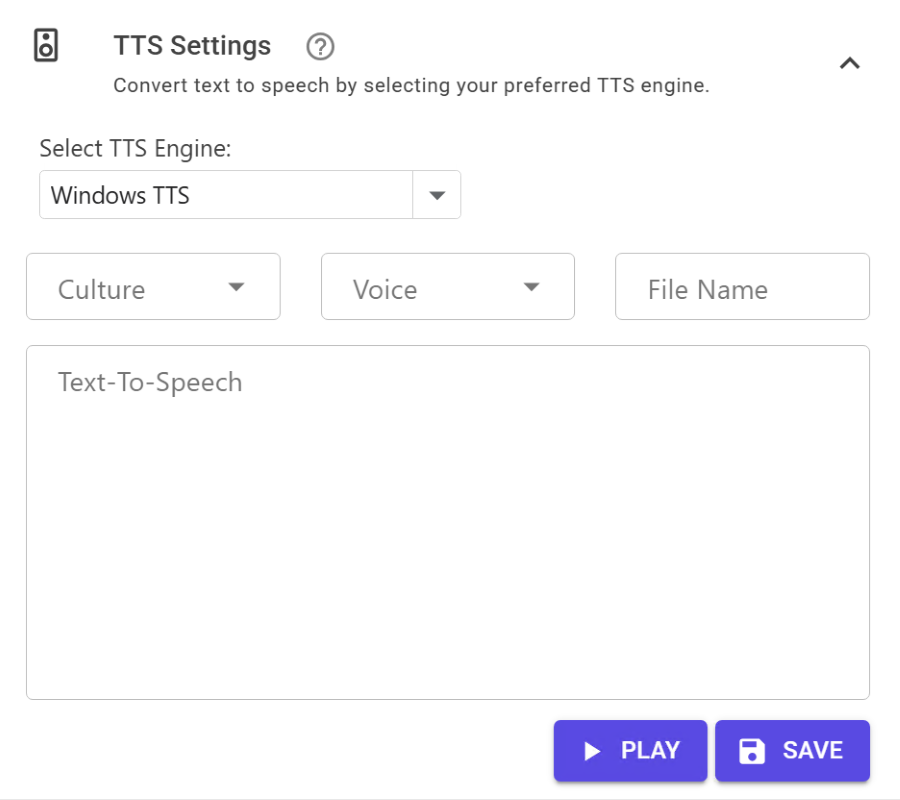

TTSThe TTS tab lets you create audio files that can be assigned to your resources.

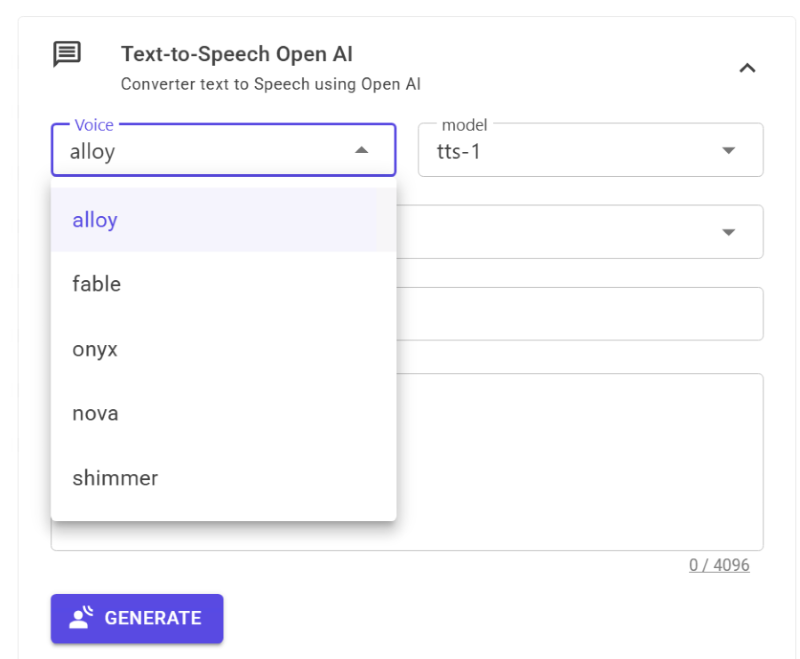

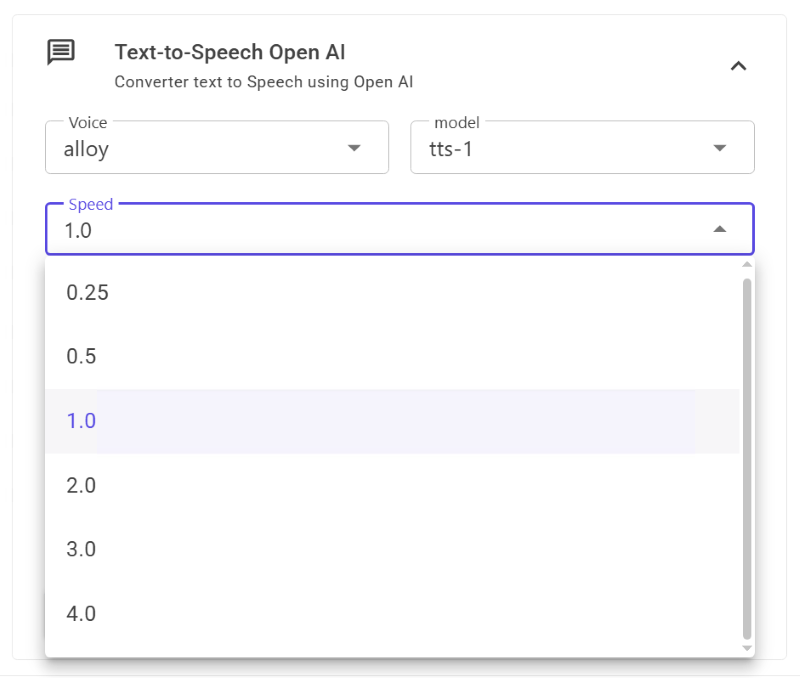

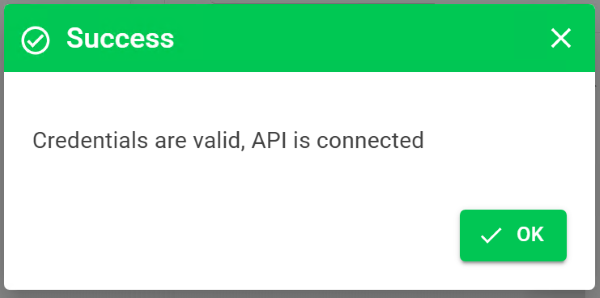

Open AI The features let you connect to OpenAI, generate, customize, play, and download audio from text, with waveform controls.

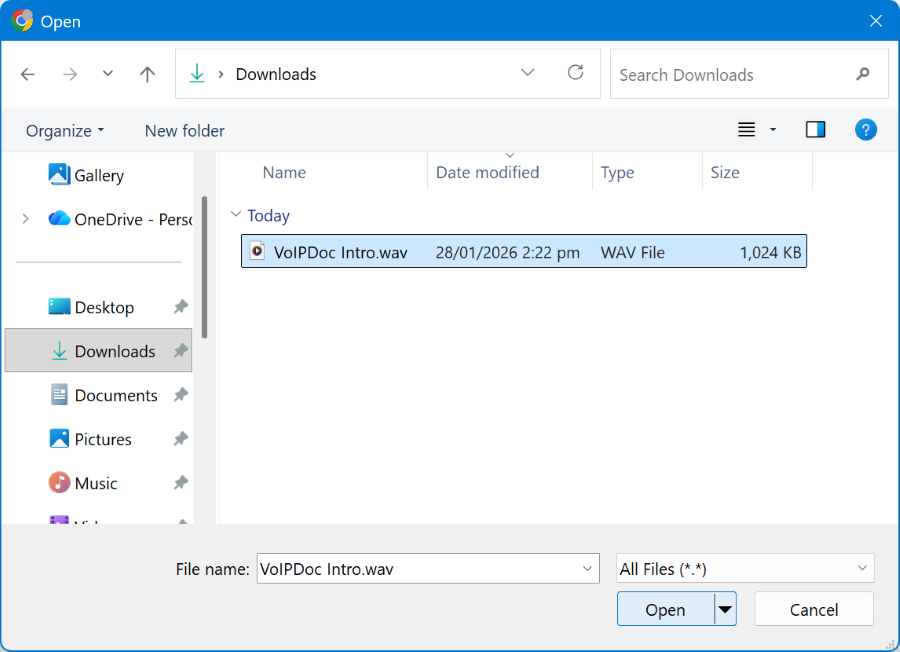

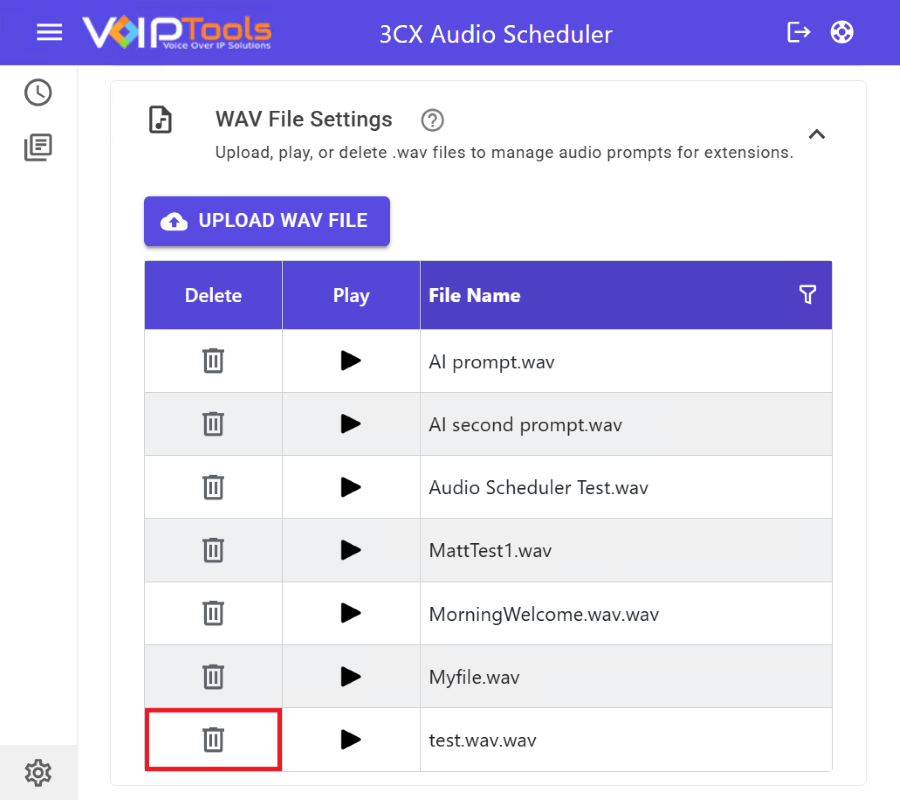

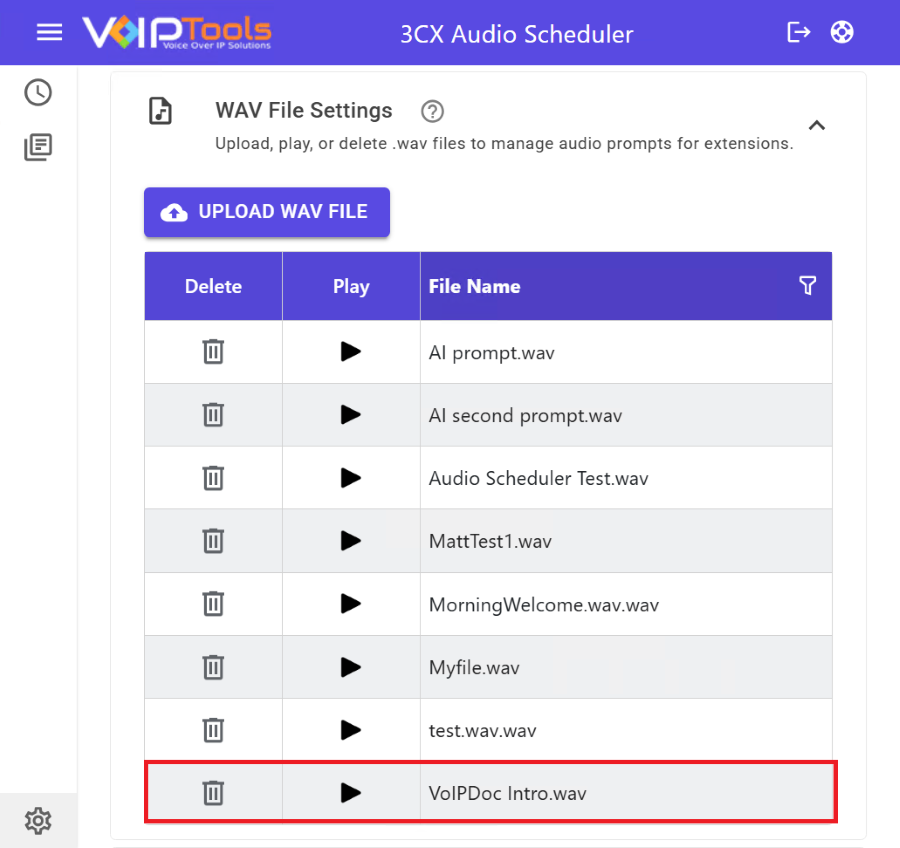

Wave File SettingsIn the .WAV File Settings tab you can upload the audio files from your local device.

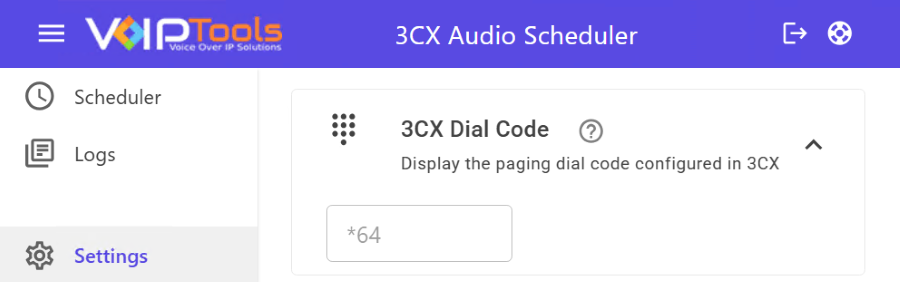

3CX Dial Code SettingsThe Paging Dial Code lets your phone auto-answer, provided it is correctly provisioned in the 3CX Console Management.

Resource Settings #

The Resource Settings tab lets you to add resources and assign audio files to the resources. Before you proceed you must add audio files either with 3CX Audio Scheduler’s inbuilt TTS software or you can upload audio files from your device.

  1. Expand the Resource Settings tab and click the Add button to add the resource.
Figure 28: Resource Settings – Add Resource Button
  1. In the Resource Name field enter the name for your resource.
  2. In the Extension dropdown, select the extension.
  3. In the File Name dropdown, select the audio file you want to assign to the resource. You can either upload the audio file from your device or create a new audio file TTS.
Figure 29: Details of the Resource
  1. Select the Dial Code box to automatically receive the incoming calls or unselect it to manually receive the incoming calls.
Figure 30: Dial Code Checkbox

NOTE:

The Dial Code feature applies only to normal extensions. For paging extensions, incoming calls are always auto-answered, even if you deselect the Dial Code checkbox. For ring groups, you must manually answer incoming calls, as the auto-answer feature does not work, even if you select the Dial Code checkbox.

Extension TypeDial Code Checkbox SelectedAuto Answer Feature
Normal ExtensionsYesAuto answer is enabled.
Normal ExtensionsNoManual answer is required.
Paging ExtensionsYes/NoAlways auto answered
Ring GroupsYes/NoAlways manual answer required

TTS Settings #

The TTS tab lets you create audio files that can be assigned to your resources.

Create New TTS #

Follow the procedure to create a new TTS audio file,

  1. Expand the TTS tab.
  2. Select the language from the Culture dropdown.
  3. Select the voice from the Voice dropdown.
  4. Enter a file name for the audio file in the File Name field.
  5. Enter the text that you want to convert to speech in the Text To Speech text box.
Figure 31: TTS Menu
  1. Click the Save button to save your audio file.
Figure 32: TTS Save Successful Popup

View the TTS #

You can click the Play button to view the generated audio file.

Figure 33: Play Audio File – Overview
Play buttonTo play or pause the audio
Volume buttonTo increase or decrease the volume of the audio.
Advances Settings buttonTo increase the playback speed or download the audio file.
Zoom sliderTo zoom into the audio file.

Increase the Playback Speed of TTS Audio File #

Follow the procedure to increase the playback speed,

  1. Click the Play button of the audio file to view the audio file.
  2. Click to expand the Advanced Settings option.
Figure 34: Edit Playback Speed
  1. Select the Playback Speed option and set the desired speed of your .WAV file.
Figure 35: Playback Speed Options

Open AI Settings #

The AI Configuration and Text-to-Speech Open AI features allow you to connect to the OpenAI API, generate custom audio from text, and adjust settings like voice, model, and speech speed. You can save, play, and download the generated audio, with tools to fine-tune and view the waveform in detail.

Open AI API Integration: #

  1. Click to expand the AI Configuration section.
Figure 36: AI Configuration Section Dropdown
  1. Enter your AI model in the Open AI API Model field.
  2. Enter the URL endpoint for the OpenAI API in the OpenAI API Base Adress field.
  3. Enter the unique key used for authenticating requests in the OpenAI API Key field.
Figure 37: Open API Credentials
  1. Click the Test button to ensure both fields are correctly filled to enable proper API integration and functionality.
Figure 38: Open API Authorization Success Popup

Configure Open API TTS Settings #

  1. Click to expand the Text To Speech Open API section.
Figure 39: Text-To-Speech Open AI Section Dropdown
  1. Select the desired voice in the Voice dropdown.
Figure 40: Voice Dropdown
  1. Select the desired voice model to process the text input in the Model dropdown.
Figure 41: Voice Model Dropdown
  1. Select the desired speed of speech for the audio in the Speed dropdown.
Figure 42: Voice Speed Dropdown
  1. Enter the name of this TTS file in the File Name field.
    • File Name is mandatory to generate the TTS file.
Figure 43: File Name Field
  1. Enter the text you want to convert to speech in the field provided.
    • You can enter maximum of 4069 characters.
Figure 44: Text Field
  1. Click the Generate button to generate the audio file.
Figure 45: AI Audio Generated Popup

You can either download or play the audio file using our built-in audio player.

Figure 46: AI Audio Download and Play Options

.WAV File Settings #

In the .WAV File Settings tab you can upload the audio files from your local device.

Upload a .WAV File #

Follow the procedure to upload audio files from your device,

  1. Click to expand the .WAV File Settings tab.
  2. Click the Upload WAV File button to open the File Upload window.
Figure 47: Upload WAV File Button
  1. Double-click your audio file or select the audio file and click the Open button to upload the audio file.
Figure 48: Upload WAV File

You can view the uploaded file.

Figure 49: WAV File Uploaded

Delete .WAV File #

Follow the procedure to delete the audio file. The audio file deleted cannot be recovered.

  1. Click the Delete button to delete the .WAV file.
Figure 50: Delete WAV File Button
  1. Click the OK button in the Confirm Deletion popup to confirm your deletion.
Figure 51: Delete WAV File Confirmation Box

3CX Dial Code #

The Paging Dial Code lets your phone auto-answer, provided it is correctly provisioned in the 3CX Console Management.

Figure 52: 3CX Page Dial Code Menu

Scheduler Menu #

The Scheduler menu lets you schedule appointments new appointments or delete and edit the existing appointments

Overview #

Figure 53: Scheduler Menu – Overview
Date Selection toolTo select the date to display.
Resources dropdownTo select the resources to schedule the appointment.
Display optionView the appointments in different ways to ease your work.

Date Selection #

The Date Selection tool lets you select the date at which you want to view or modify appointments.

Tool IconTool NameTool Purpose
Today buttonJumps to the present date.
Previous Day buttonIt displays the day before the date you are viewing.
Next Day buttonIt displays the day after the date you are viewing.
Calendar dropdownIt displays a calendar to let you select the date.

Resource Dropdown #

The Resource dropdown lets you select the resource for scheduling appointments.

Figure 54: Resource Dropdown

Display Options #

This feature offers enhanced flexibility and efficiency by allowing customized views. Whether a detailed daily schedule or a monthly overview is required, the various display formats facilitate improved time management, planning, and productivity. You can view the display area in multiple formats: Day, Week, Work Week, Month, and Timeline views.

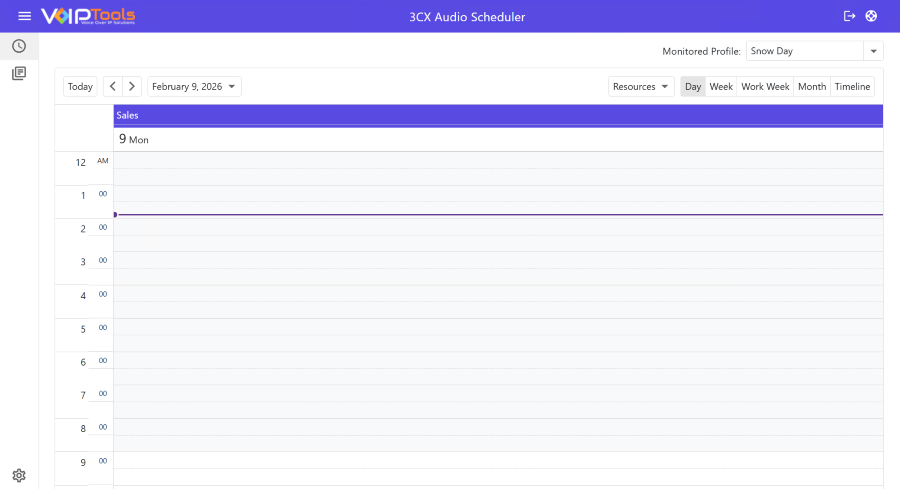

Display Type – Daily: #
Figure 55: Display Type – Daily
Display Type – Weekly: #
Figure 56: Display Type – Weekly
Display Type – Monthly: #
Figure 57: Display Type – Monthly
Display Type – Workweek: #
Figure 58: Display Type – Workweek

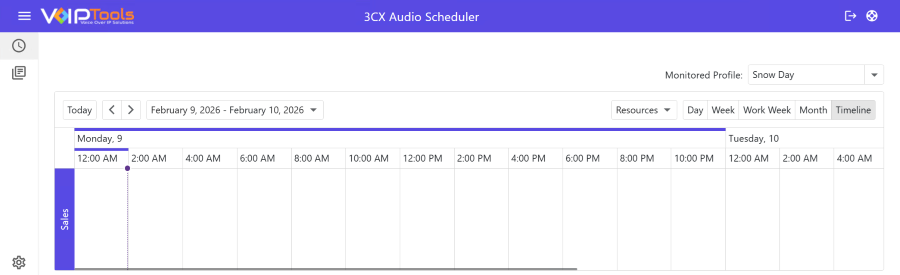

Display Type – Timeline: #
Figure 59: Display Type – Timeline

Add Appointment #

Add Simple Appointments #

Follow the procedure to add an appointment,

  1. Select the display type using the Display Option tool.
  2. Click any day or date in the display to open the Add Appointment popup.
Figure 60: Simple Appointment Box

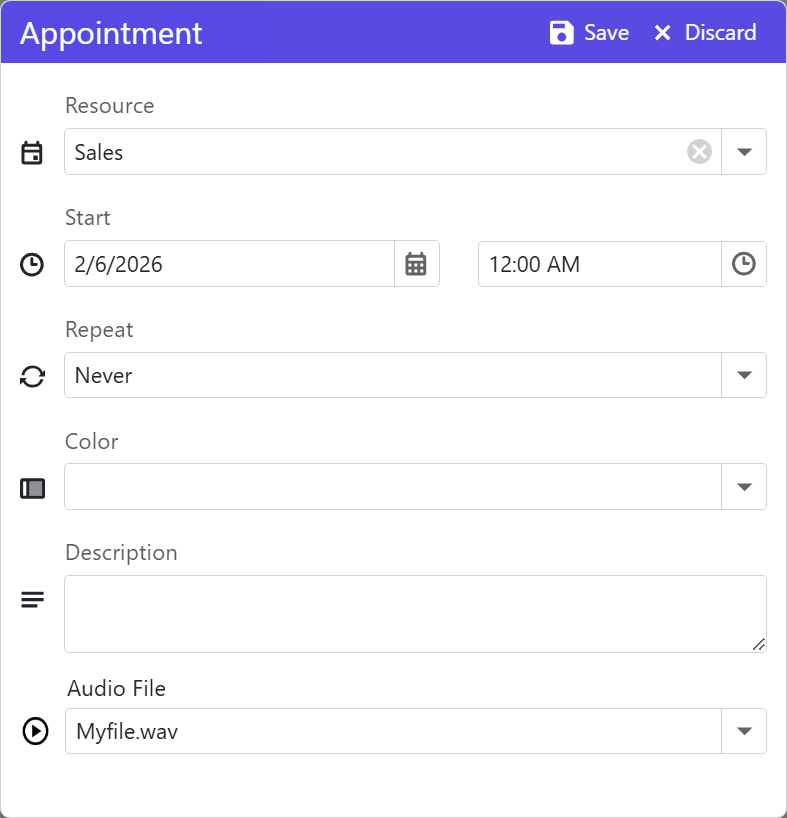

  1. Enter the appointment details and click the Save button to save the appointment or click the Advanced Appointments button to further edit the appointment.
Figure 61: Basic Details of the Appointment

Add Advanced Appointments #

Follow the procedure to add more advanced appointments,

  1. Click any day or date in the display to open the Add Appointment popup.
  2. click the Advanced Appointments button to further edit the appointment.
Figure 62: Advance Appointment Button
  1. Enter the appointment details and click the Save button to save the appointment.
Figure 63: Advanced Appointment Details
SUBJECTBrief description of the appointment
ALL DAY TOGGLE If the schedule is for the complete day, then check the All-day event box. If you check this box, you will observe that the time selection box (from ‘Start time’) will disappear.
START TIMEThe date and time from which the ‘On Call’ time starts for the agent
END TIMEThe date and time at which the ‘On Call’ time ends for the agent
RECURRENCEIf you want the appointment to recur, check the Recurrence box. From the available options select the appropriate value (Daily, Weekly, Monthly, Yearly, Every—day(s) or Every weekday) for the appointment to recur.
LOCATIONLocation of the agent for whom you are creating the appointment
LABELYou can label the appointments using different colors.
STATUSSpecifies the work status of the agent as busy, free, tentative, out of the office or working elsewhere. Show time as is valid for Start time to End time
RESOURCE DROPDOWNSelect the agent from the dropdown for whom you are creating the appointment.
DESCRIPTIONA short description of the scheduled appointment.

Recurring Appointment #

Recurring Appointments feature streamlines scheduling by automating repetitive appointments, saving time, reducing errors, and ensuring consistent and timely engagement for daily, weekly, monthly, or yearly events.

Recurring Appointment – Daily #

To set daily occurrences, follow the steps,

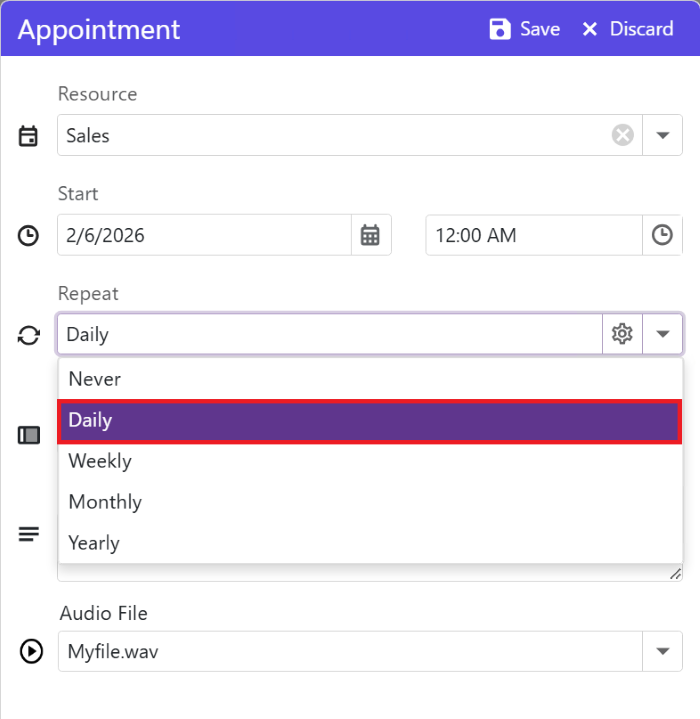

  1. In the Repeat box, select the Daily option to schedule a daily recurring appointment.
Figure 64: Repeat Dropdown – Daily
  1. Select the start date to start the daily recurring appointments.
Figure 65: Repeat Daily – Start Date

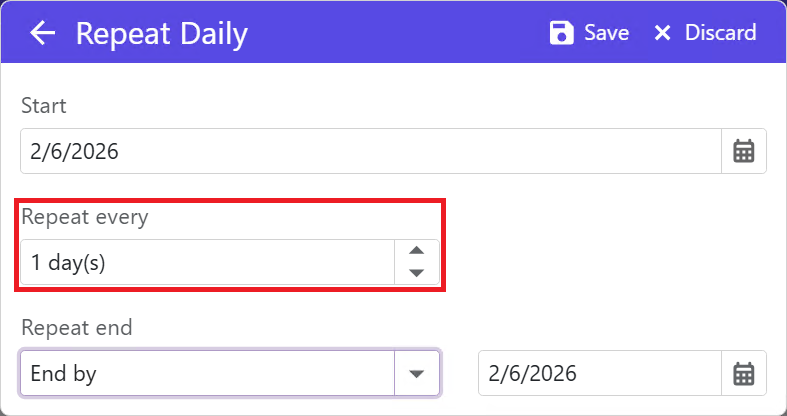

  1. In the Repeat Every field enter the number of times you want the appointments to repeat.
Figure 66: Daily Recurrence Repeat Frequency
  1. Set the end of the daily occurrence in any of the following ways and click the Save button to save the recurring appointment.

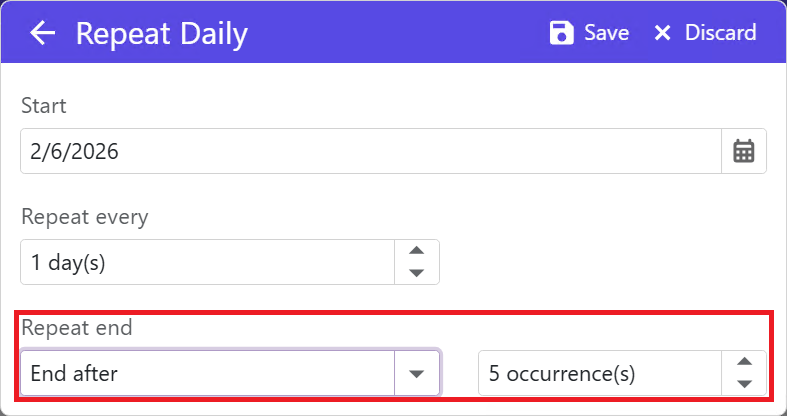

To end the daily recurrence after a specific number of occurrences, follow these steps:

  1. In the Repeat End dropdown, select the End After option.
  2. In the Occurrences field, set the number of occurrences.
Figure 67: End Daily Recurrence – After Specified Occurrence

For example, to end the daily recurring appointments after 5 occurrences, do the following,

  1. Select the End After option in the Report End dropdown.
  2. Select 5 Occurrence(s) in the Occurrences field.

NOTE:

Five occurrences means from start to upcoming 5 days.

To end the daily recurrence after a specified date, follow the steps,

  1. In the Repeat End dropdown, select the End After option.
  2. In the Date field, select the date (in the format dd/mm/yyyy) after which you want the recurring appointments to end.
Figure 68: End Daily Recurrence – After Specified Date

For example, to end the daily recurring appointments after January 8, 2024, do the following,

  1. Select the End By option in the Report End dropdown.
  2. Select 8/1/2024 in the Date field.

The following is an example of daily recurring appointment that repeats after every two days and ends after five occurrences.

Figure 69: Daily Recurring Appointment – Example

Recurring Appointment – Weekly #

To set weekly occurrences, follow the steps,

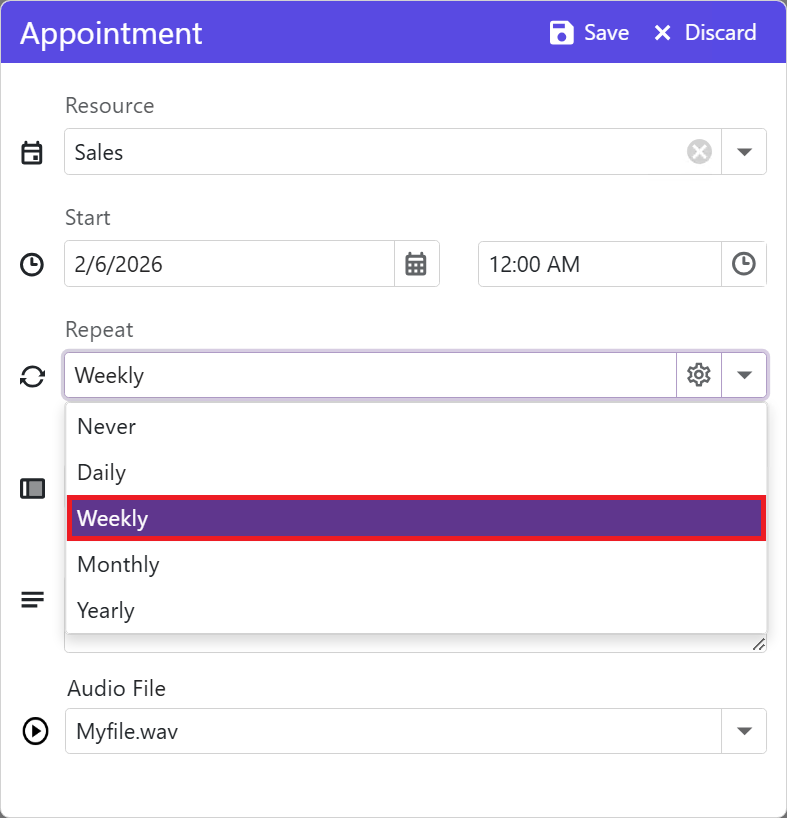

  1. In the Repeat dropdown, select the Weekly option to schedule a weekly recurring appointment.
Figure 70: Repeat Dropdown – Weekly
  1. Select the start date to start the weekly recurring appointments.
Figure 71: Repeat Weekly – Start Date

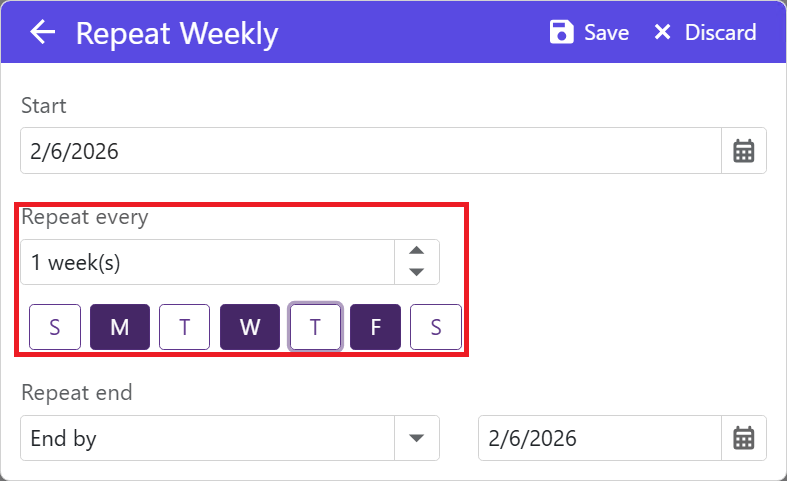

  1. In the Repeat Every section,
    1. Select the number of weeks you want to appointment to repeat.
    2. Select the days on which you want to appointment to repeat.
Figure 72: Weekly Repeat Frequency
  1. Set the end of the weekly recurrence in any of the following ways and click the Save button to save the recurring appointment.

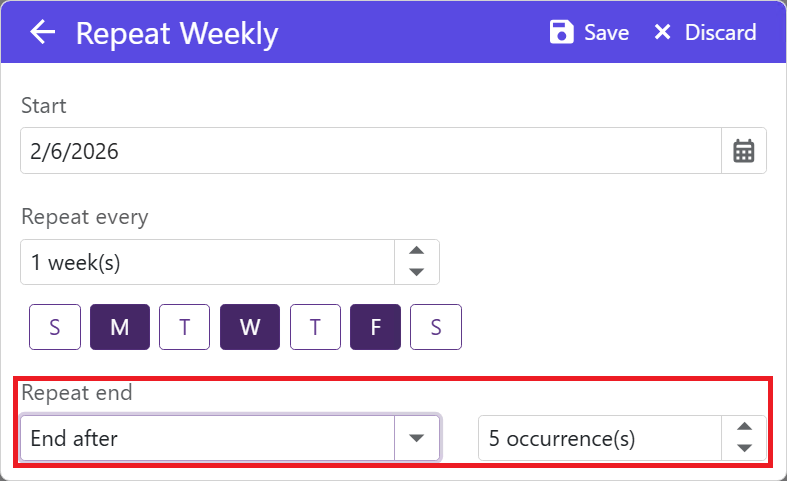

To end the weekly recurrence after a specific number of occurrences, follow these steps:

  1. In the Repeat End dropdown, select the End After option.
  2. In the Occurrences field, set the number of occurrences.
Figure 73: End Weekly Recurrence – After Specified Occurrence

For example, to end the weekly recurring appointments after 5 occurrences, do the following,

  1. Select the End After option in the Report End dropdown.
  2. Select 5 Occurrence(s) in the Occurrences field,

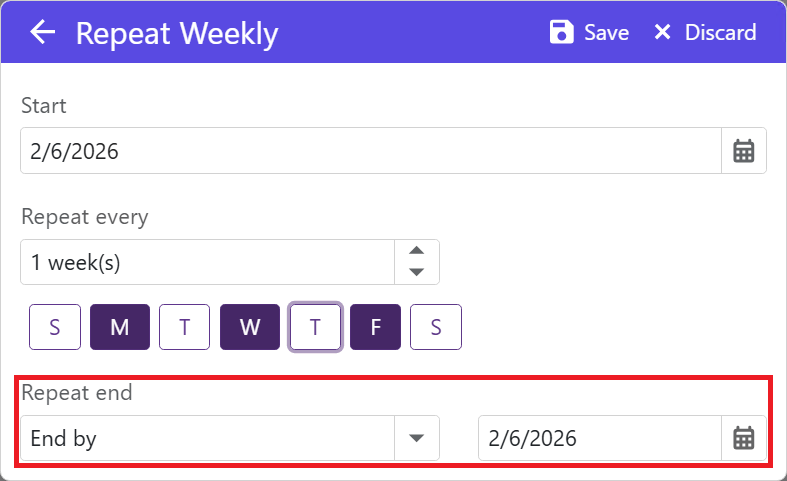

To end the weekly recurrence after a specified date, follow the steps,

  1. In the Repeat End dropdown, select the End After option.
  2. In the Date field, select the date (in the format dd/mm/yyyy) after which you want the recurring appointments to end.
Figure 74: End Weekly Recurrence – After Specified Date

For example, to end the weekly recurring appointments after July 17, 2024, do the following,

  1. Select the End By option in the Report End dropdown.
  2. Select 7/17/2024 in the Date field.

The following example is a weekly recurring appointment that repeats on Monday and Thursday of every week and ends after 5 occurrences.

Figure 75: Weekly Recurring Appointments – Example

Recurring Appointment – Monthly #

To set monthly occurrences, follow the steps,

  1. In the Repeat dropdown, select the Monthly option to schedule a monthly recurring appointment.
Figure 76: Figure: Repeat Dropdown – Monthly

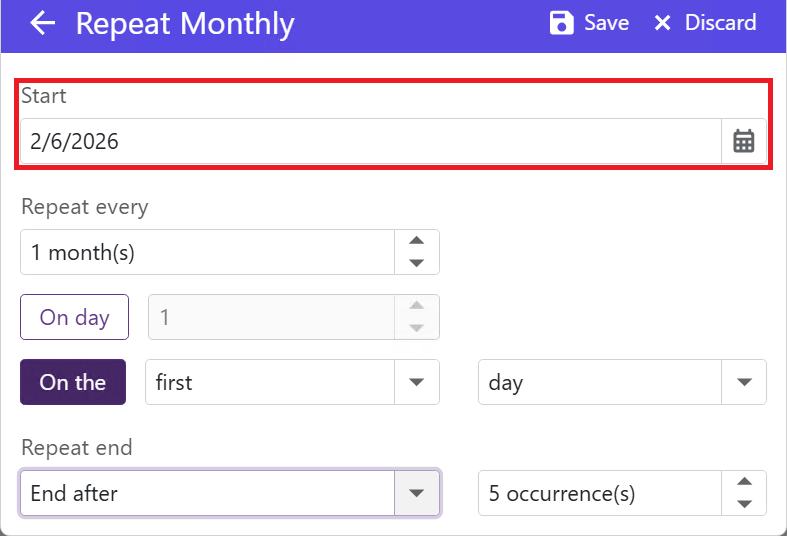

  1. Select the start date to start the monthly recurring appointments.
Figure 77: Repeat Monthly – Start Date

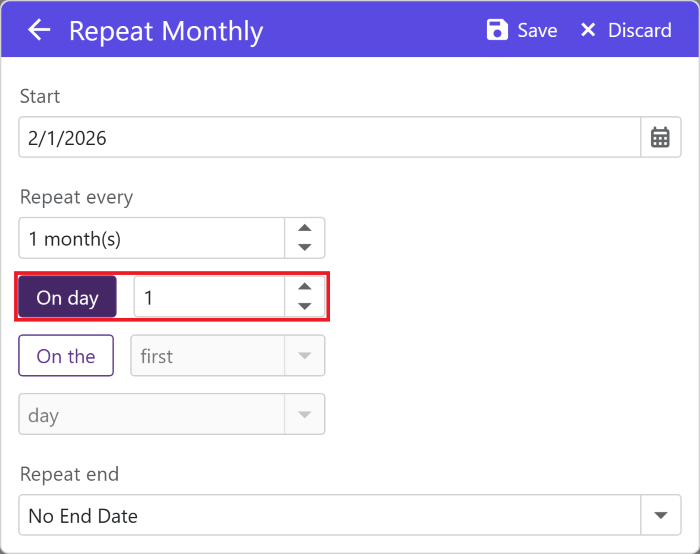

  1. In the Repeat Every section enter the number of months you want the appointments to repeat and do the following,
  • In the On Day field enter the day number at which you want the appointment to schedule on specified months.
Figure 78: Monthly Repeat Frequency – On Particular Date

For example, to schedule a recurring appointment on 12th of every month,

  1. Enter 1 month(s) in the Repeat Every field.
  2. Enter 12 in the On Day field.

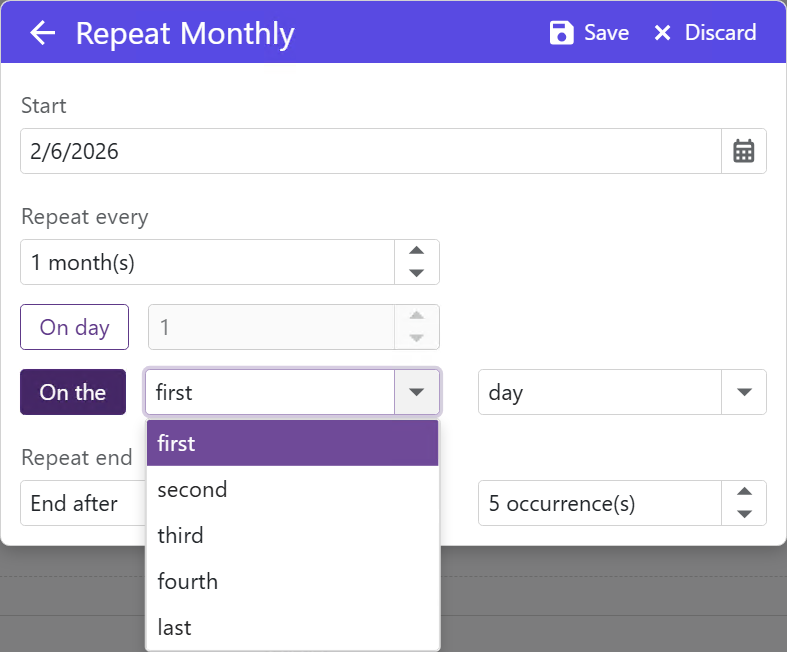

  1. In the On The dropdown, select the day number.
Figure 79: Monthly Repeat Frequency – On Particular Day – Day Number Dropdown

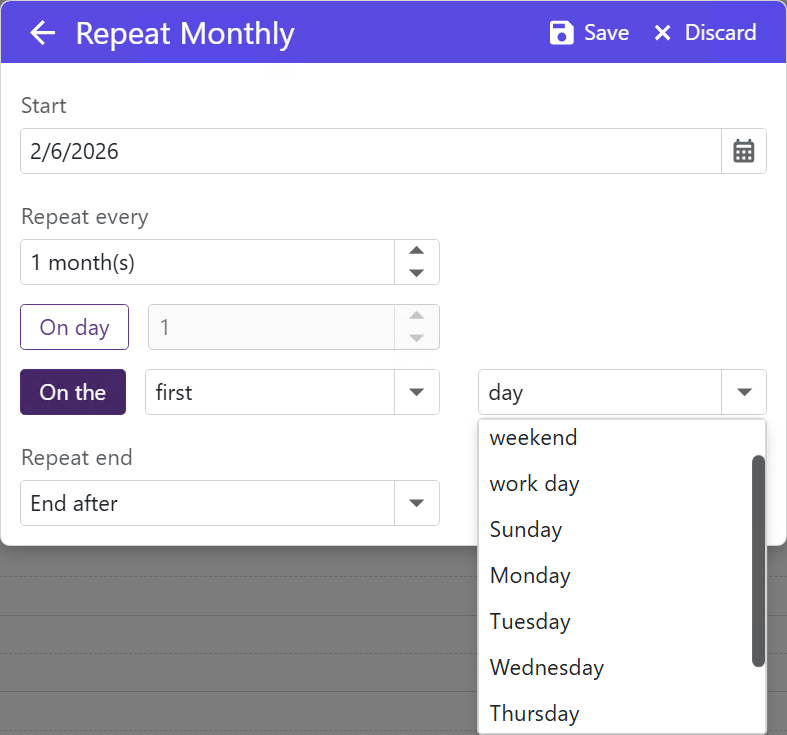

  1. In the Day field, select the day.
Figure 80: Monthly Repeat Frequency – On Particular Day – Day Dropdown

For example, to schedule a recurring appointment on the second workday of every month do the following,

  1. Enter 1 month(s) in the Repeat Every field.
  2. In the On The field select the Second option.
  3. In Day field, select the Workday option.

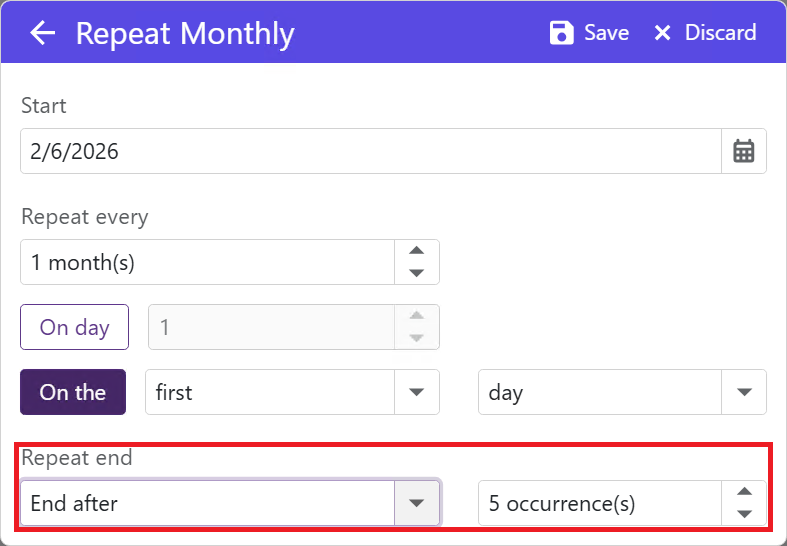

  1. Set the end of the monthly recurrence in any of the following ways and click the Save button to save the recurring appointment.

To end the monthly recurrence after a specific number of occurrences, follow these steps:

  1. In the Repeat End dropdown, select the End After option.
  2. In the Occurrences field, set the number of occurrences.
Figure 81: End Monthly Recurrence – After Specified Occurrence

For example, to end the monthly recurring appointments after 5 occurrences, do the following,

  1. Select the End After option in the Report End dropdown.
  2. Select 5 Occurrence(s) in the Occurrences field,

To end the monthly recurrence after a specified date, follow the steps,

  1. In the Repeat End dropdown, select the End After option.
  2. In the Date field, select the date (in the format dd/mm/yyyy) after which you want the recurring appointments to end.
Figure 82: End Weekly Recurrence – After Specified Date

For example, to end the monthly recurring appointments after July 17, 2024, do the following,

  1. Select the End By option in the Report End dropdown.
  2. Select 7/17/2024 in the Date field.

Recurring Appointment – Yearly #

To set monthly occurrences, follow the steps,

  1. In the Repeat dropdown, select the Monthly option to schedule a monthly recurring appointment.

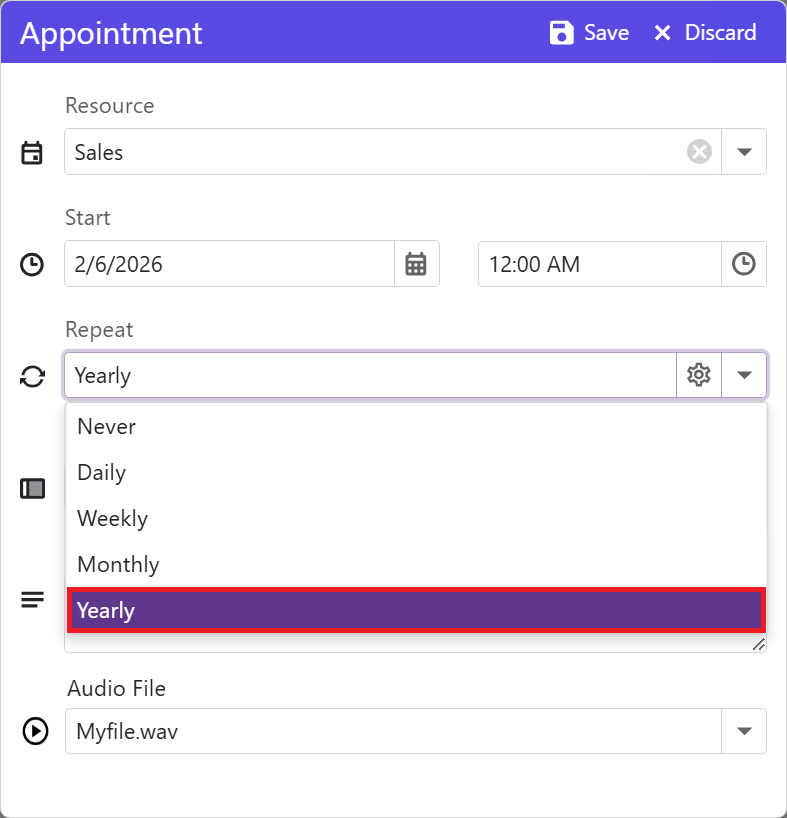

Figure 83: Figure: Repeat Dropdown – Yearly
  1. Select the start date to start the monthly recurring appointments.
Figure 84: Repeat Yearly – Start Date
  1. You can set the yearly recurrence of the appointment by any of the following ways,

Follow the procedure to schedule a yearly recurring appointment on a particular date of the year,

  1. In the ON dropdown, select the month.
  2. In the Date field, set the date of month.

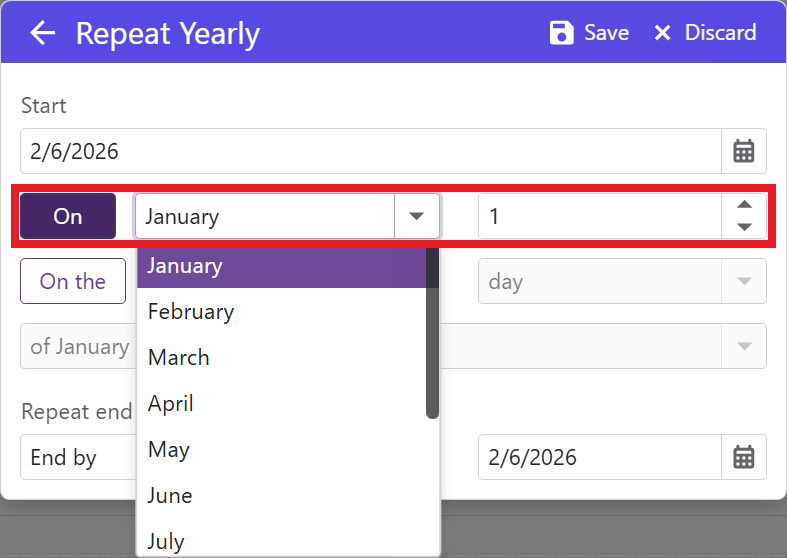

Figure 85: Yearly Repeat Frequency – On Particular Date

For example, to schedule a yearly recurring appointment that repeats on January 23 of every year, follow the procedure,

  1. In the ON dropdown, select the January option.
  2. In the Date field, set twenty-three.

Follow the procedure to schedule a yearly recurring appointment on a particular day of the year,

  1. In the ON The dropdown select the day number.
  2. In the Day dropdown, select the day.
  3. In the Month dropdown, select the month.

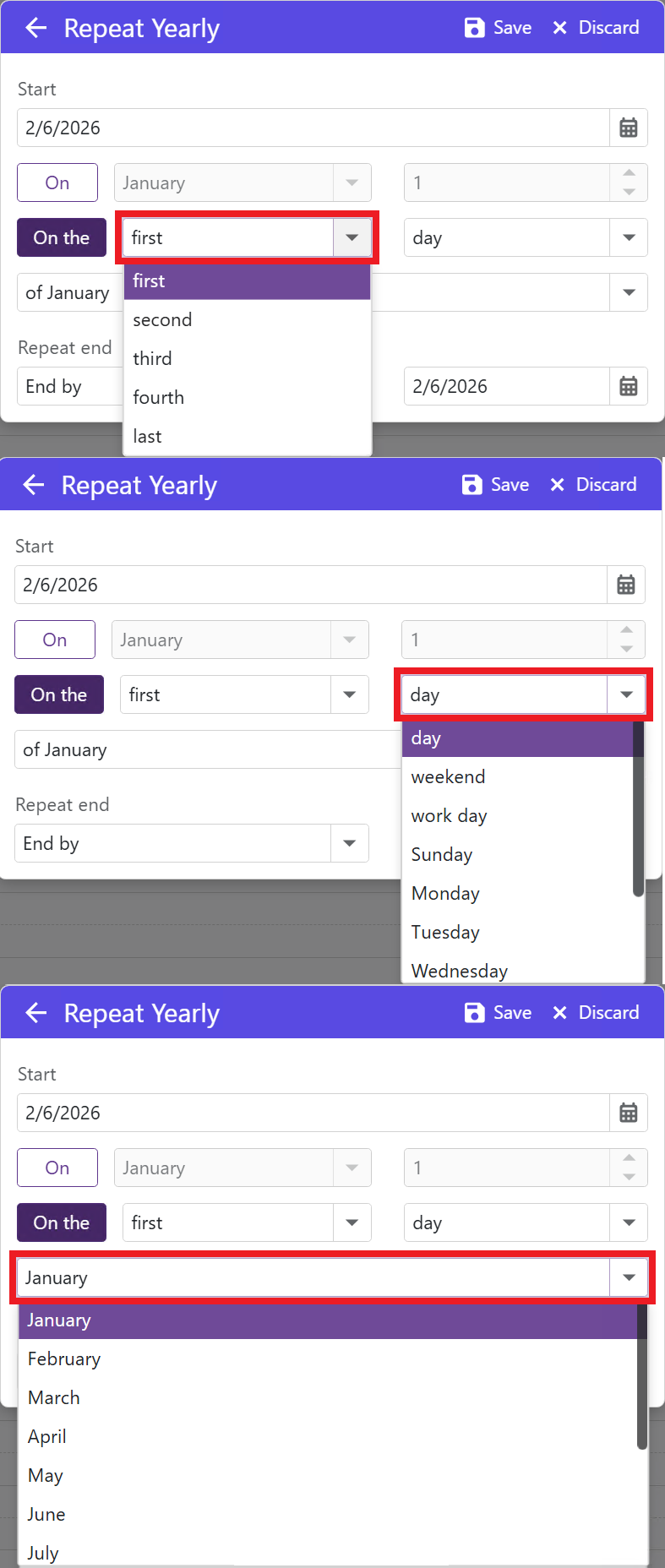

Figure 86: Monthly Repeat Frequency – On Particular Day

For example, to schedule a yearly recurring appointment that repeats on third workday of July every year, follow the procedure,

  1. In the ON The dropdown select Three option.
  2. In the Day dropdown, select the workday option.
  3. In the Month dropdown, select the July month.
  1. Set the end of the yearly recurrence in any of the following ways and click the Save button to save the recurring appointment.

To end the yearly recurrence after a specific number of occurrences, follow these steps:

  1. In the Repeat End dropdown, select the End After option.
  2. In the Occurrences field, set the number of occurrences.

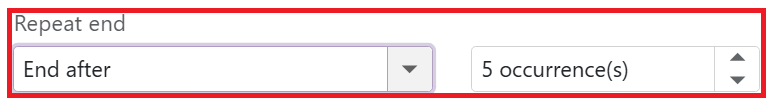

Figure 87: End Yearly Recurrence – After Specified Occurrence

For example, to end the yearly recurring appointments after 5 occurrences, do the following,

  1. Select the End After option in the Report End dropdown.
  2. Select 5 Occurrence(s) in the Occurrences field,

To end the yearly recurrence after a specified date, follow the steps,

  1. In the Repeat End dropdown, select the End After option.
  2. In the Date field, select the date (in the format dd/mm/yyyy) after which you want the recurring appointments to end.
Figure 88: End Monthly Recurrence – After Specified Date

For example, to end the monthly recurring appointments after February 7, 2031, do the following,

  1. Select the End By option in the Report End dropdown.
  2. Select 7/2/2031 in the Date field.

Edit Appointment #

Follow the procedure to edit the scheduled appointments,

  1. Click the scheduled appointment to open the View Appointment popup and click the Edit Appointment button.
Figure 89: Edit Appointment Icon
  1. In the Edit Appointment Type popup,
    • Click the Edit Appointment option to edit only one appointment.
    • Click the Edit Series option to edit all the recurring appointments.

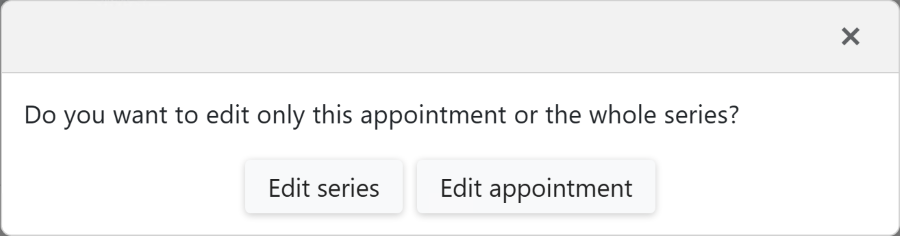

Figure 90: Edit Appointment Type Popup
  1. In the Edit Appointment popup, make the necessary changes and click the Save button to save your changes.

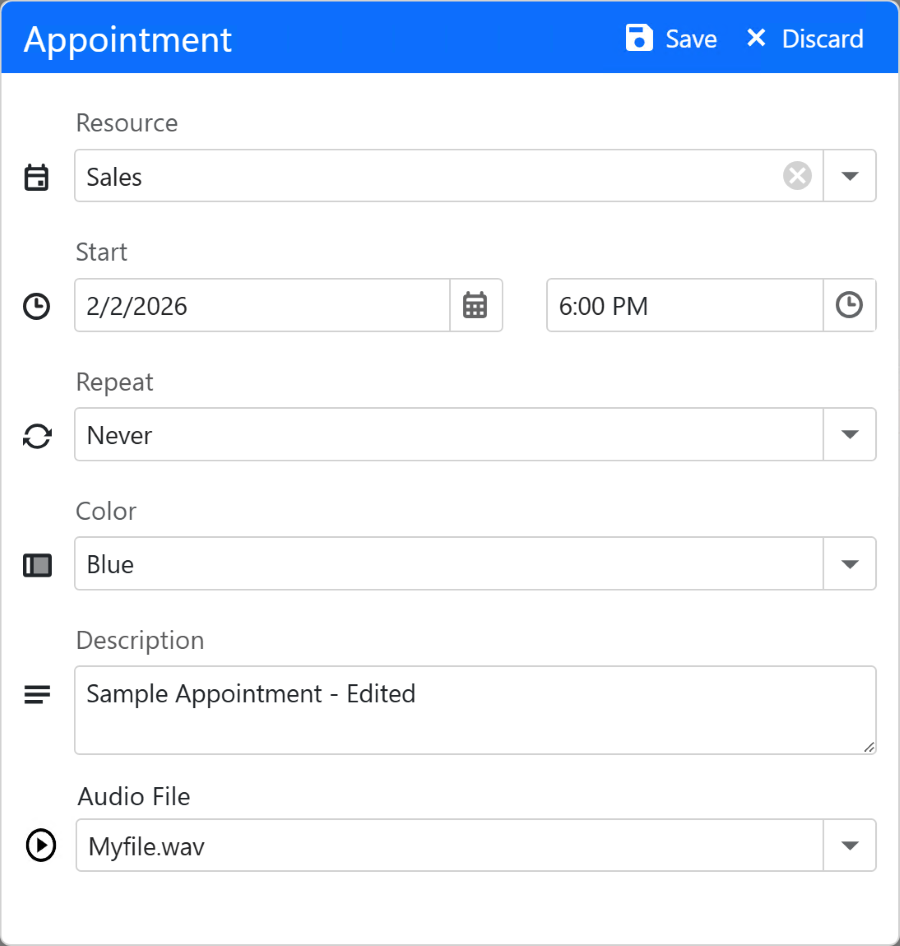

Figure 91: Edit Appointment Popup

The following examples show how to edit a single appointment or all recurring appointments.

Example of editing only the appointment.

Figure 92: Edit Appointment Only Example

Example of editing all the recurring appointments.

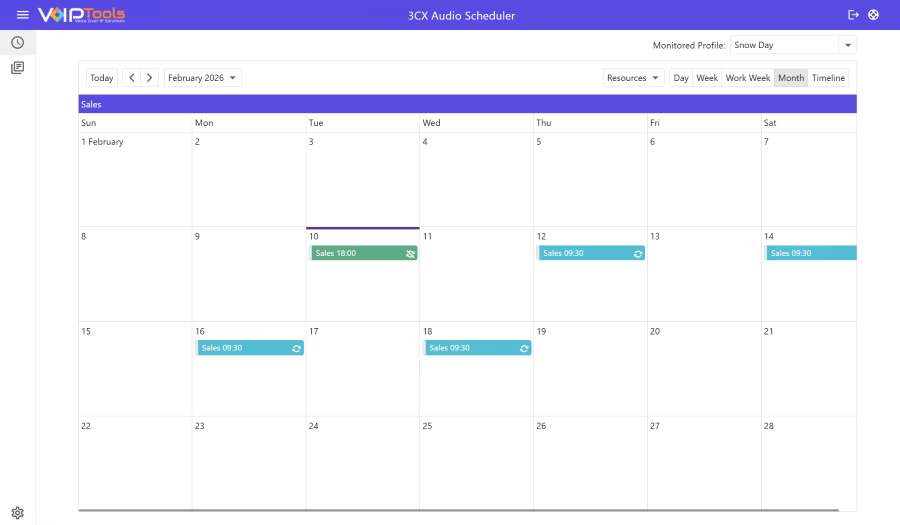

Figure 93: Edit the Entire Recurring Appointment -Example

Delete Appointment #

Follow the procedure to edit the scheduled appointments,

  1. Click the scheduled appointment to open the View Appointment popup and click the Delete Appointment button.
Figure 94: Delete Appointment Icon
  1. In the Delete Appointment Type popup,
    • Click the Delete Appointment option to edit only one appointment.
    • Click the Delete Series option to edit all the recurring appointments.
Figure 95: Delete Appointment Type Popup

Site Settings Menu #

The Site Settings feature provides the advantage of comprehensive customization, allowing you to personalize the application’s branding. This includes adjusting the application header’s gradient color, grid color, logo, and header title prefix. These customizations enhance the user experience by aligning the application’s appearance with your company’s branding.

Customize Header Prefix #

  1. In the Header Title field, enter the text that you want the application to display as a ‘prefix’ for the existing title in the application header.
  2. Click the Apply button to save the header title prefix.
Figure 96: Header Prefix

Customize Logo #

If you are uploading the logo for the first time then, follow the procedure

  1. In the Custom Logo section, click the Browse button to choose a logo from your device.
Figure 97: Upload Logo – Browse Button
  1. Select the uploaded logo from the Select Logo dropdown list.
  2. Click the Apply  button to save your changes.
Figure 98: Select Logo Dropdown

If you have uploaded the logo previously, then follow the procedure,

  1. Select the uploaded logo from the Select Logo dropdown list.
  2. Click the Apply  button to save your changes.

Customize Header Gradient Color #

In the Header Color section do the following,

  1. Select the top color from the Top Color color palette.
Figure 99: Header Top Color Settings
  1. Select the bottom color from the Bottom Color palette.
  2. Click the Apply  button to Save the settings.
Figure 100: Header Bottom Color Settings

Customize Grid Color #

  1. From the Grid Color palette, select the color that you want to display for the grid in screens that display grid data
  2. Click the Apply button to save your settings.
Figure 101: Grid Color Settings

The final display of the web portal when all the changes are made,

Figure 102: Site Settings Final Output

Support Resources Page #

This tab provides you with essential support resources for the 3CX Audio Scheduler. It includes the version number (18.0.39), contact email, live chat link, and phone number. This information ensures you can access technical support and assistance whenever needed. For more details on VoIPTools Support click here.

Figure 103: Support Resources Screen

Need Support? #

You get quick answers to most of your inquiries in our online manual. If you prefer direct contact, we offer various support channels, including phone, email, live chat, and our helpful VoIPTools forums.

24/7 Support Availability #

Rest assured, our dedicated team is here to assist you around the clock, every day of the year. Whether you’re based in the USA or India, we’re ready to provide prompt responses to your technical queries.

Windows Event Log for VoIPTools Applications and Services #

For troubleshooting any application errors, our Windows Event Log contains a comprehensive list of error messages, warnings, and informative notes related to all our VoIPTools applications and services. It’s a valuable resource to help you pinpoint and resolve any issues you may encounter.

Join Our Forum Community #

Are you looking to collaborate with other VoIPTools customers facing similar challenges? Our forum is the perfect platform to exchange ideas, solutions, and best practices. Join the conversation at: https://www.voiptools.com/community/

Real-Time Live Chat Assistance #

Got questions that need immediate answers? Our chat support team is available to assist you in real time. Just click on the Live Chat button located at the lower right corner of our website, and we’ll acknowledge your queries right away.

Efficient Email Support #

To ensure a thorough understanding of your concerns, email us at support@voiptools.com. Describe your issue in detail, and we’ll get back to you within one business day with the support you need.

Reach Us by Phone #

If you prefer to speak with a representative directly, you can reach us at +1 801-642-4655. Our attentive team is available to take your calls from 8:00 AM to 6:00 PM (Central Standard Time).

Comprehensive support services: #

Free Support #

If you’ve purchased our products through a VoIPTools Partner, rest assured that they provide first-level support at no additional cost. Partners have access to 100% free technical assistance and actively participate in the troubleshooting process.

VoIPTools customers enjoy access to our online manuals and receive support through emails (with responses within one business day) and live chat. However, please note that we do not provide remote server login assistance.

Paid Support #

For a more hands-on experience, consider our “Installation Support” package. Our expert support team can log in to your servers, and install and configure all our tools. This comprehensive service includes setting up SQL Server Express and Internet Information Server if necessary. We’ll work closely with you to tailor our applications to meet your requirements.

We’re committed to providing top-notch support to ensure your VoIPTools experience is smooth and hassle-free. Contact us today, and let us assist you in making the most of our powerful tools!

What are your Feelings
Still stuck? How can we help?

How can we help?

Updated on November 26, 2024

Powered by BetterDocs

Table of Contents
  • Introduction
    • Why 3CX Audio Scheduler?
    • What’s New?
  • Prerequisites
  • Installation overview
  • Step By Step Installation Procedure
    • Step 1:  Download ‘3CX Holiday Importer’.
    • Step 2:  Install Prerequisites
    • Step 3: Install 3CX Audio Scheduler
    • Step 4: Test Relay Settings
    • Step 5: Configure the database
      • SQL Authentication
      • Windows Integrated Authentication
    • Step 6: Installing 3CX Audio Scheduler
    • Step 7: Login to the Web Application
  • 3CX Audio Scheduler Web Portal
    • Application Overview
      • Left Side Panel
    • Settings Menu
      • Resource Settings
      • TTS Settings
        • Create New TTS
        • View the TTS
        • Increase the Playback Speed of TTS Audio File
      • Open AI Settings
        • Open AI API Integration:
        • Configure Open API TTS Settings
      • .WAV File Settings
        • Upload a .WAV File
        • Delete .WAV File
      • 3CX Dial Code
    • Scheduler Menu
      • Overview
        • Date Selection
        • Resource Dropdown
        • Display Options
          • Display Type - Daily:
          • Display Type - Weekly:
          • Display Type - Monthly:
          • Display Type - Workweek:
          • Display Type - Timeline:
      • Add Appointment
        • Add Simple Appointments
        • Add Advanced Appointments
      • Recurring Appointment
        • Recurring Appointment - Daily
        • Recurring Appointment - Weekly
        • Recurring Appointment - Monthly
        • Recurring Appointment - Yearly
      • Edit Appointment
      • Delete Appointment
    • Site Settings Menu
      • Customize Header Prefix
        • Customize Logo
      • Customize Header Gradient Color
      • Customize Grid Color
    • Support Resources Page
Logo - 3CX Platinum Partner
Logo - 3CX Advanced Certified

Navigation

  • Tools
  • Subscribe
  • Contact
  • Support
  • Product Downloads
  • Product Manuals
  • My Account
  • Partner Sign Up

Contact Us

  • Support@VoIPTools.com
  • Billing@VoIPTools.com
  • Live Chat
  • +1 801 642 4655
  • 4464 Glenwillow Dr. Batavia, OH 45103
Logo - 3CX Platinum Partner
Logo - 3CX Advanced Certified

COPYRIGHT © 2024 VOIPTOOLS. ALL RIGHTS RESERVED | PRIVACY | TERMS OF USE

Cleantalk Pixel
