Introduction #

Every organization strives to offer better service to its customers. 3CX Survey Creator enables you to collect information that identifies how your customers feel about the services offered by your organization through phone surveys. This information will enable you to identify areas where your organization can improve, increase the quality of services that you provide, and measure the effectiveness of individual staff members.

What is 3CX Survey Creator? #

3CX Survey Creator creates phone based automated surveys. Through a web based application you create Surveys and associate them with a specialized Digital Receptionist (IVR). To take a survey, the caller is transferred to a 3CX Digital Receptionist where a series of questions are asked and the caller’s responses are saved in a SQL database.

Why 3CX Survey Creator? #

1. To survey callers regarding the quality of service provided by your organization.

2. To analyze the caller’s responses and make informed decisions.

How to use 3CX Survey Creator? #

To create a survey, you need to log into the 3CX Survey Creator web portal as an admin. There you can create questions, group questions into surveys, and associate a survey with a specific extension within 3CX. With Survey Creator you can create an extensive library of surveys, and easily modify existing surveys to further refine the information you collect. As an agent, you can transfer a customer’s call to a survey. Once the customer participates in the survey and exits from the call, the survey results can be viewed by the admin.

Prerequisites #

Before installing 3CX Survey Creator, you need to ensure that your computer meets the minimum requirements mentioned below:

1. 3CX Version V16 and V18 (Professional or Enterprise Version Only)

2. Windows 10 or above / Windows Server 2012 (64 bit) or above

3. Microsoft SQL Server 2014 or above (Including the free SQL Express edition)

4. Microsoft .Net 4.7.2

5. VoIPTools’ 3CX Relay Service installed on the 3CX server

6. Microsoft Internet Information Server (IIS) 7.0 or above

7. Installation on a domain controller may require additional assistance

NOTE:

• Since the add-on ‘3CX Survey Creator ’ includes a CFD application, you will need to install either Pro or Enterprise version of 3CX

• When installing SQL Server, we recommend you install it in “Mixed Mode” to include SQL Authentication, and install SQL Management Studio

• When installing IIS, be sure to install Basic Authentication, .Net Extensibility, and ASP.Net 4.X

Installation #

Download software

You can order 3CX Survey Creator on-line at https://www.voiptools.com.  Your order confirmation email will include your license key and a link to download the software.

Install Prerequisites

There are a number of prerequisites that must be installed prior to installing 3CX Survey Creator. These prerequisites include Microsoft Internet Information Server (IIS) and Microsoft SQL Server

Install 3CX Survey Creator

This User Guide contains step-by-step instructions to successfully install 3CX Survey Creator. Begin by extracting the installer from the downloaded zip file (Step 1 above), then run the setup program named 3CXSurveyCreatorInstaller.exe

Register your License Key

You must register your license key to activate 3CX Survey Creator. Your license key is included in your order confirmation email, and can also be found in your order history on our website.

Step by Step Installation Procedure #

The following section guides you through a detailed walk-through of the installation process.

Step 1: Download 3CX Survey Creator #

1. Find the software download link in the Order Confirmation Email, or you can find it in your order history on our website and download the 3CX Survey Creator application.
2. In the Microsoft Defender SmartScreen, click the More Info option.

1. Click the Run Anyway option to start the installation.

Step 2: Install the Prerequisites #

Click on the software installer downloaded in Step 1. The installation wizard will automatically identify the prerequisites and assist you with each installation required to 3CX Survey Creator. It includes .NET Framework (Web Installer), SQL Server Express (Web Installer), and SQL Server Management Studio.

1. Click the downloaded installer executable to launch the Prerequisites Setup Wizard and click Next.

2. In the Prerequisites window, install all the required prerequisites identified by the installer, or select/ unselect the applications based on your requirements and click Next to continue.

The installer will download and install the selected applications. It may take several minutes to complete.

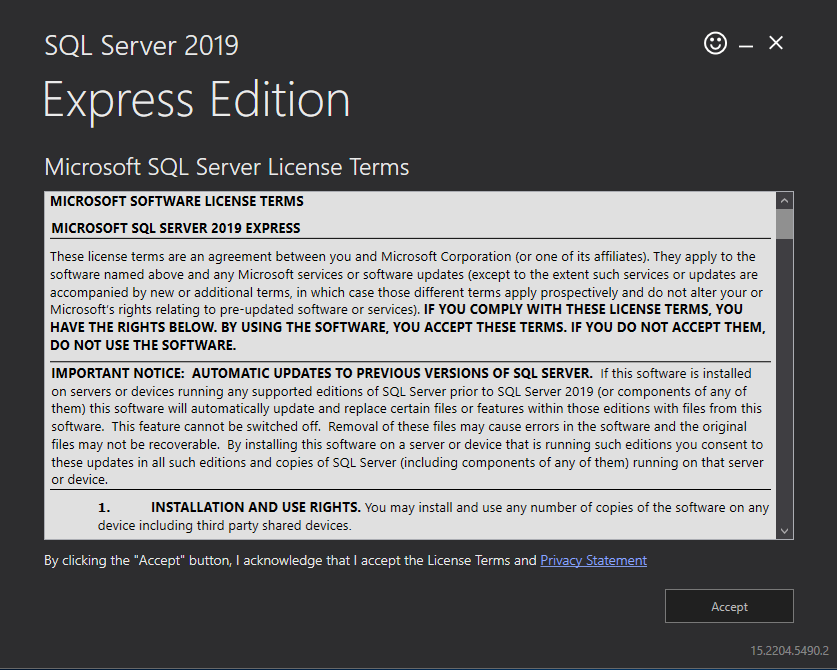

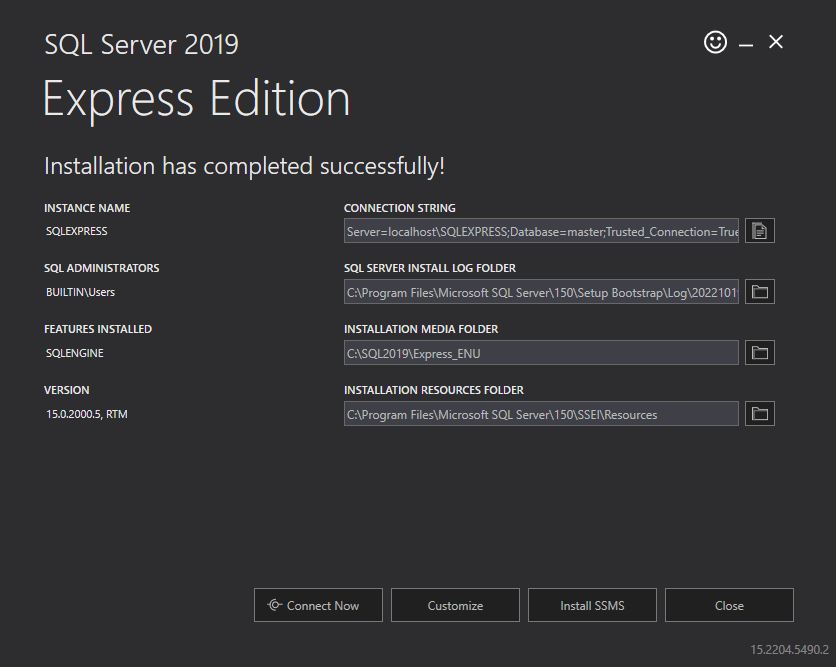

3. The Microsoft SQL Server License Terms page gets displayed if you install SQL Server Express. Click Accept to acknowledge the license terms and continue.

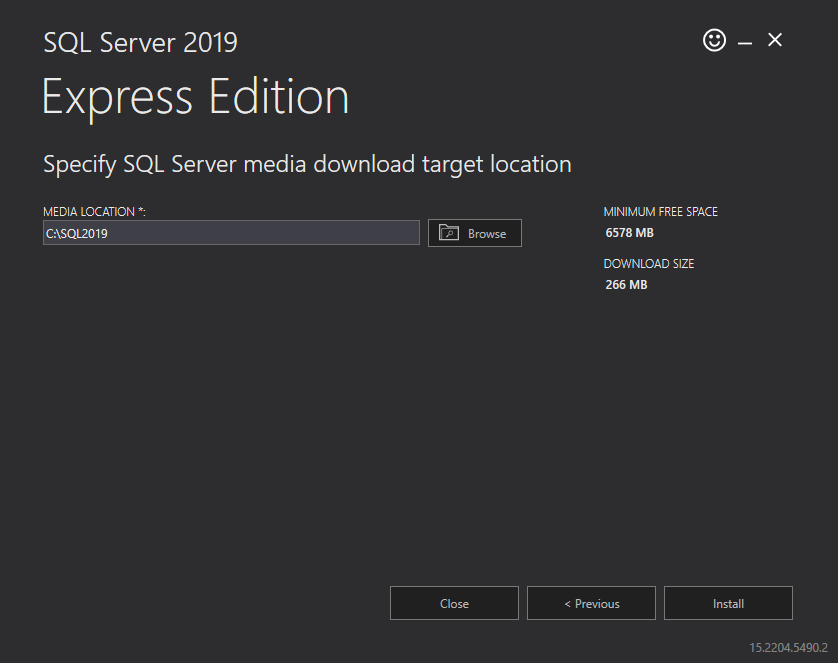

4. In the Media Location field, browse to change the location and click Install to begin the installation of SQL Server Express.

5. Click Close when you install the prerequisites.

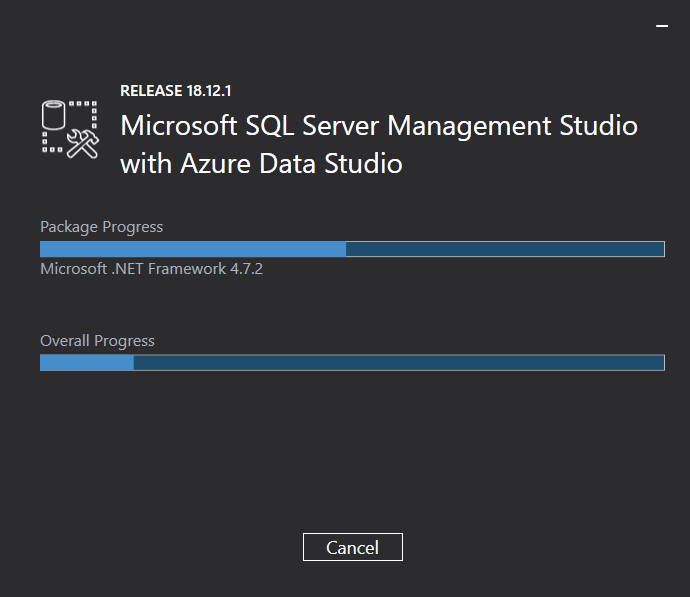

Installation is in progress. It may take several minutes to complete the installation.

6. Click Yes in the Confirmation Message Box to reboot the computer.

Figure 10: Reboot confirmation message box

Step 3: Start the installation process #

1. Click Next on the 3CX Survey Creator Setup Wizard screen.

2. On the Select Installation Folder window, the Folder field displays the path where the 3CX Survey Creator gets installed. You cannot change the location path.
3. Click Next to continue

Step 4: Test Relay Settings #

1. In the 3CX Relay Services window, in the Relay Host field, enter the IP address or FQDN of your 3CX server.
2. Enter 8801 in the Relay Port field.
3. Enter the public key you took from VoIPTools Relay services in the Public Key text area.

1. Click the Test Relay Settings to confirm ‘3CX Survey Creator’ can communicate with the Relay services running on the 3CX server.
2. If the ‘3CX Survey Creator’ is successfully able to communicate with the Relay services that run on the 3CX server, a Success message box appears. Click OK. If the test fails, you will not be able to continue until communication with the relay is established.

3. Click Next to continue with the installation.

NOTE:

• You must set the Relay Port to 8801.
• If the test was unsuccessful:
  • Confirm you have the correct firewall port open (default TCP 8801) on the 3CX server and the firewall protecting the 3CX server.
  • Confirm that you have entered the correct IP address / FQDN for the 3CX server.
  • Confirm that the 3CX Survey Creator and Relay use the same port and protocol.

NOTE:

If the Relay test fails, you cannot continue the installation until you establish communication with the Relay.

Step 5: Configure the database #

When configuring 3CX Survey Creator, select an existing Microsoft SQL Server instance in your environment. The database server can be a remote SQL Server (How-to configure SQL server to permit remote connections (https://www.voiptools.com/configure-sql-server-for-remote-access-over-internet/)) or a local instance running on the VolPTools server.

1. On the SQL Database window in the Server field, select the desired instance of SQL Server.
2. To use SQL Authentication, uncheck the Trusted Connection checkbox.
3. In the Username and Password fields, enter valid SQL login account credentials.

NOTE:

• We recommend you use SQL Authentication rather than Windows authentication. Many of our tools leverage a Call Flow Designer (CFD) application running on the 3CX. Frequently our CFD applications require access to a SQL database. If the 3CX server and the database server are not in an Active Directory domain, Windows authentication will fail.
• To use SQL Authentication, you must configure the SQL server to run in Mixed Mode. If you install SQL Server with our tools, we configure SQL in Mixed Mode.

4. To use Windows Integrated Authentication (not recommended), check the Trusted Connection (Windows integrated authentication) checkbox.

NOTE:

In the Database field, the installer will automatically display the default database name. We encourage you to use the default name. To upgrade or reinstall 3CX Survey Creator, select the current database name from the list.

5. Click the Tool buttons to confirm connectivity to SQL Server. and click OK on the Test Results message box.

6. Click the CFD button to confirm connectivity to the SQL server and click OK on the Test Results message box.

7. Click Next to continue.

Step 6: Installing 3CX Survey Creator #

1. Click Install in the Ready to Install window.

The application installation may take several minutes to complete.

2. Check the Launch 3CX Survey Creator checkbox and click Finish when the installation is complete.

3CX Survey Creator – Configuration #

The 3CX Survey Creator configuration screen enables you to register software, set recording path, check and upload latest versions of the application, start/ stop 3CX Survey Creator service and connect to the web portal.

Register Software #

Registration is required to authorize your software. Registering also makes it possible for VoIPTools to provide a replacement key if your license key is ever lost. Also, it enables VoIPTools to notify you of any product updates.

1. On the 3CX Survey Creator configuration screen, select License tab.

2. Enter your registration information in all the fields (Note the red dot denotes a required field).

3. Click Register.

Connect to Web Portal #

Click Web Portal button to connect to ‘3CX Survey Creator web portal’ login page.

Figure 12: Settings: Configure Recording Path

 Check for Updates #

The Check for Updates button on the License tab enables you to easily download the latest version of 3CX Survey Creator. If a newer version of 3CX Survey Creator is available, the message will indicate that a newer version is available. Clicking the button will automatically download a .zip file of the latest version of the software. You can install the new version directly over the top of a previous version without the need to uninstall the previous version.

Start/ Stop 3CX Survey Creator Service #

1. In the Settings screen, and at the footer, click Start to start the service.

2. Click Stop to stop the service.

Connect to Web Portal #

1. In the Settings screen, click Web Portal button.

(OR)

2. In the License screen, at the footer, click Web Portal.

Web Portal #

To access the ‘3CX Survey Creator’ web portal, click the Web Portal button on the configuration program, or click on the desktop icon that was created during the installation process (3CX Survey Creator Web).

An admin logs into web portal to create and edit questions or surveys and view survey results. The ‘Survey Results’ screen enables an admin to view customer’s response and feedback. When an agent transfers customer’s call to a survey, the customer participates in the survey and exits from the call. The survey results are then added to the ‘Survey Results’ screen, which can be viewed by the admin.

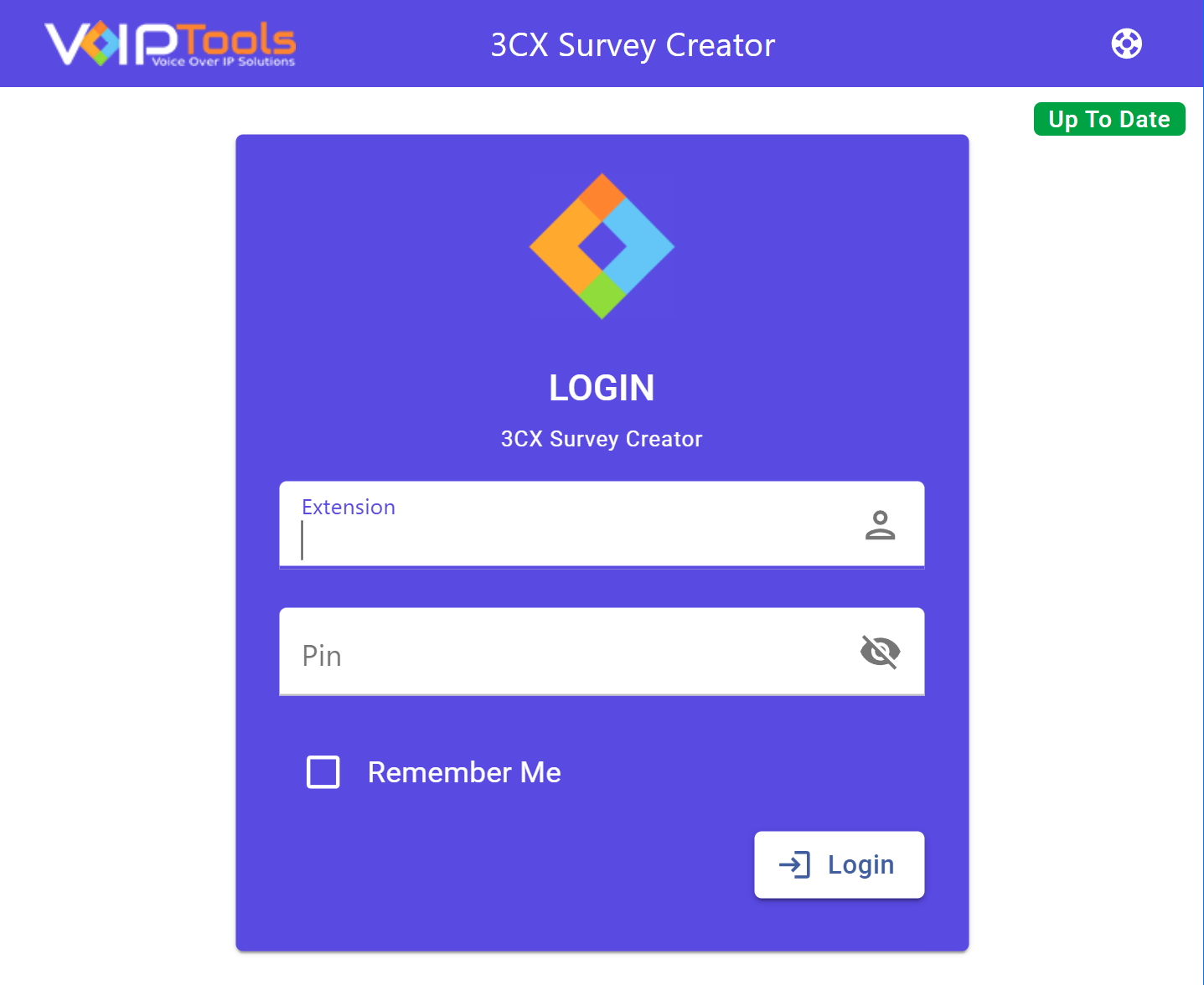

When connecting to the web portal, you will be asked to provide login credentials.

1. In the Extension field, enter your 3CX extension number

2. In the PIN field, enter your 3CX voicemail PIN

3. Click Login button to login to your account

Log in as Admin

As an admin, you can add/edit a question or survey, and you can view the survey result.

Figure 14: Survey Creator – Admin Login screen

Login as Agent

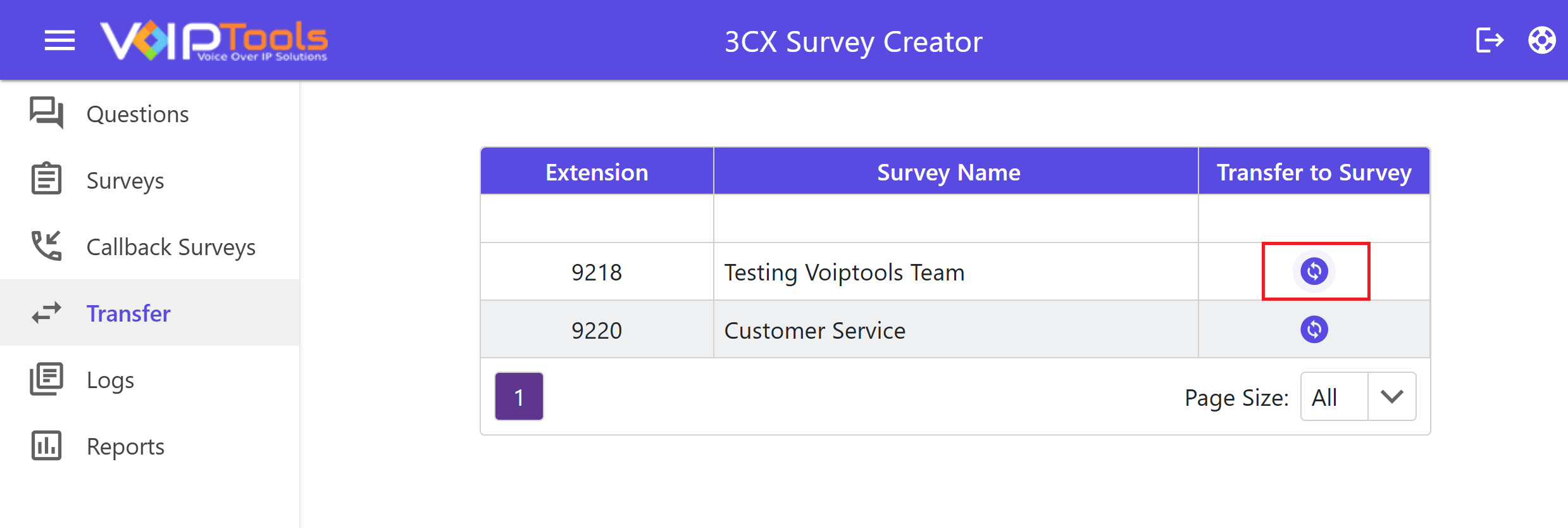

As an agent, you can transfer the customer’s call to a survey. You will not be able to view or listen to the customer’s response or feedback for the survey.

Figure 15: Login as Agent

Surveys Screen #

NOTE:

If you are upgrading from 3CX Survey Creator 15.5 Version to 16 Version, note the following:

• In 3CX Survey Creator 15.5v, all the published CFDs will display in ‘Queues’ tab of 3CX Console Management 15.5v

• In 3CX Survey Creator 16.0v, all the published CFDs will display in ‘Call Flow Designer’ tab of 3CX Console Management 16.0v

• If you want all the CFDs in 3CX Survey Creator 16.0v to be same as that in 15.5v then, delete all the CFDs from ‘Queues’ tab of 3CX Console Management 15.5v and recreate each of them in 3CX Console Management 16.0v and you will find them in ‘Call Flow Designer’ tab.

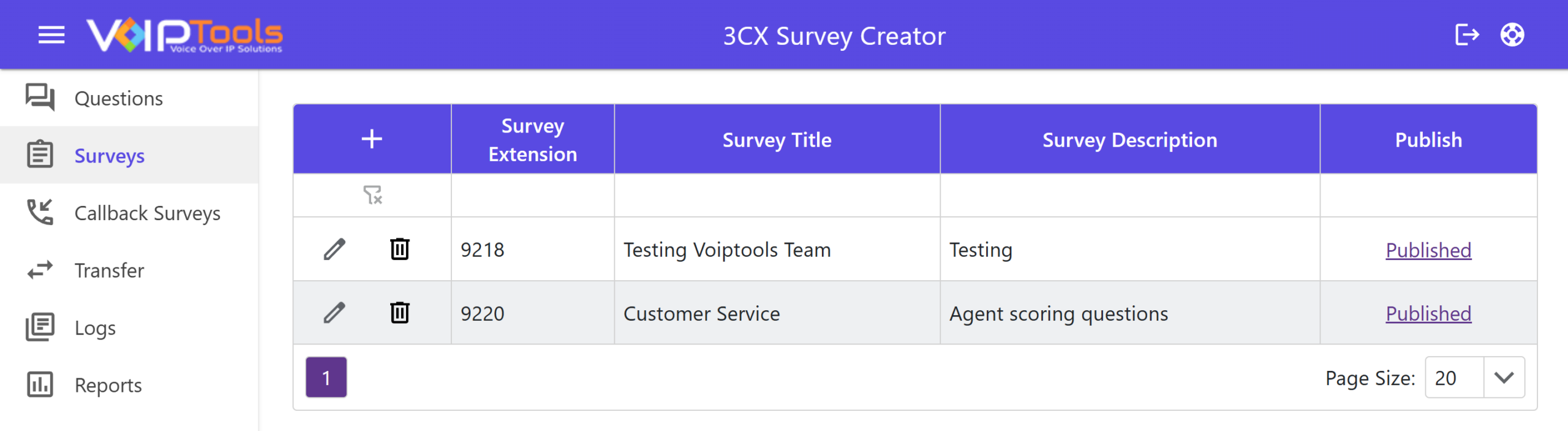

The Surveys screen allows you to add a new survey, edit or publish an existing survey. Once you create and publish a survey, you need not publish again even if you edit the survey.

NOTE:

The extensions created for Surveys cannot be used for Call Back Surveys.

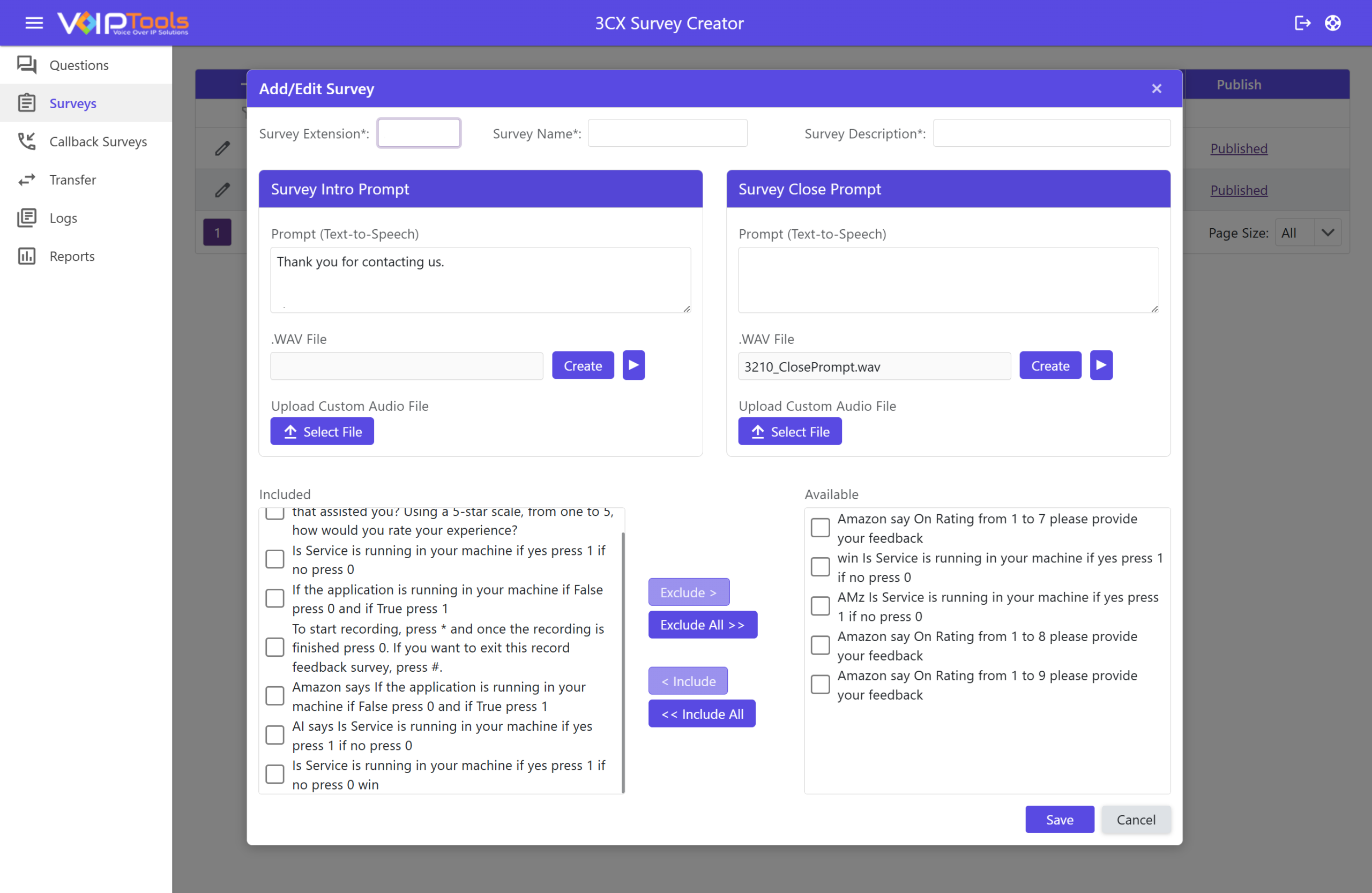

Add a Survey #

1. On the menu bar, click Surveys

2. In the Survey Maintenance screen, click  Add button to create a new survey

3. In the Add/ Edit Survey dialog box and in the Survey CFD field, enter the Survey Extension number.

NOTE:

Once you create a survey, you will not be able to edit Survey CFD data.

4. In the Survey Name field, enter the name for current survey.

5. In the Survey Description field, enter the description for current survey.

6. In the Survey Intro Prompt / Survey Close Prompt sections, you can create a either a new ‘Text-To-Speech’ prompt or upload a pre-recorded prompt.

NOTE:

Before creating Intro prompt or Close prompt, the agent should select desired ‘Voice Type’ from the ‘TTS Settings’ section of the ‘Settings’ tab.

a). To create ‘Text-To-Speech’ prompt:

i. In the Prompt (Text-To-Speech) text field, enter the welcome data (for Survey Intro Prompt) or closing prompt (for Survey Close Prompt) so that the customer will be able to hear the audio format of the text at the beginning of the call.

ii. In the .WAV File field, enter the name for the ‘Text-To-Speech’ prompt.

NOTE:

Providing name for .WAV File is optional. If you do not provide any name for the ‘Text-To-Speech’ prompt then Survey Creator will auto-generate a new name while creating the audio file.

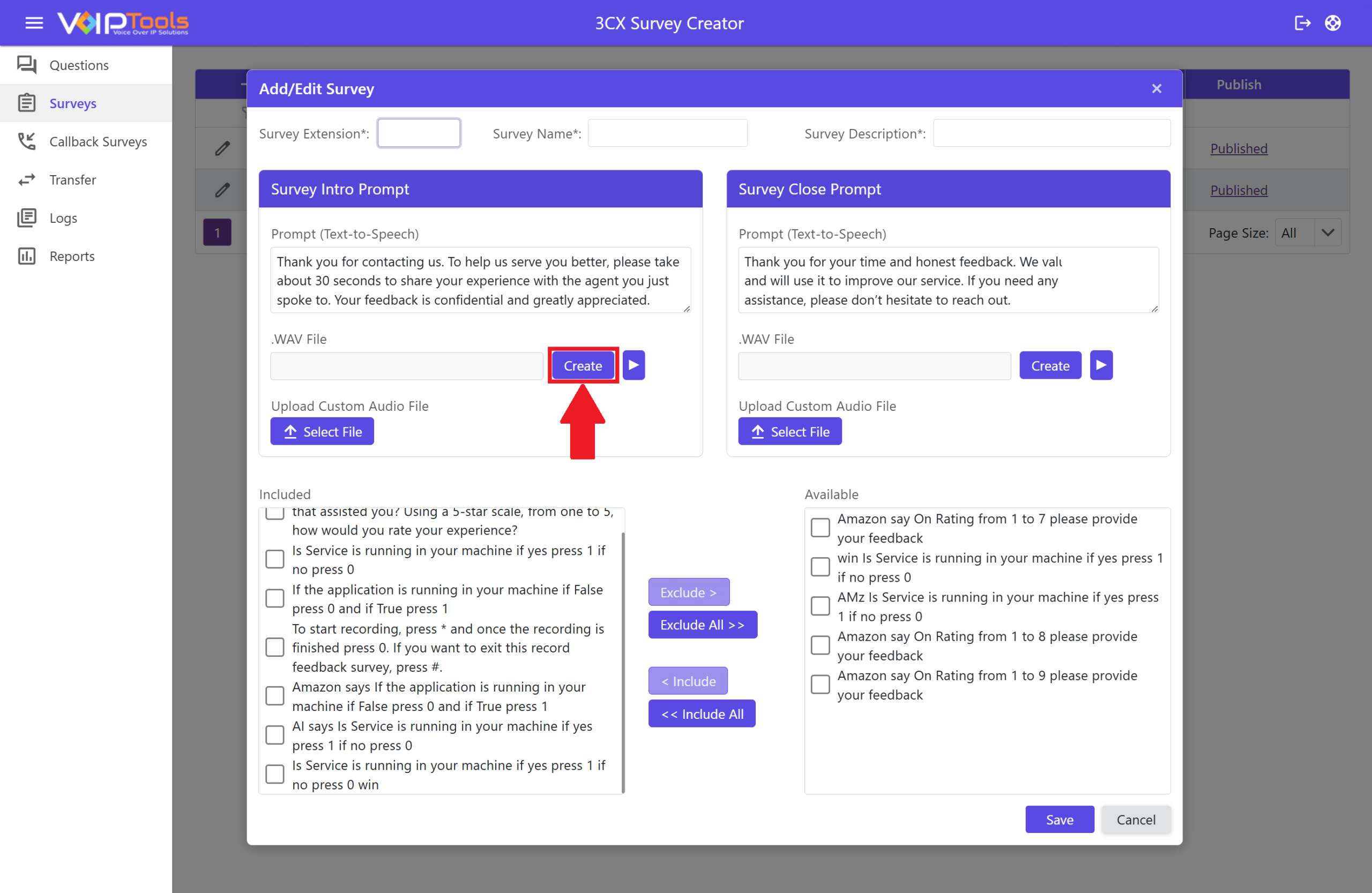

iii. Click Create to create the Text-To-Speech’ prompt.

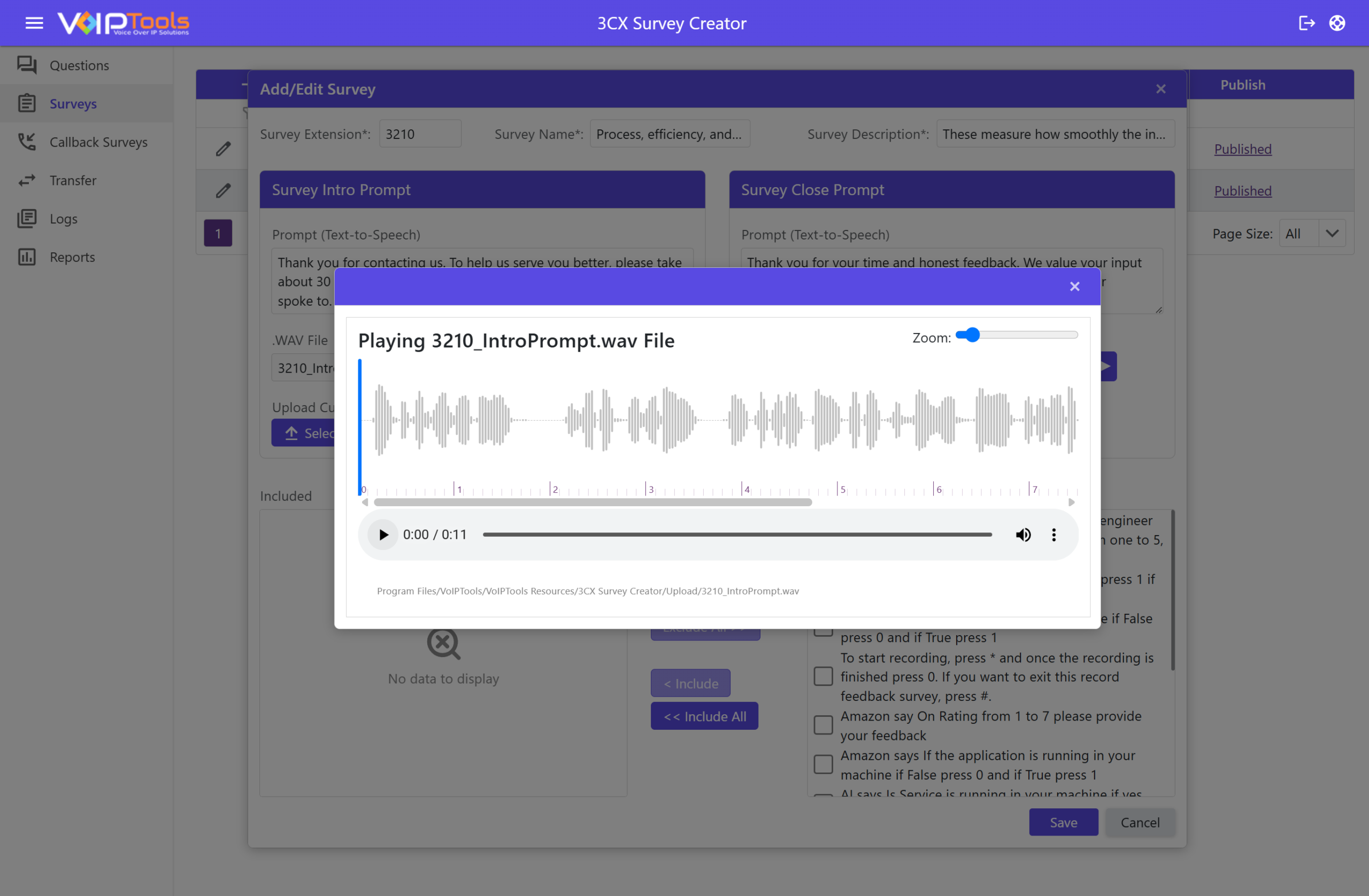

b). To upload and play ‘Pre-recorded’ prompt:

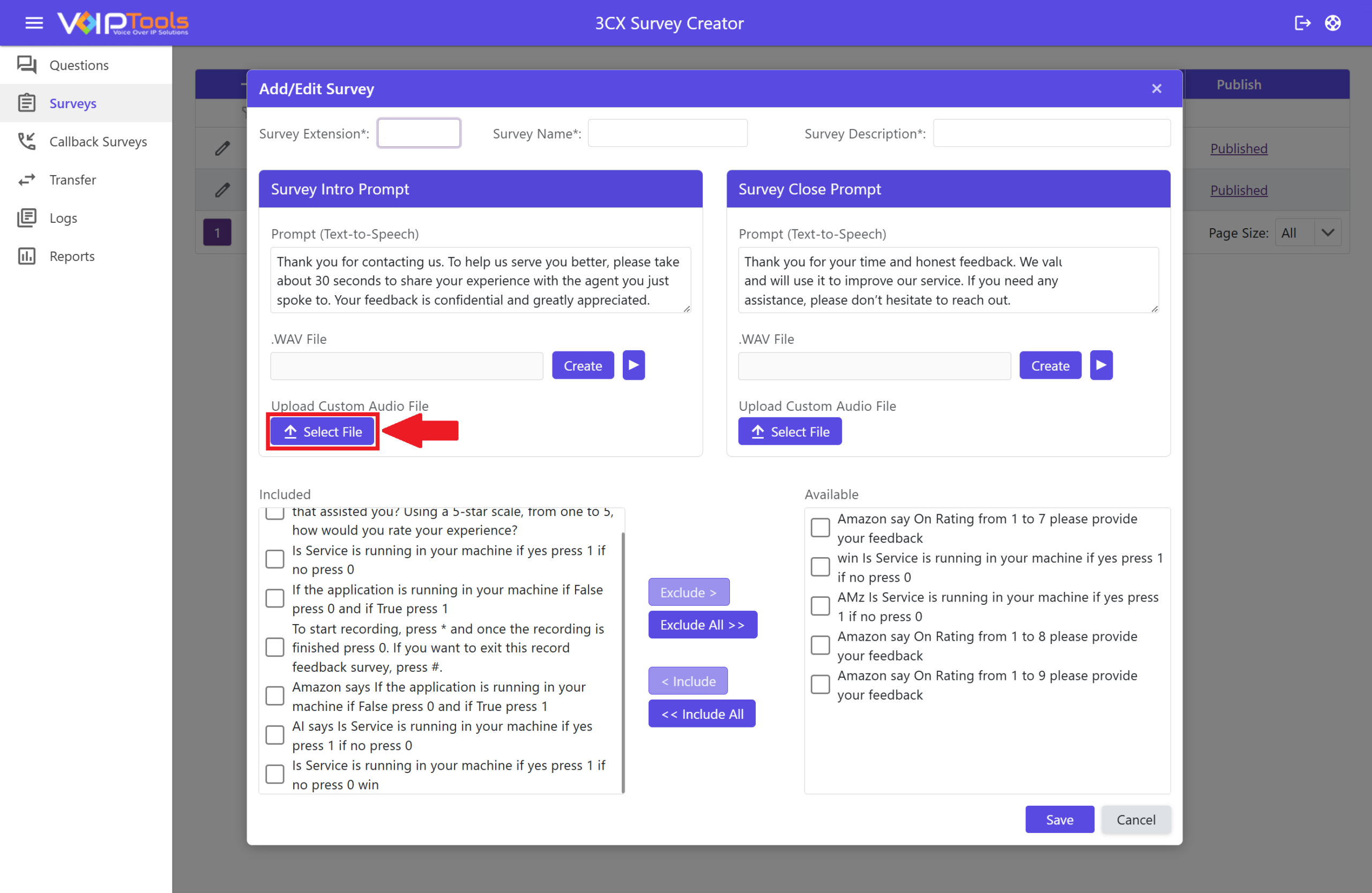

i. Beside Prompt .WAV File field, click Browse to browse for the pre-recorded audio file that you saved on your local system.

ii. Click Save to enable the uploaded audio file.

NOTE:

If you click Create, the Survey Creator enables Prompt (Text-To-Speech) file for the customer. On the other hand, if you Browse for the pre-recorded audio file from your local path and click Save, the Survey Creator enables the uploaded file for the customer.

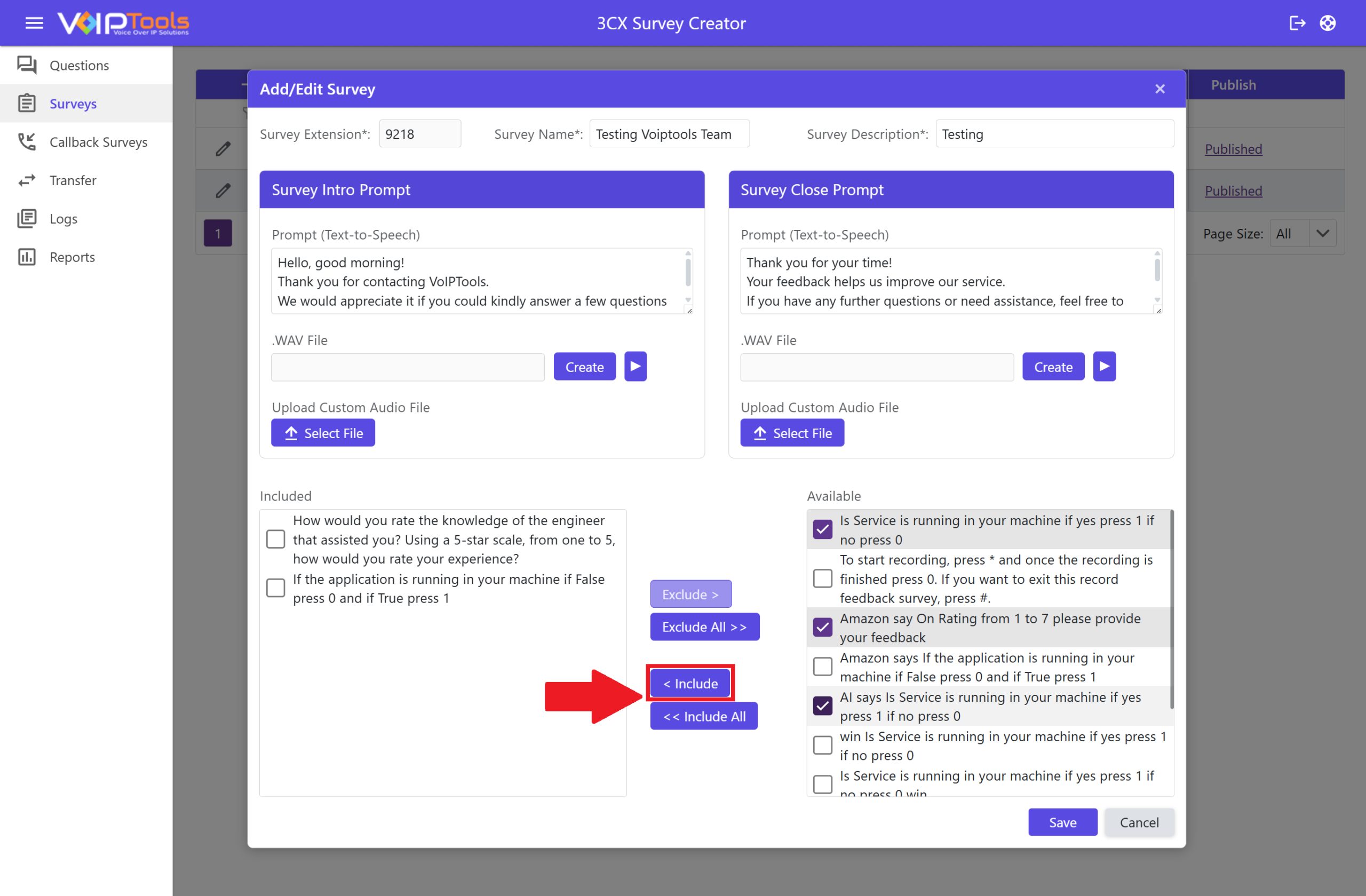

7. To include questions in the survey, from the Available section, select the desired question and click Include. To include all questions in the survey, click Include All.

8. To exclude questions from the survey, from the Included section, select the desired question and click Exclude. To exclude all questions from the survey, click Exclude All.

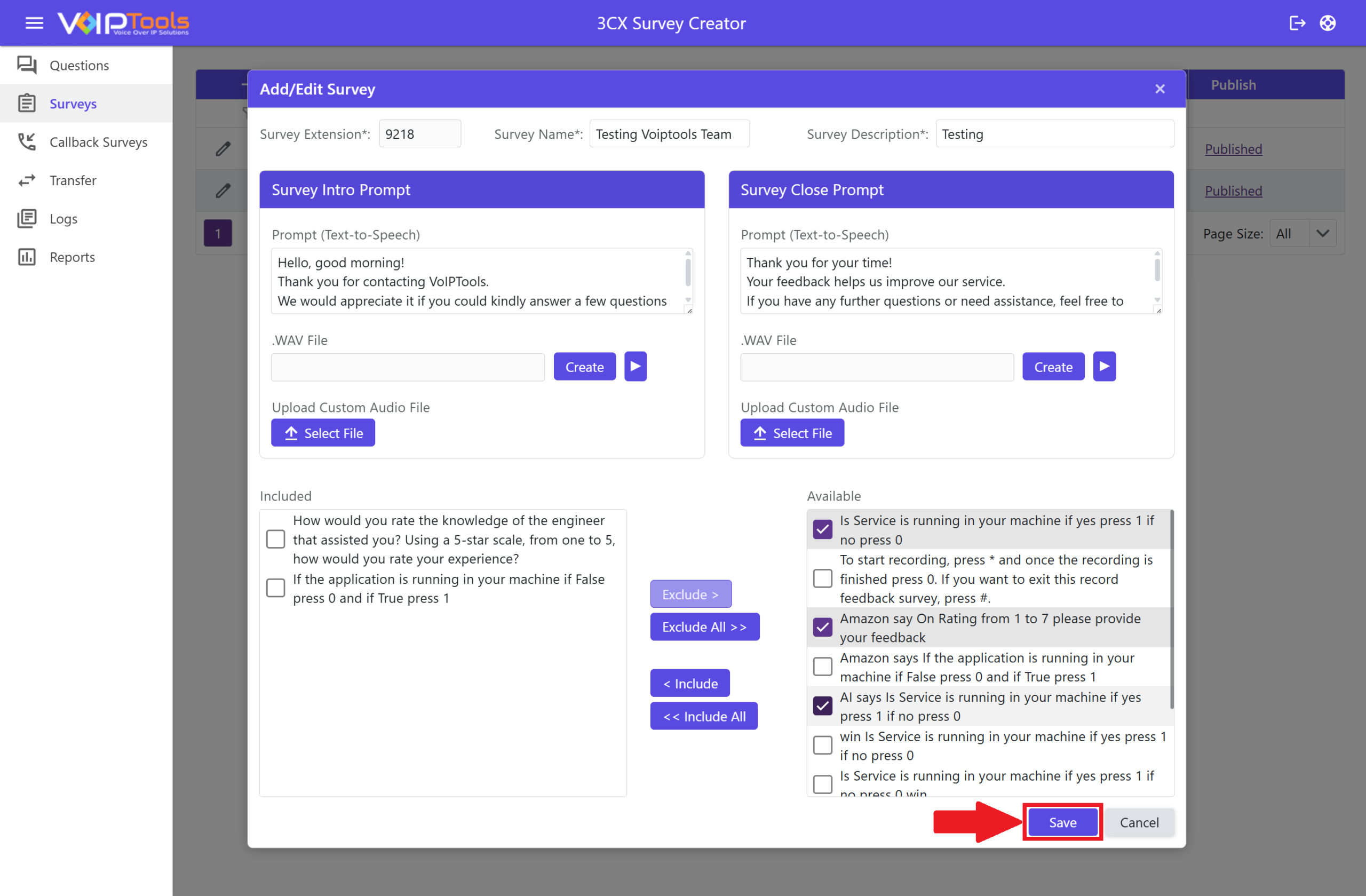

10. Click  Save to save all the data that you have just added to the Add/Edit Survey screen.

Edit a Survey #

1. On the menu select Surveys

2. Click  Edit button beside the survey that you want to edit

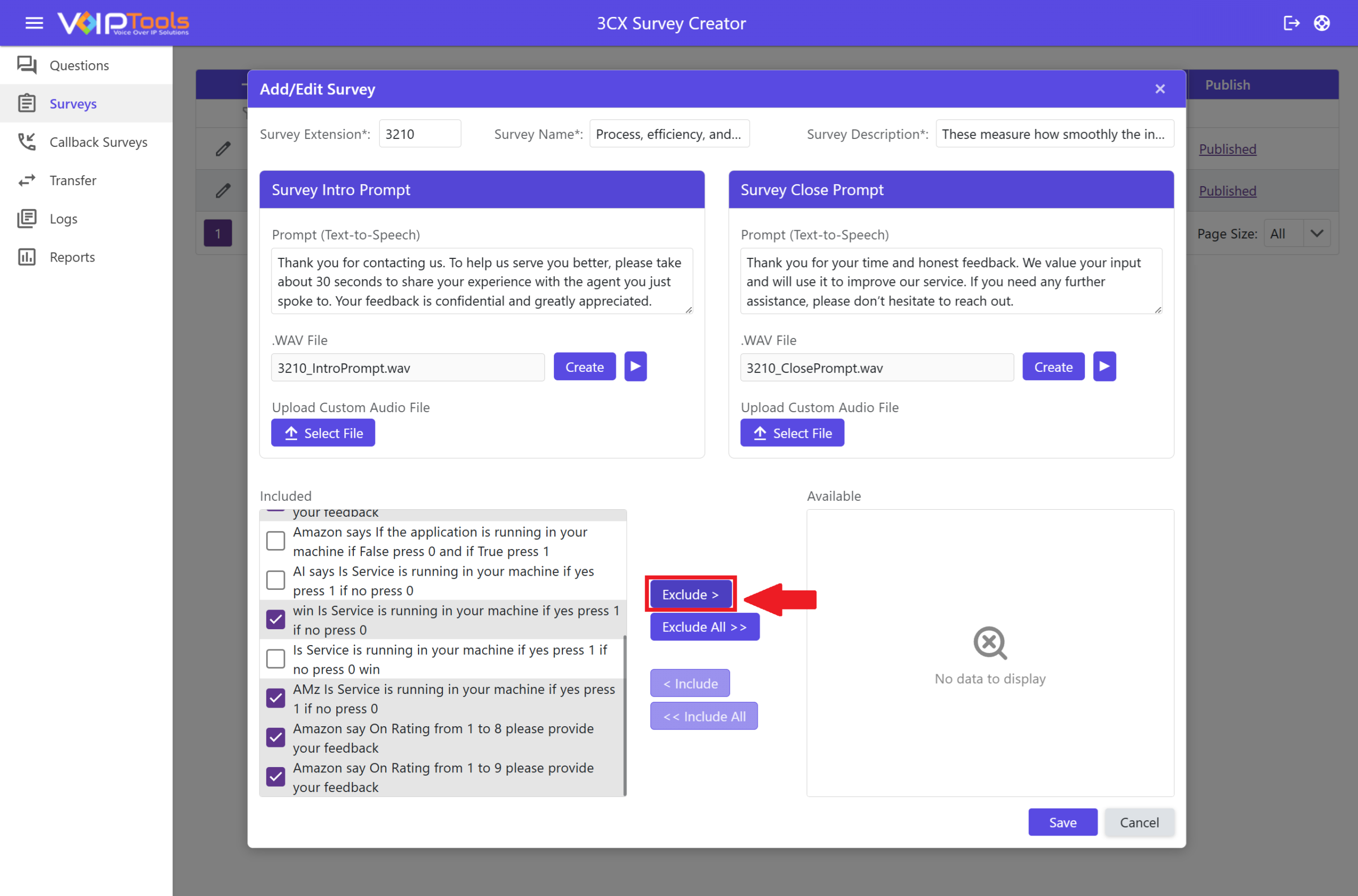

3. To exclude a question, from the Included section, select the questions that you want to exclude and then click Exclude

4. To include a question, from the Available section, select the questions that you want to include and then click click Include

5. Click  Save to save your changes

 Delete a Survey #

1. In the Surveys screen, from the Survey Maintenance screen, click the  Delete button beside the survey that you want to delete.

2. In the Confirm Delete message box, click OK

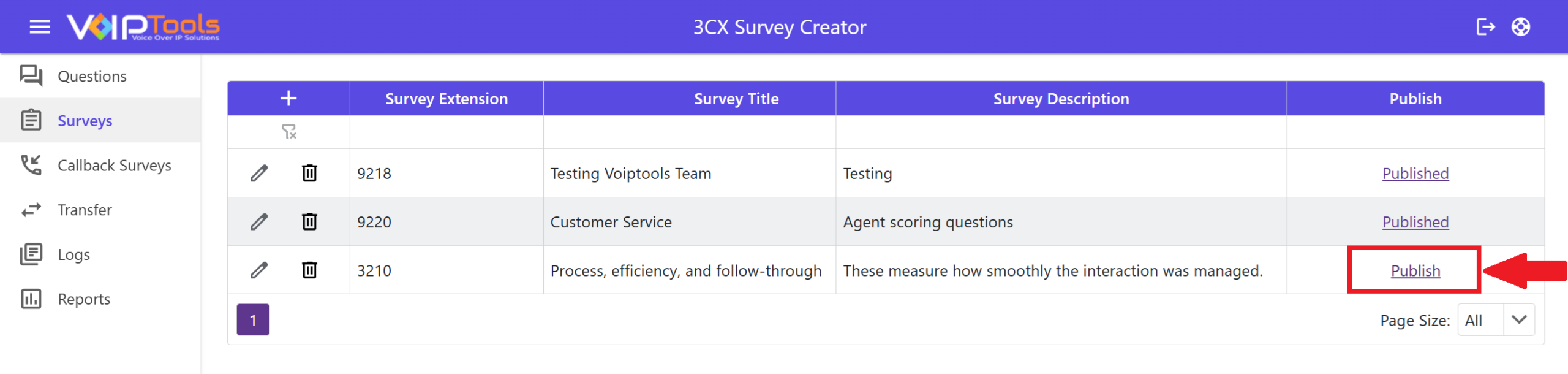

Publish a Survey #

1. In the Surveys screen, from the Survey Maintenance screen, look for the added survey that you want to publish

2. Click the Publish link beside the survey that you want to publish. See that the status is now changed as ‘Published’

3. Information message box appears. Click OK

NOTE:

Once you publish a survey, you need not publish it again even if you edit your survey.

CallBack Surveys #

Call Back feature is introduced to conduct an online survey on the product. However, participating in the survey is completely optional to the customer.

When a customer calls the agent, the call connection is automatically diverted to a queue where the customer is offered an option to participate in the survey. Once the customer confirms or rejects the participation, the call connection is diverted to the agent (pre-defined extension) in order to continue with the regular call. Once the customer exits from the current call, the customer will get a call back (pre-defined extension) if the participation was confirmed, and will not get any call back if the participation was rejected. The customer is also given an option to take survey on a different number.

Create/Save/Publish/Delete a call back survey: #

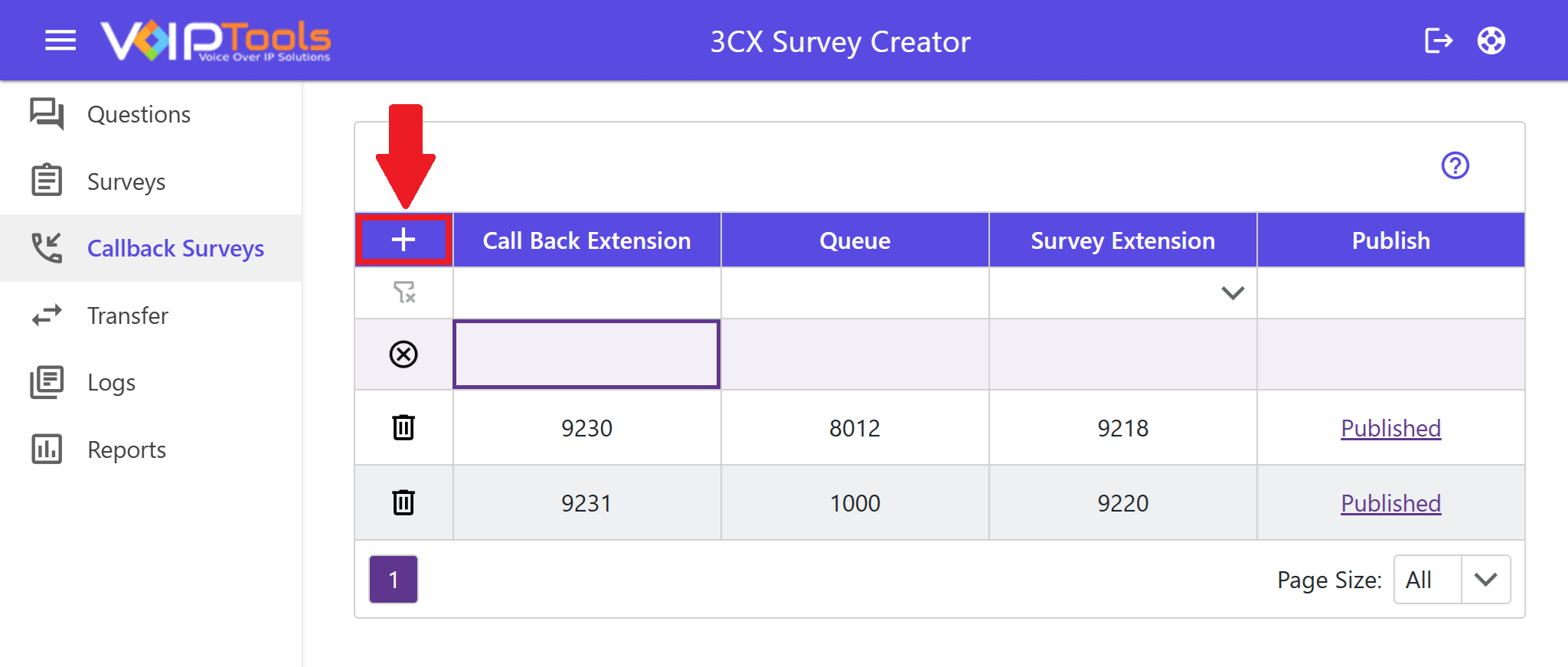

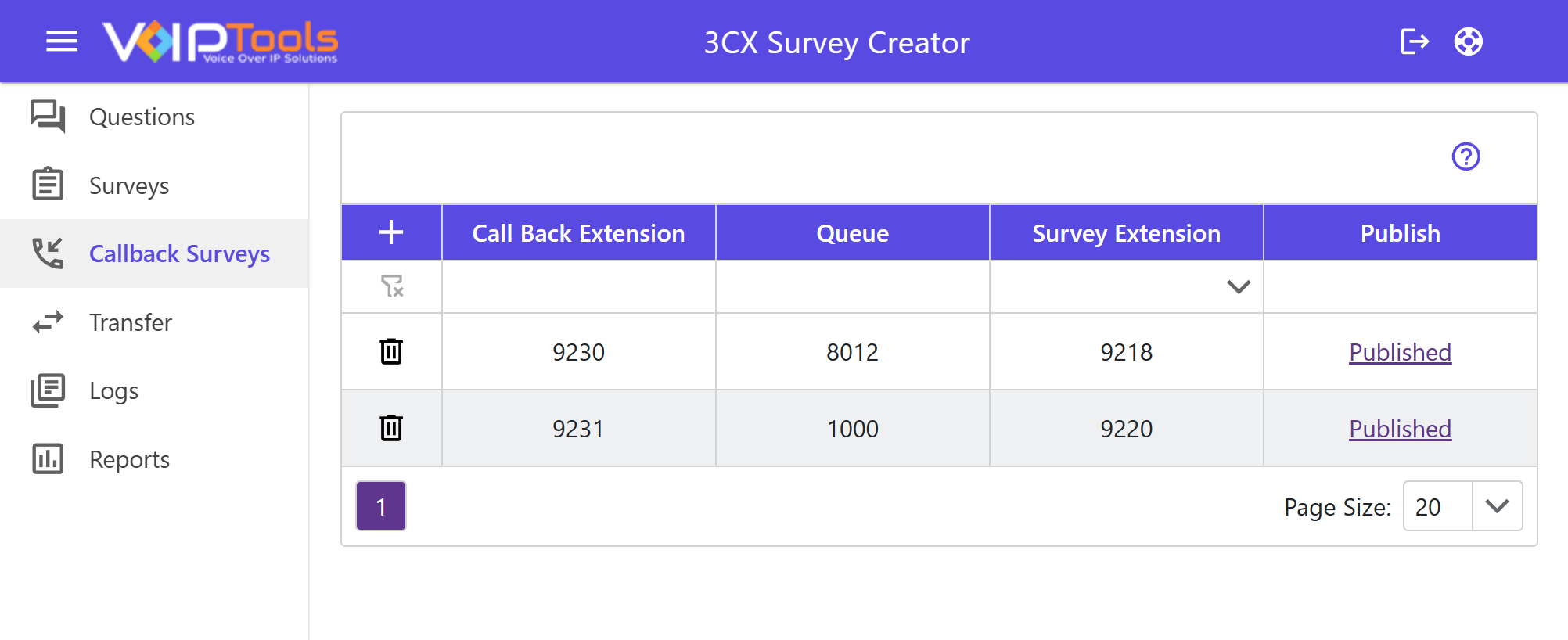

1. In the CallBack Maintenance page and on the column header, click plus symbol.

2. From the PCS Extension dropdown list, select the survey numbers that published in Survey Tab.

3. From the Call Back Extension dropdown list, create the call back extension number such that it is within the 3cx allotted digit range.

3. In the Agent/Queue field, enter the extension or queue to which the call should be transferred.

4. click Save to save the call back survey CFD.

5. Click Publish to publish the Call Back Survey CFD.

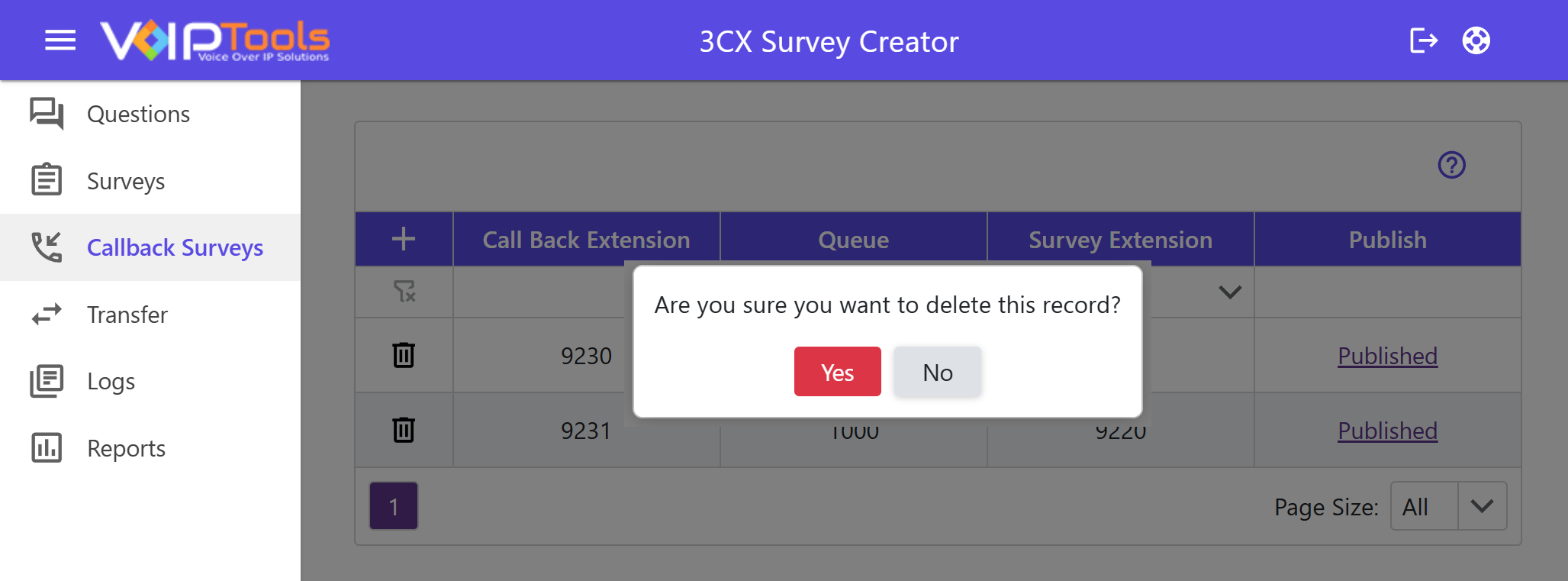

6. Click on Delete symbol to delete the CallBack Survey CFD.

The feature is illustrated below with an example:

1. Customer calls the inbound number.

2. Call connection is diverted to Call Back Survey (for example: 1871)

3. Customer is given an option to confirm or reject the participation in the survey after exiting the current call. (For example: Press 1 to participate or Press 2 to reject and talk to agent)

4. If the customer presses 1 (confirms participation):

a. Customer is asked to confirm the number for call back after exiting the current call.

i. Press 1 to get a call back on the same number, after exiting the current call.

ii. Press 2 to provide a different number on which you want to take the survey after exiting the current call.

b. Once the customer confirms the call back number, call connection exits from the Survey Queue: 1871 and connects to the agent/queue to continue with the regular call.

c. After exiting the current call with agent, customer will get call back on the provided number and once answered, the customer will be transferred to 1781 (PCS Number) to participate in the survey.

5. If the customer presses 2 (rejects participation):

a. The call connection exits from the Call Back Survey: 1781 and connects to the agent to continue with the regular call.

b. After exiting the current call, the customer will not get any call back to participate in the survey.

Questions Screen #

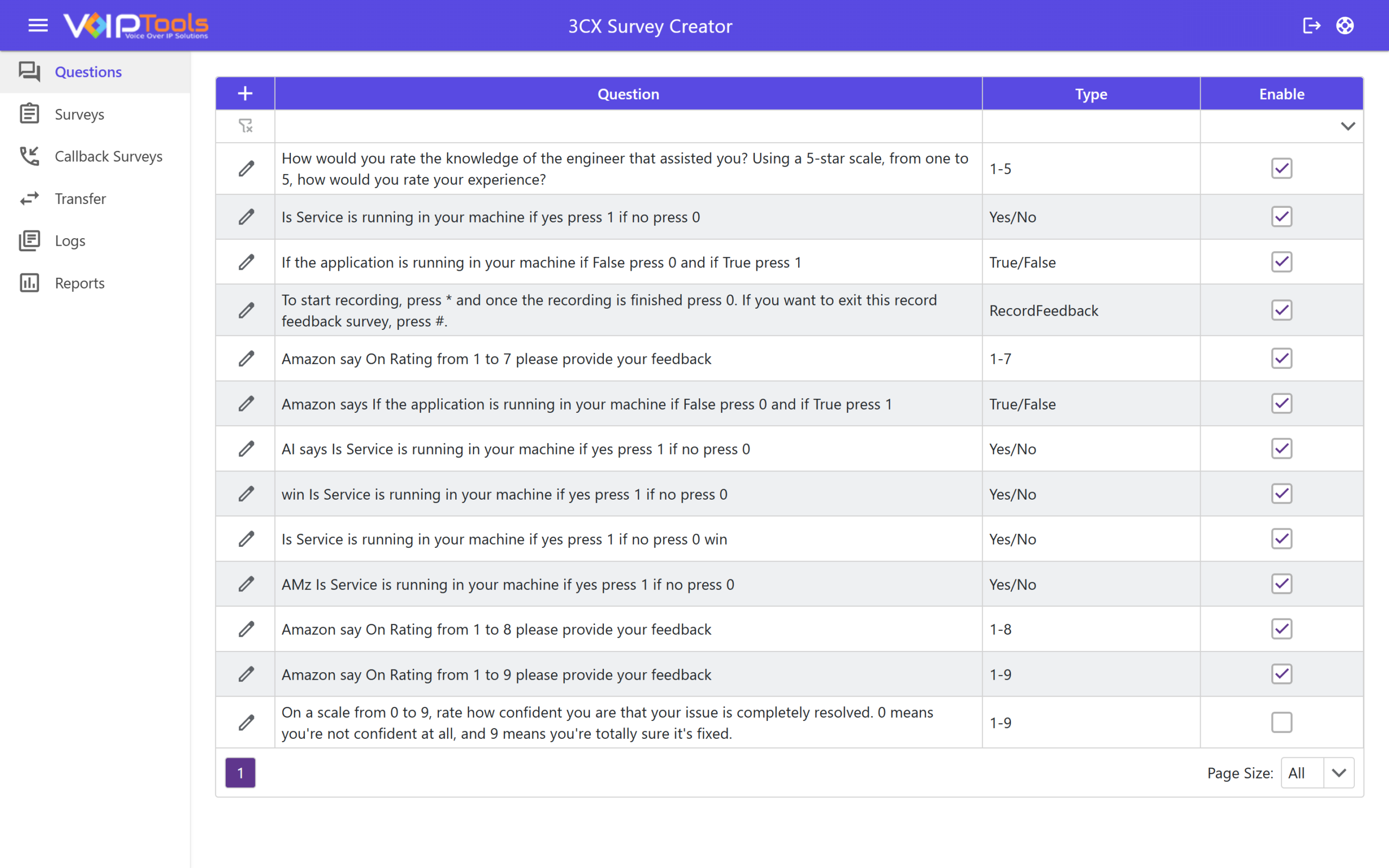

The Questions screen allows you to add a new question or edit an existing question. The agent should select desired ‘Voice Type’ from the ‘Settings’ tab before creating any survey or Text-To-Speech questions.

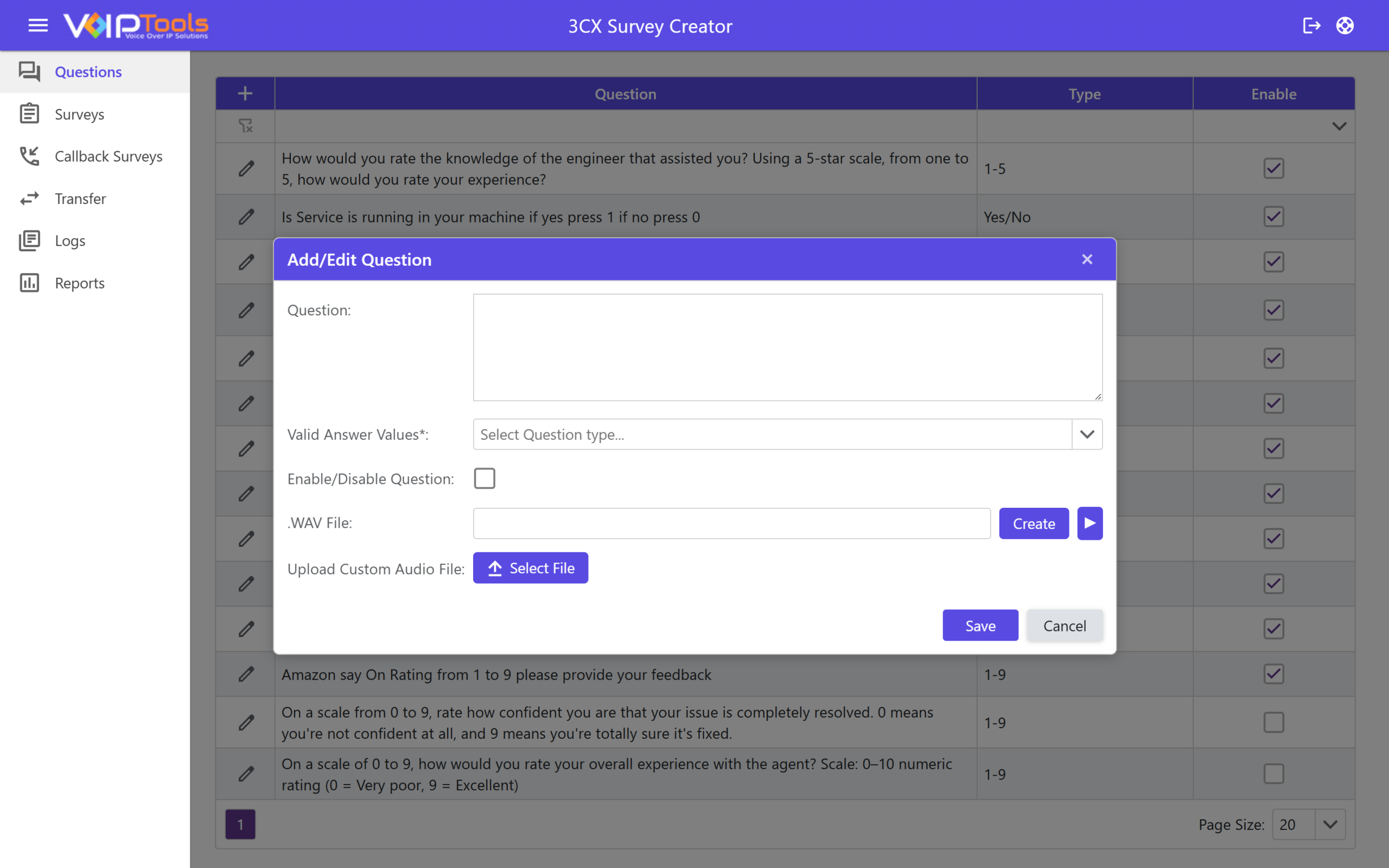

Add a Question #

To create a new question, you can either create an audio file (.wav file) as ‘Text-to-Speech’, or upload a prerecorded .wav file.

NOTE:

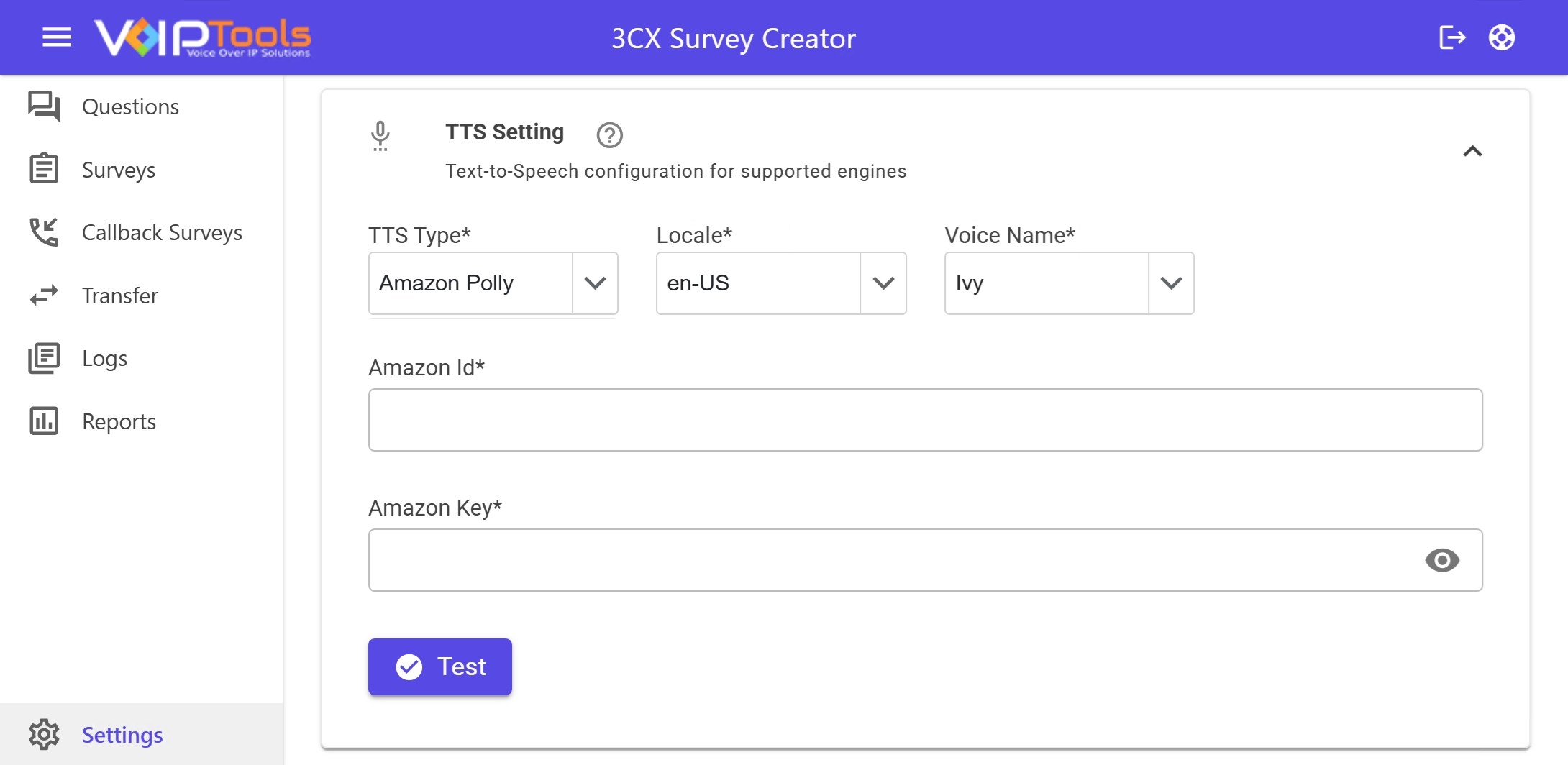

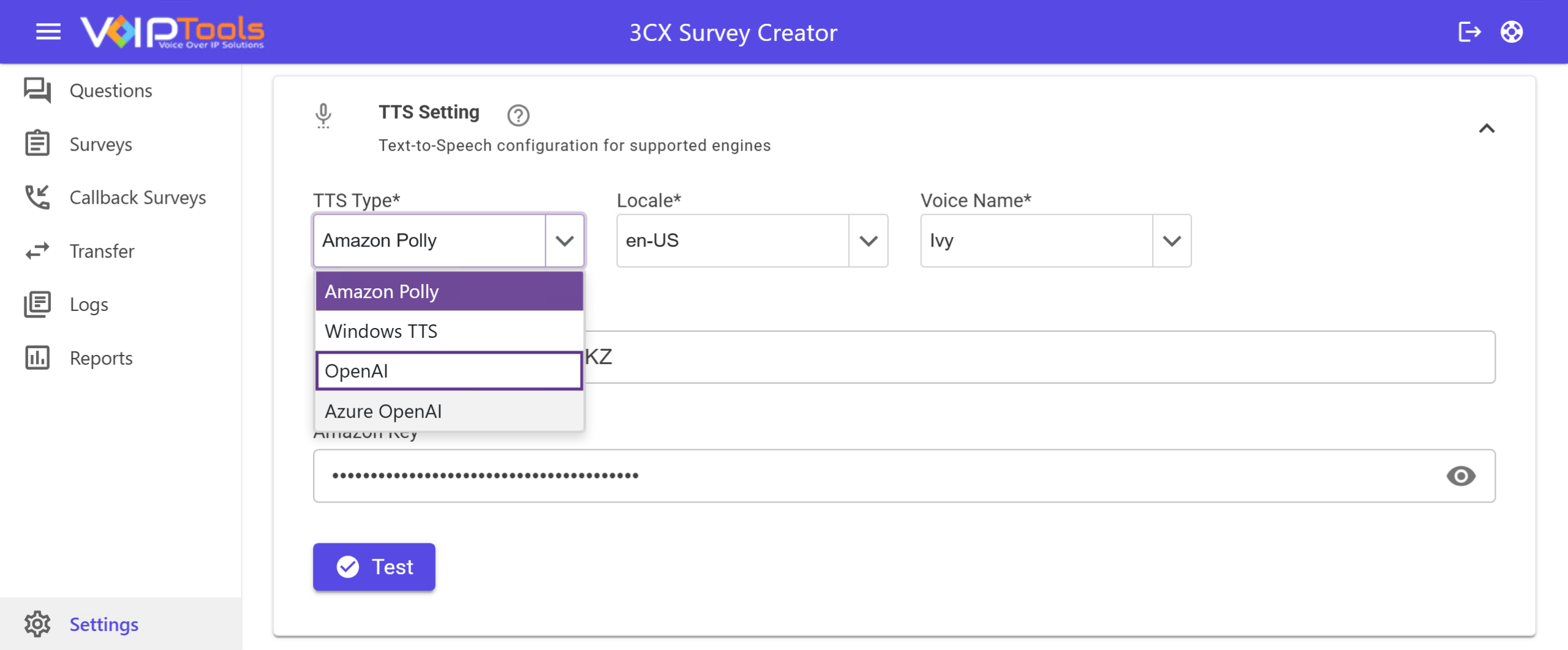

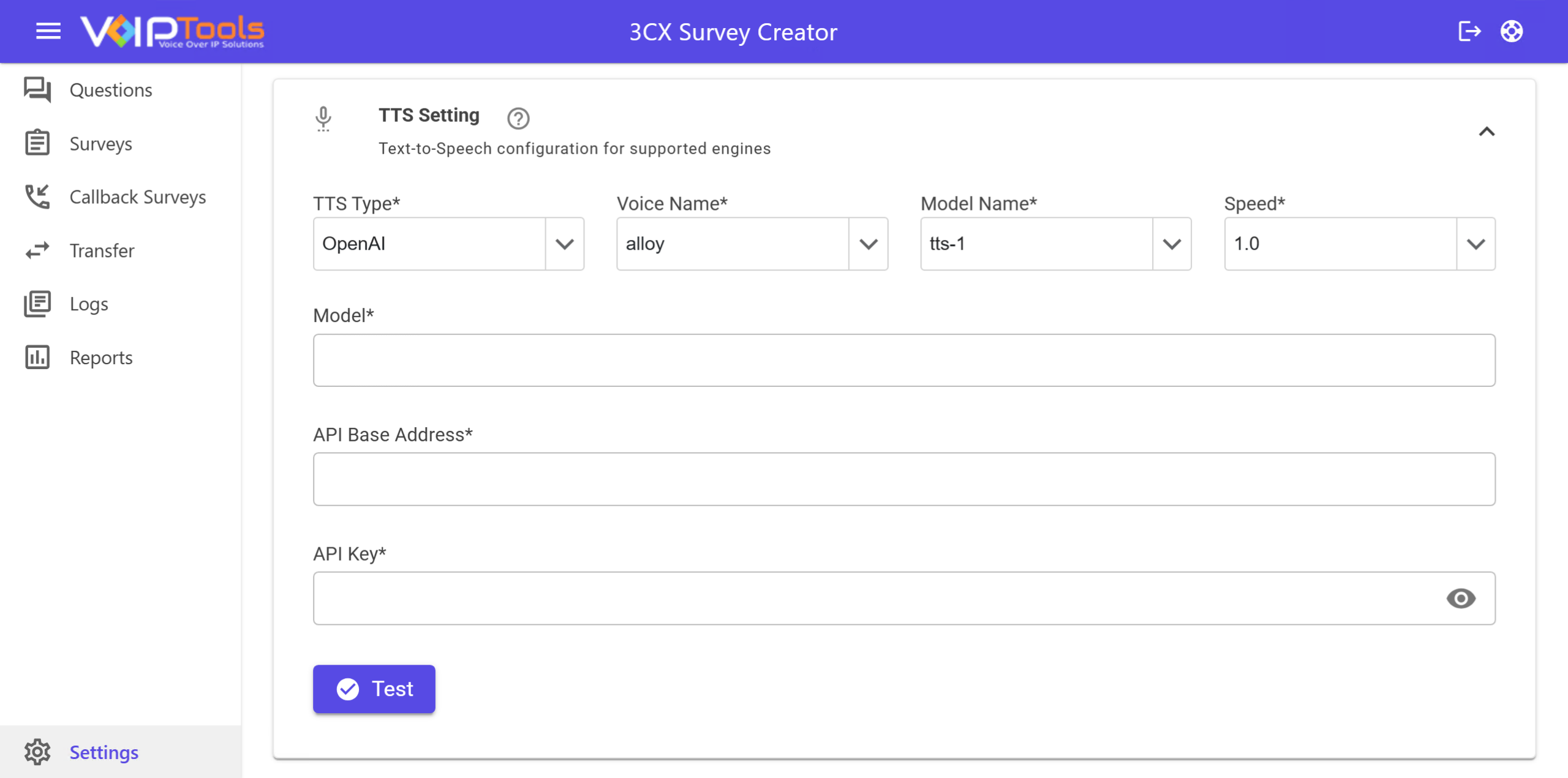

The agent should select desired ‘Voice Type’ from the ‘Settings’ tab before creating any survey or Text-To-Speech questions.

1. On the menu bar, click Questions

2. In the Question Maintenance screen, click  to add a new question.

Text-To-Speech

a. On the Add/ Edit Question dialog box, in the Question textbox, type the question

b. Enter the WAV File name

c. From the Valid Answer Values drop down, select the value that best answers the question

d. If your question is about taking a feedback from the customer, from the Valid Answer Values drop down, select Record Feedback option to record the feedback. If you select Yes/ No option then the survey result will save Yes as 1 and No as 0. Similarly, if you select True/ False option, then the survey result will save True as 1 and False as 0.

NOTE:

To start recording, press * and once the recording is finished press 0. If you want to exit this record feedback survey, press #.

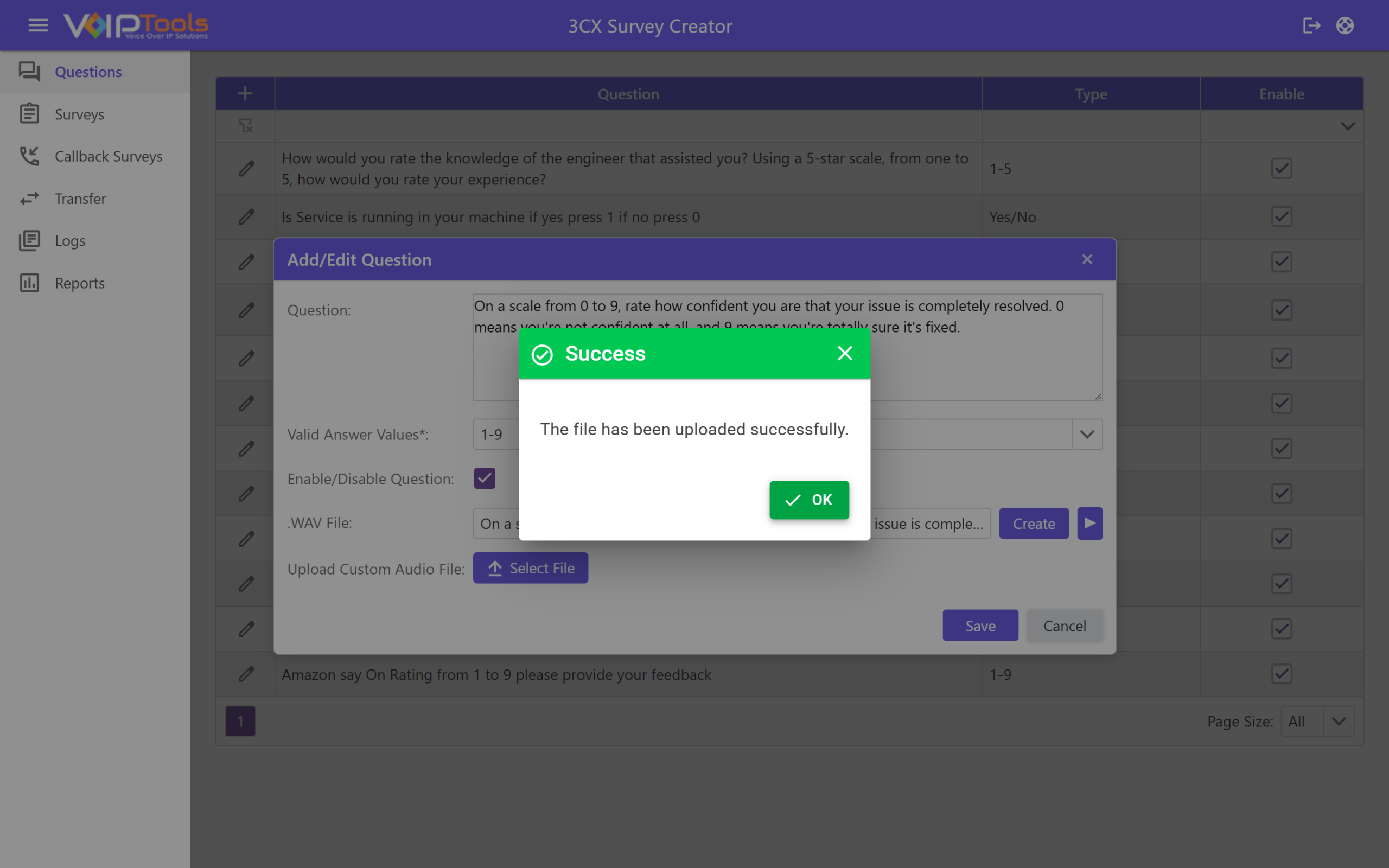

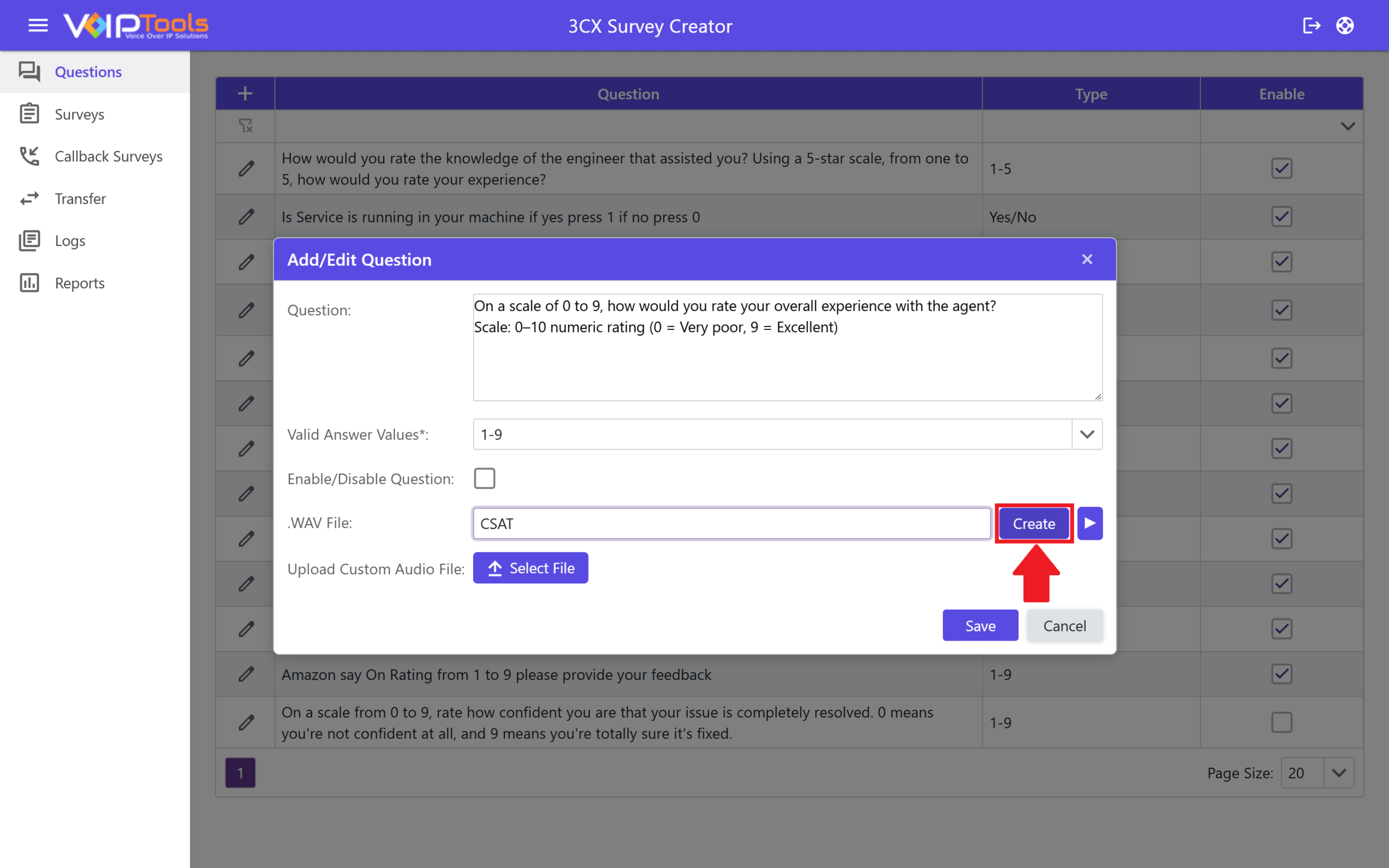

e. Click Create to generate the .wav file

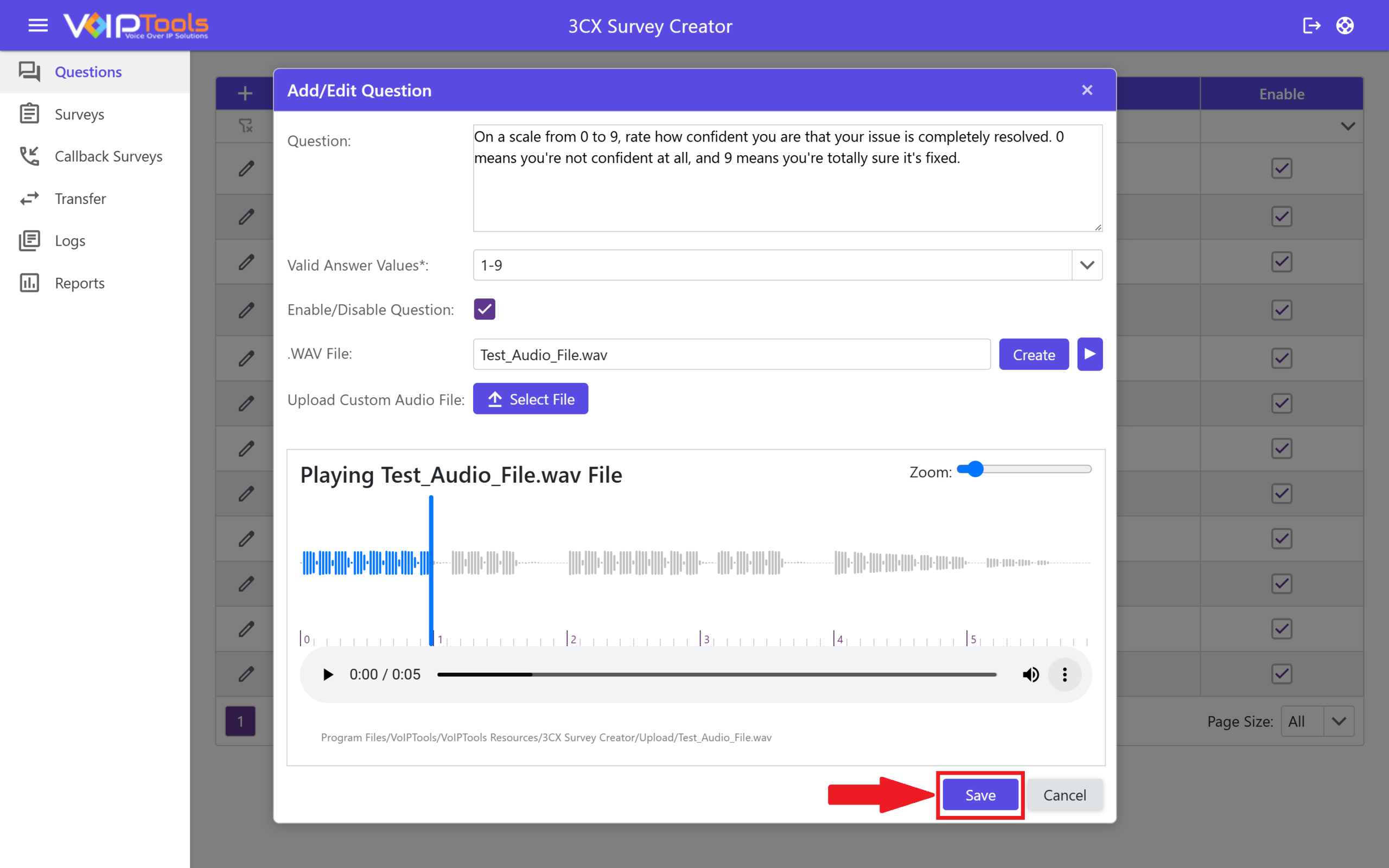

f. Click  to save your changes

Prerecorded Audio File

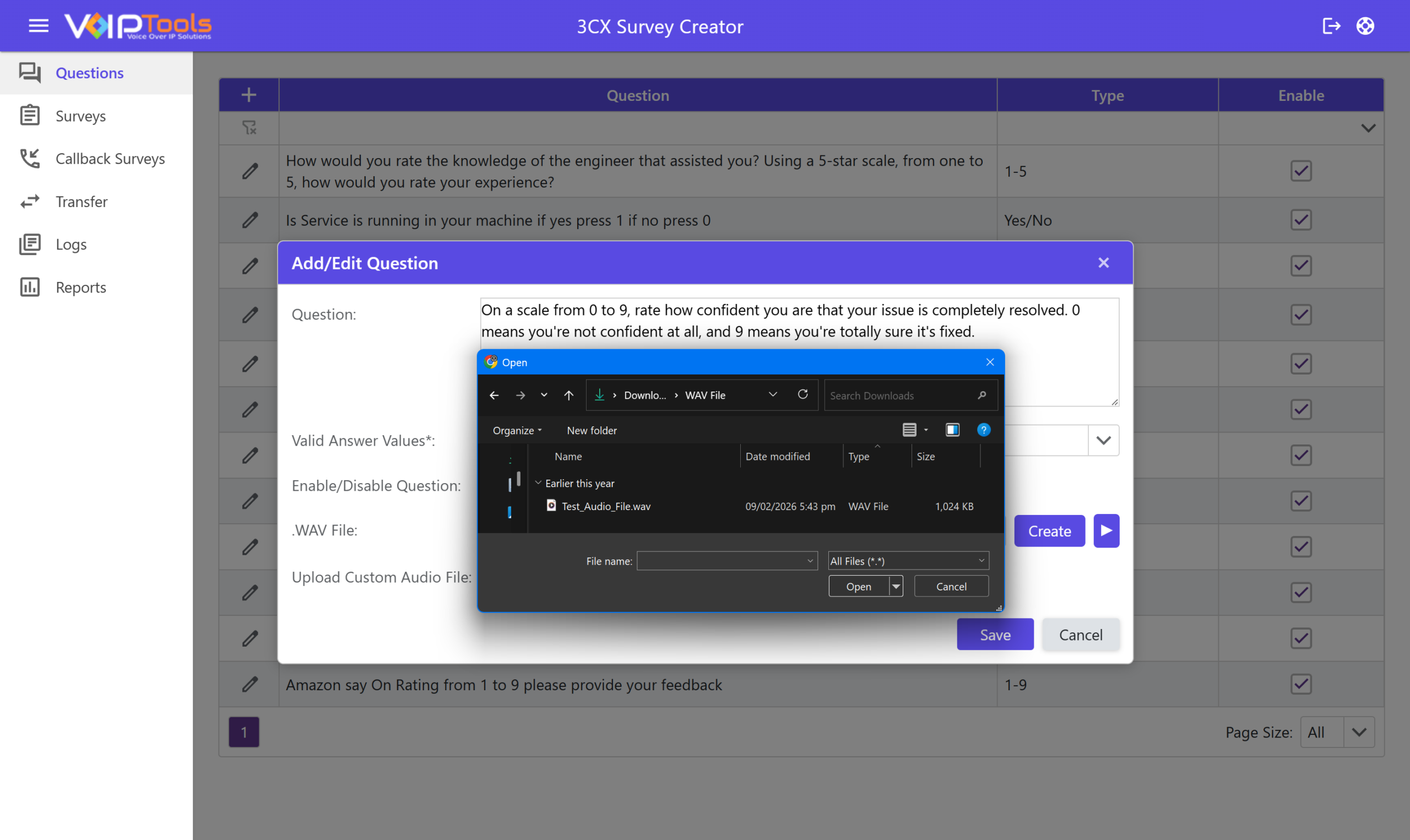

a. On the Add/ Edit Question dialog box, click the Browse button and select the file to upload

NOTE:

All the questions that you browse and upload will store in this path: “C:ProgramDataVoIPToolsDataHttpwwwroot3CX Survey Creatorupload”

b. Select appropriate option from the Valid Answer Values dropdown for the question.

c. Click  to save your changes

NOTE:

If you do not click ‘Create/ Browse’ button while creating or editing your audio file (.wav file), your question will not save

Edit a Question #

1. Click  beside the question that you want to edit

2. To edit ‘Text-To-Speech’, make the desired changes to the text and click Create to update the changes in the audio file

3. You can also edit Valid Answer Values

4. To edit ‘prerecorded’ file, click Browse to change the prerecorded .wav file

5. Click  to save your changes

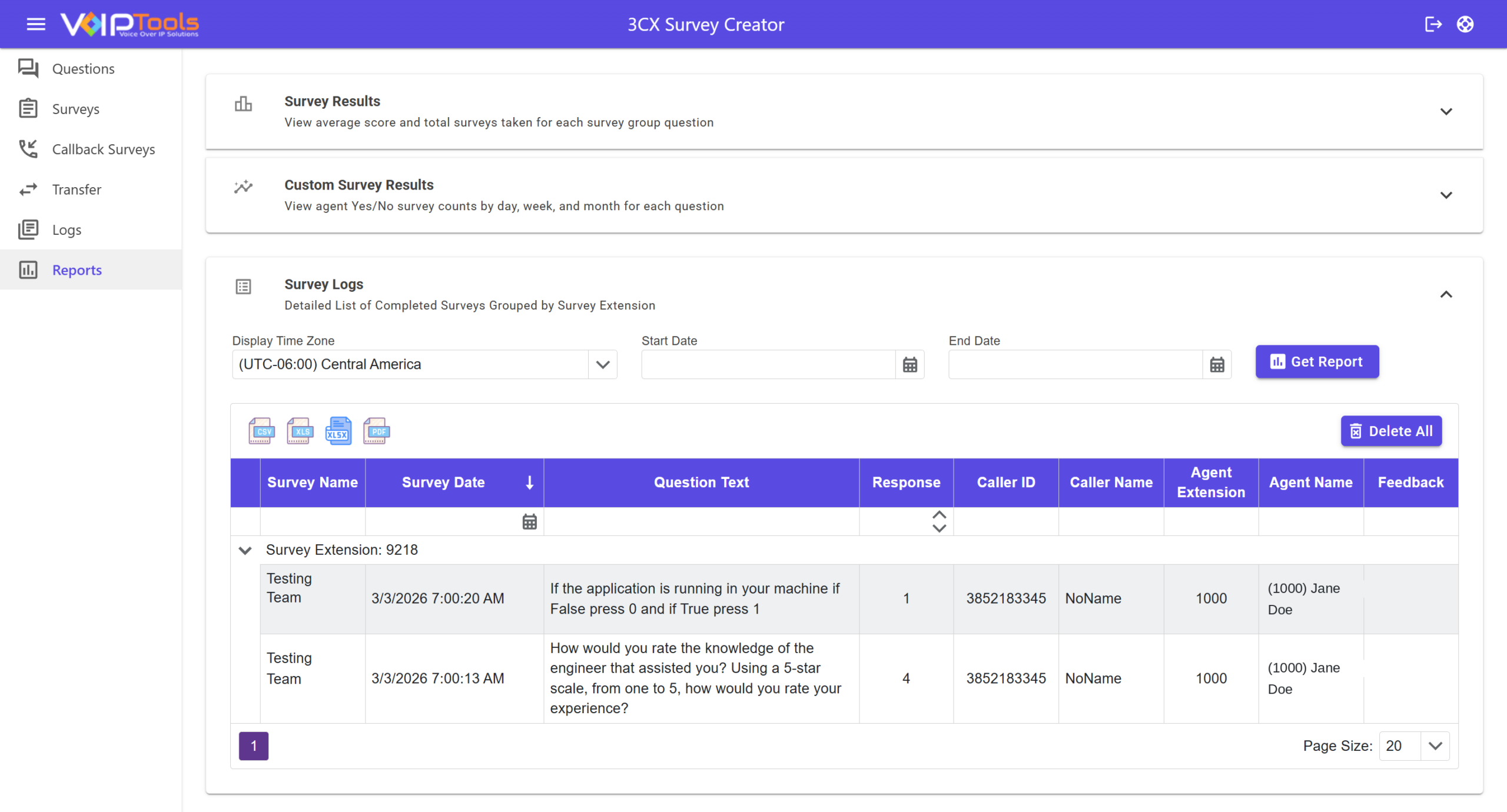

Survey Results Screen #

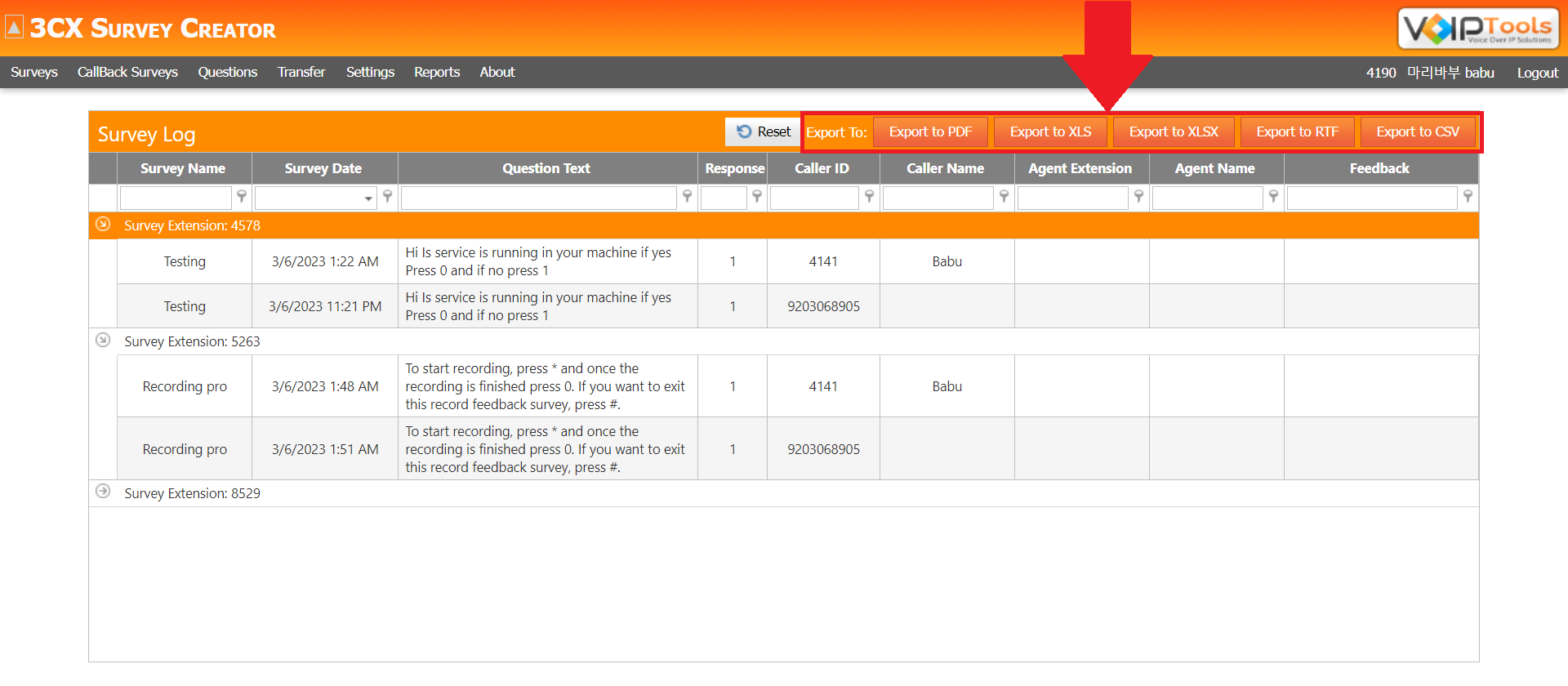

Once a customer participates in the survey (which can be either during a direct call to the survey or when a logged in extension transfers the participant to survey) and exits from the call, the survey results are added to the Survey Results screen. Here, as an admin, you can view the survey result details like Survey Extension, Survey Name, Survey Date, Question Text, Caller ID, Caller Name, Agent Extension, Agent Name, Response and Feedback.

You can also Reset to clear the Survey Results grid data.

Check Survey Result #

1. Login to the Survey Creator web portal as an admin

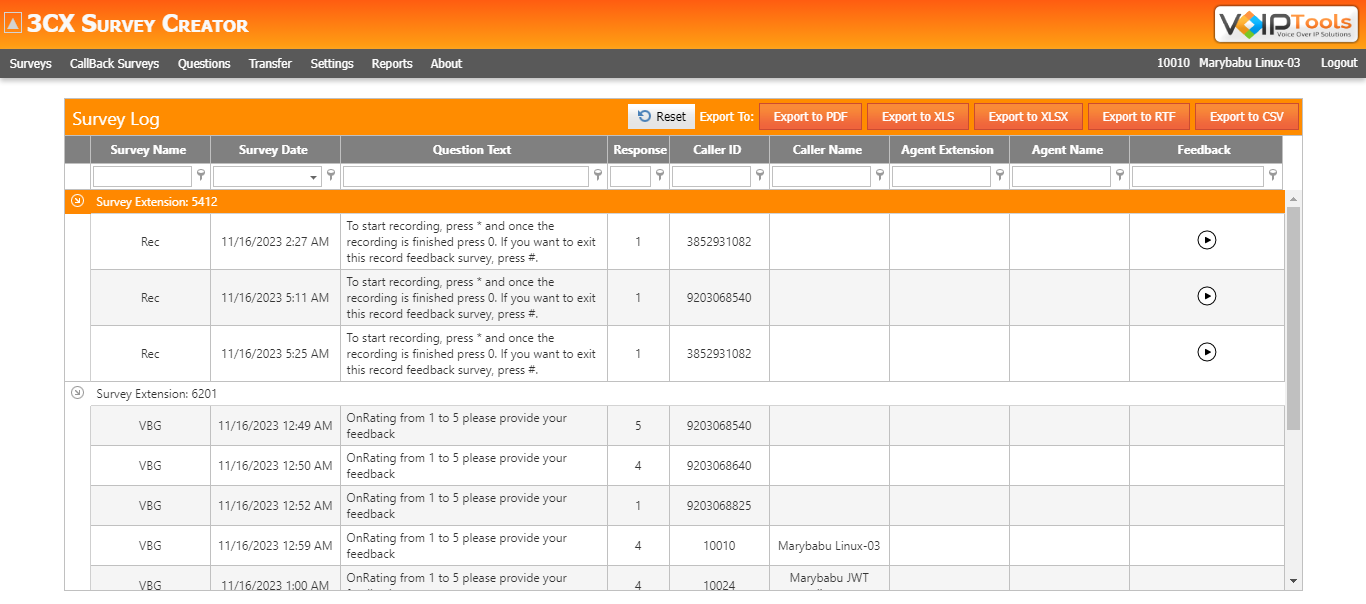

2. In the Survey Results screen, you can see that the new survey result record has been added. You can look at the Response column to know the survey result.

3. If the customer has accepted to give a feedback, you can play the recorded file

NOTE:

The recorded file path will be: “C:ProgramDataVoIPToolsDataHttpwwwroot3CX Survey CreatorTemp”

Figure 29: Play Customer Feedback Audio File

Reset Survey Results Data #

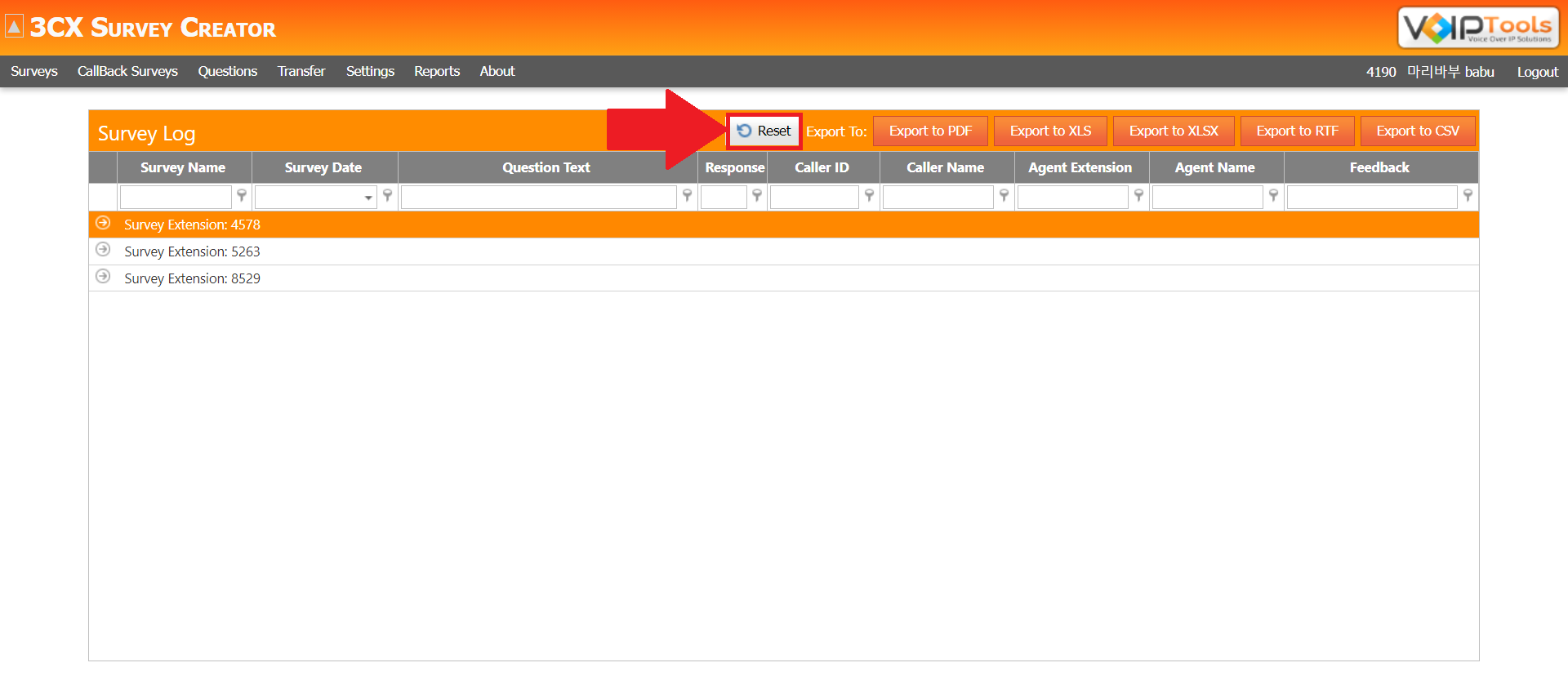

1. On the right corner of the Survey Log header, click Reset

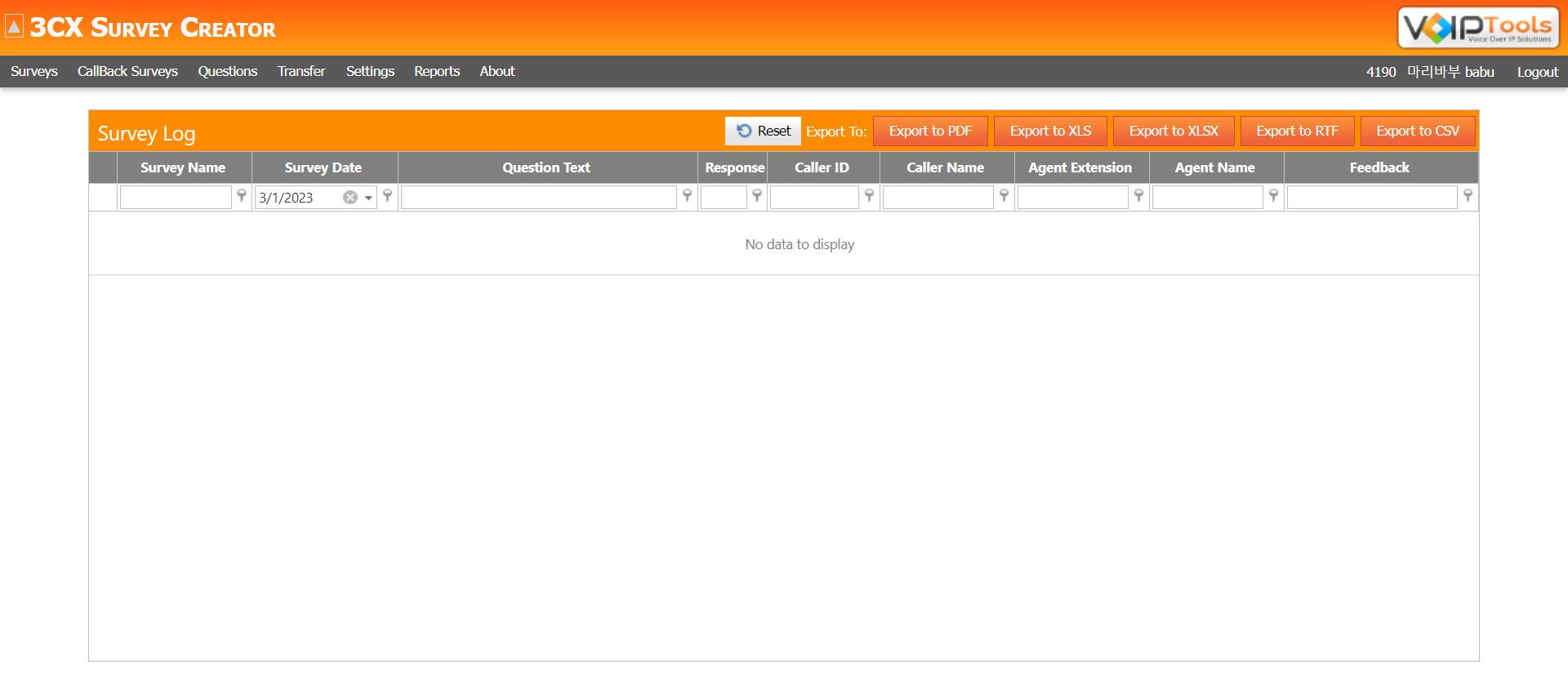

2. In the Delete Confirmation message box, click OK to delete or click Cancel to preserve the data.

Transfer Screen #

The Transfer screen allows you to transfer a customer call to survey. Once you transfer, the customer participates in the survey and the admin will be able to view the survey result from the Survey Results screen.

Transfer Customer Call to a Survey #

1. In the Transfer screen, look for Survey Name that you want to transfer to survey

2. Answer the customer call and in the Transfer to Survey column, click  to transfer the call to survey

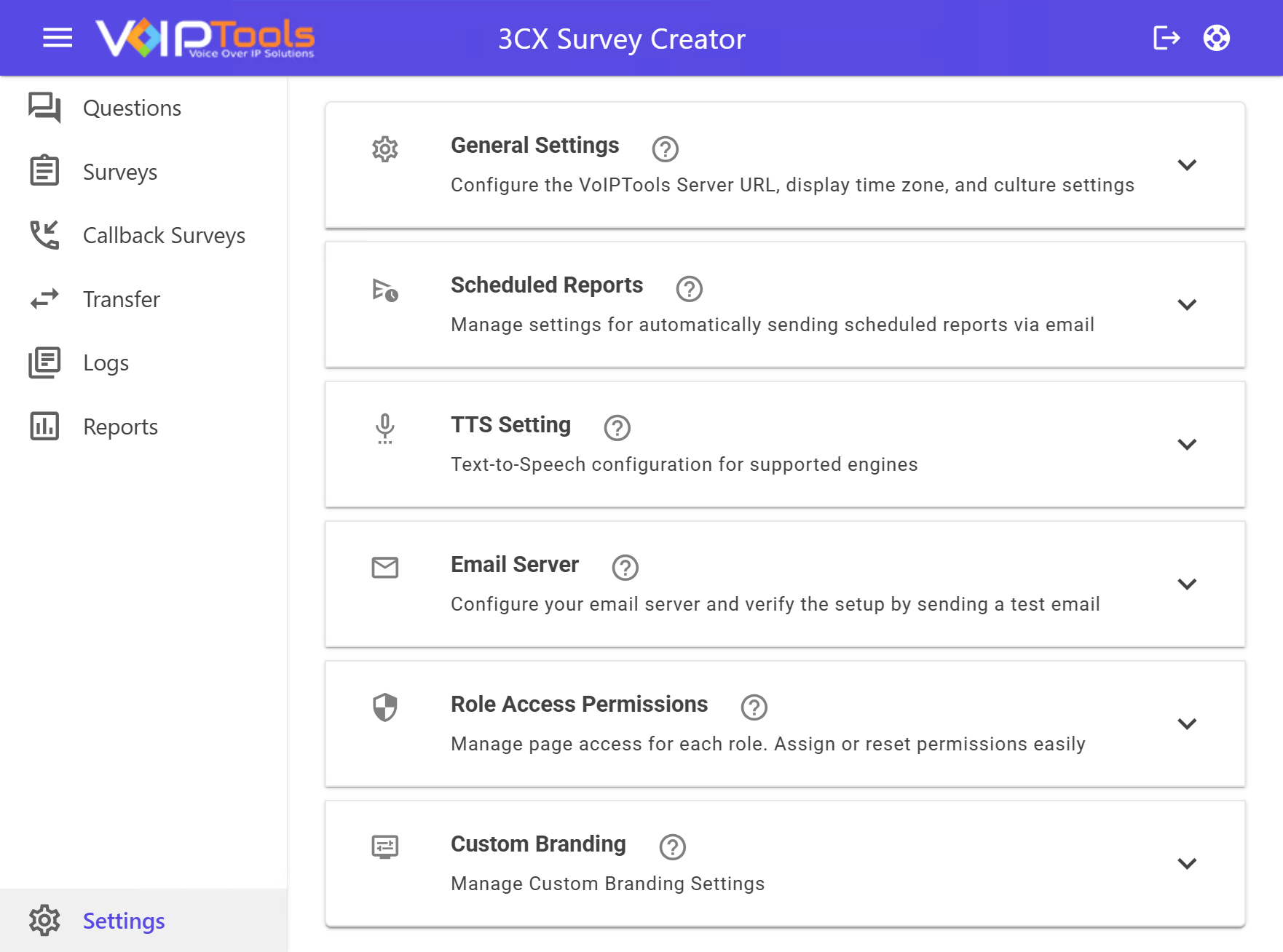

Settings Screen #

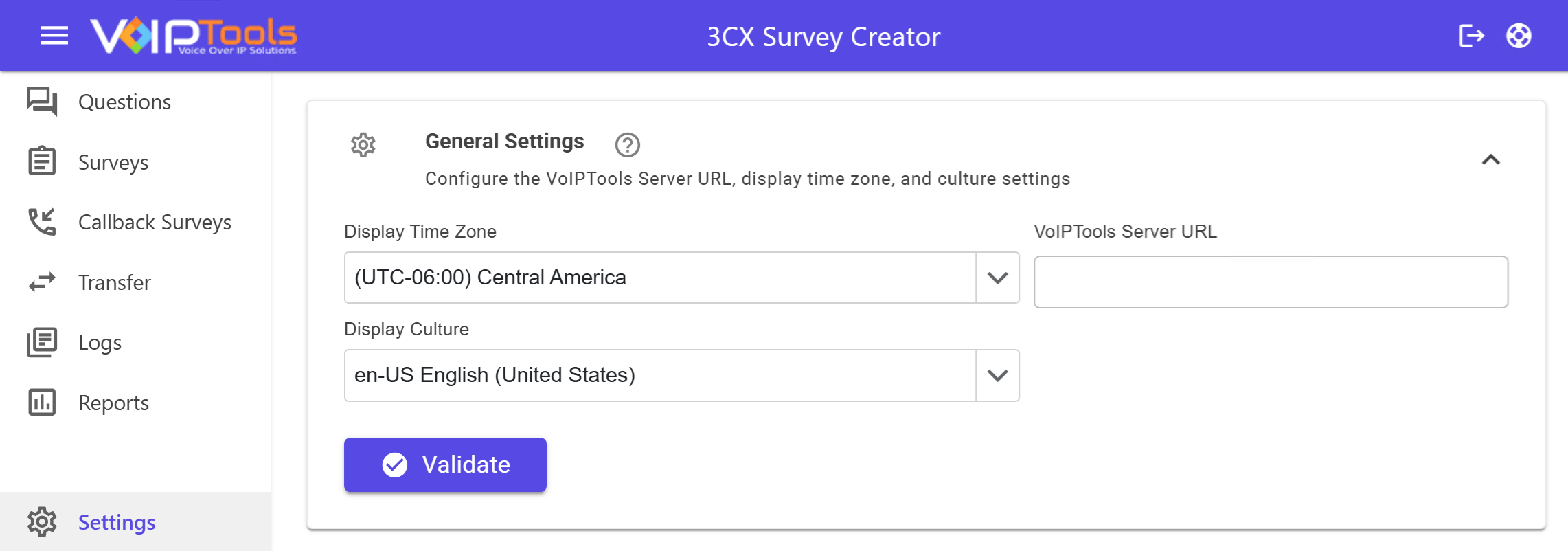

The Settings tab enables you to configure ‘Text To Speech’ settings and custom brand settings.

Hover your mouse on the Settings tab and from the Settings menu, you can click the desired option to navigate to respective screen.

The Settings include following screens:

1. TTS Settings

2. Site Settings

TTS Settings #

The TTS Settings screen enables you to configure ‘Text To Speech’ settings so that you may create questions, intro prompt (welcome note), close prompt (closing prompt) as ‘Text To Speech’ (.wav file).

1. Hover your mouse on the Settings tab and then from the menu, select TTS Settings.

2. In the Settings tab, and from the TTS Type drop down, select the TTS type as:

a). Windows TTS – if you want to create TTS message (.wav file) using built-in Windows Web Services.

b). Amazon Polly – if you want to create TTS message (.wav file) using Amazon Web Services.

3. From the Locale drop down, select the desired language for your audio file.

4. From the Voice Name drop down, select the desired voice name that you want to apply for the Text-To-Speech wav file.

5. If you have selected the TTS Type as Windows TTS then:

a). From the Gender drop down, select male or female voice.

b). From Voice Name drop down, select desired prerecorded voice that comes with the operating system of your local system.

‘NOTE:

Voice Name’ values are context sensitive to ‘Gender’ drop down

6. If you have selected the TTS Type as Amazon Polly then:

a). In the Amazon Id field, enter valid Amazon Id for the Amazon Polly account.

b). In the Amazon Key field, enter valid Amazon Key for the Amazon Polly account. To know how to create Amazon Web Services (AWS) account and generate AWS access key ID and secret key id, click here.

7. Click Test to test the generated .wav file for the respective TTS type that you have just configured.

8. Click Save to save the TTS settings.

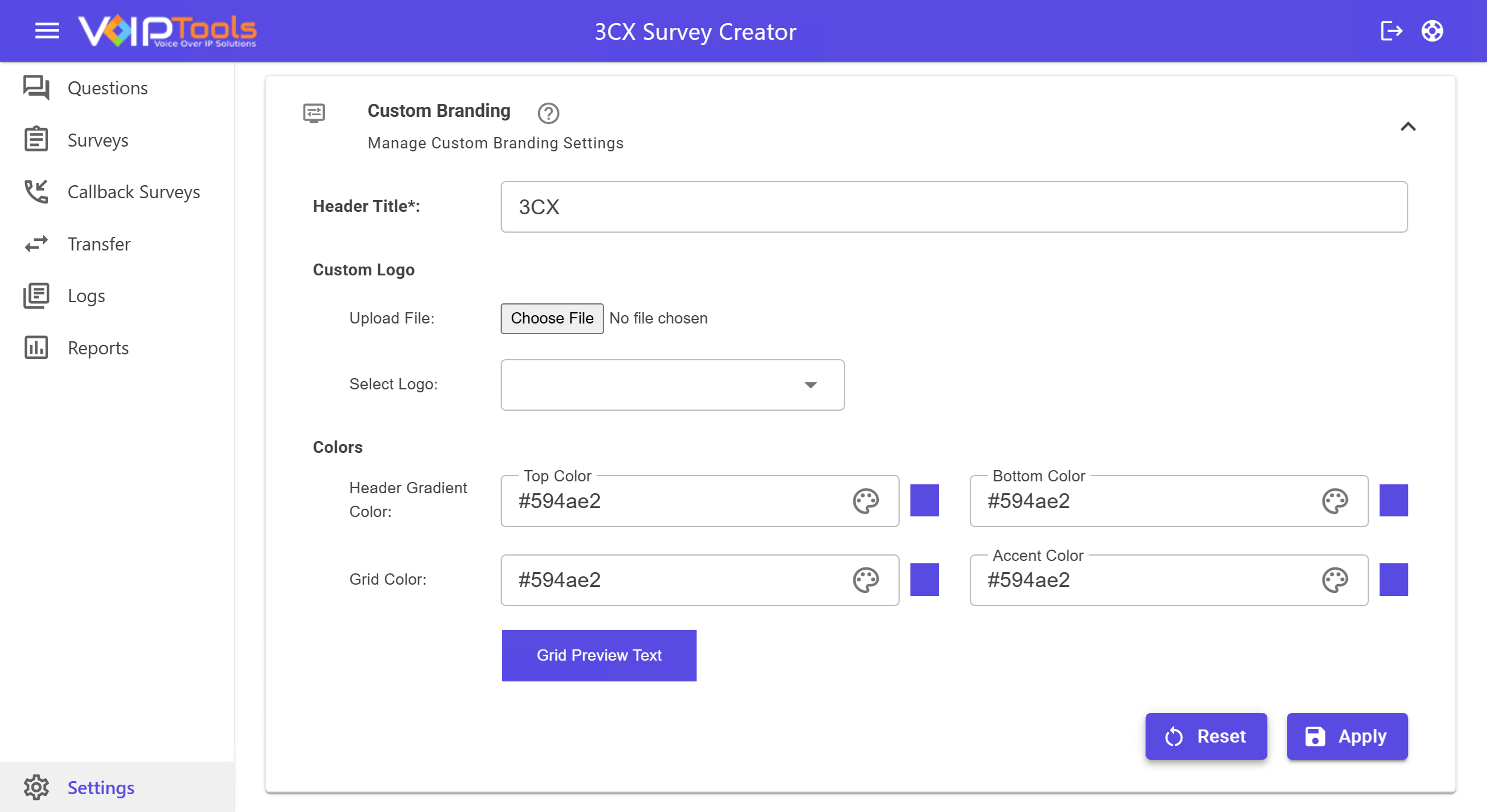

 Site Settings #

The Site Settings enable you to customize branding settings for the application that include the following:

1. Customize the gradient color of ‘Application Header’

2. Customize grid color in screens that display grid data

3. Customize logo on the ‘Application Header’

4. Customize ‘Header Title Prefix’ on the ‘Application Header’

• Custom Brand Settings

1. Hover your mouse on the Settings tab and then from the menu, select Site Settings.

2. In the Custom Branding Settings form, perform the following Brand Setting Customizations:

a. Customize Application Title Header – Gradient Color

i. Beside Header Gradient Color and from the Top Color palette, select the desired color that you want to display as the top color for the ‘Application Title Header’.

ii. From the Bottom Color palette, select the desired color that you want to display at the bottom of the ‘Application Title Header’ in gradient to the selected Top Color.

b. Customize Grid Color

i. From the Grid Color palette, select the color that you want to display for the grid in screens that display grid data.

ii. The final display after applying ‘Grid Color’ branding settings:

c. Customize Logo

i. If you are uploading the logo for the first time then, beside Upload New Logo field, click Browse and select the logo that you want to apply. You will now observe that the logo is added to the Custom Logo drop down list.

ii. From the Custom Logo drop down list, select the logo that you have just uploaded.

d. Customize ‘Header Title Prefix’ Text

i. In the Header Title field, enter the text that you want the application to display as ‘prefix’ for the existing title in application header.

3. Once you perform desired customizations, click Apply.

4. To reset to default settings, click Reset.

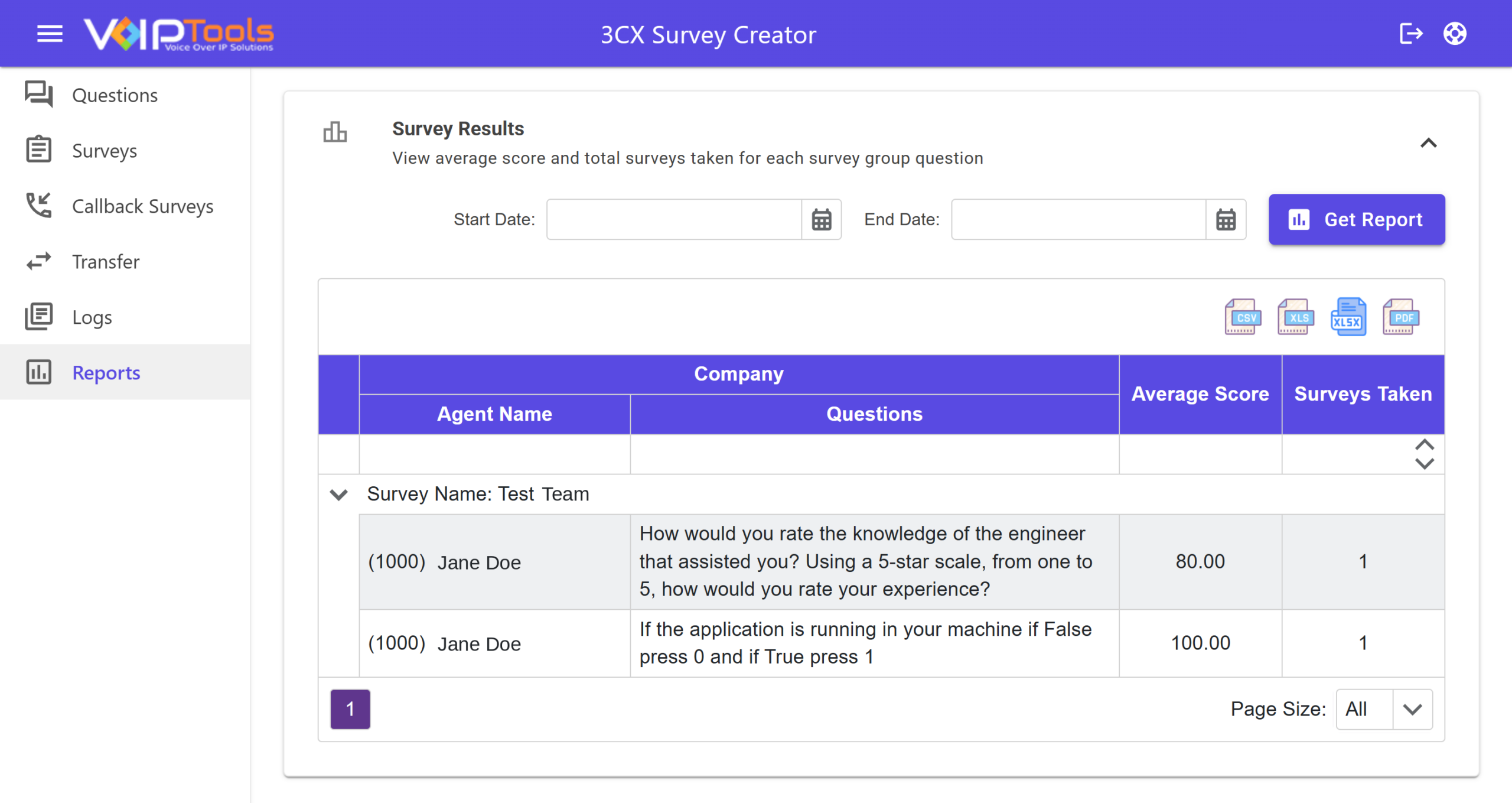

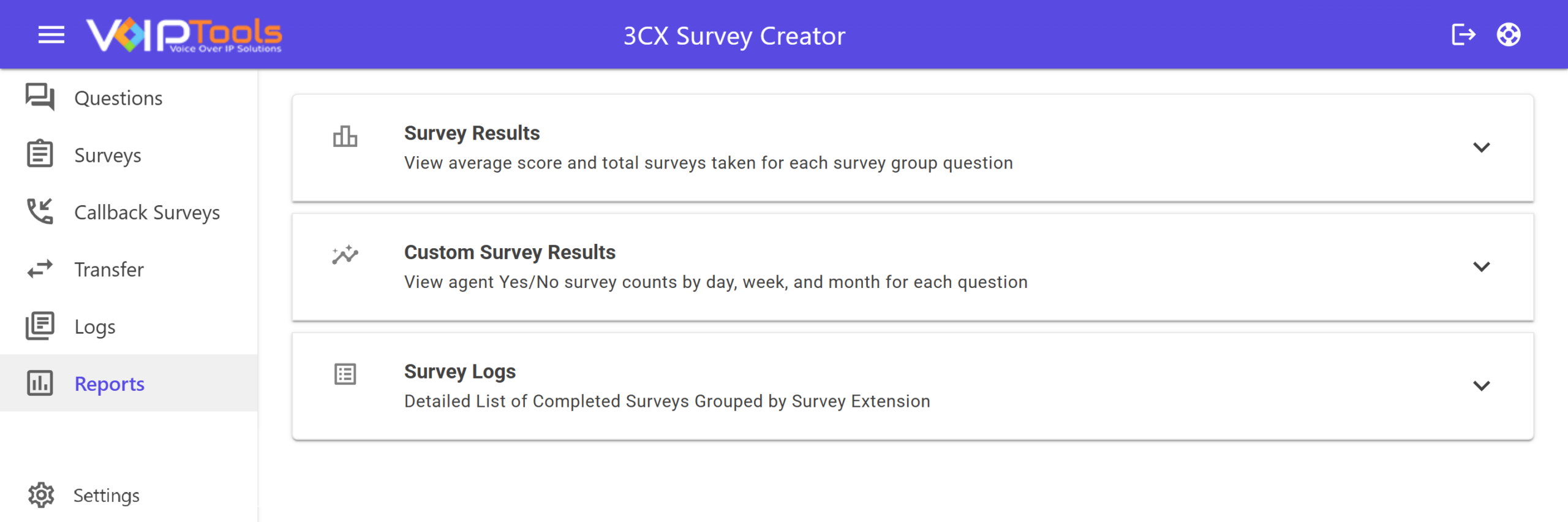

Reports Screen #

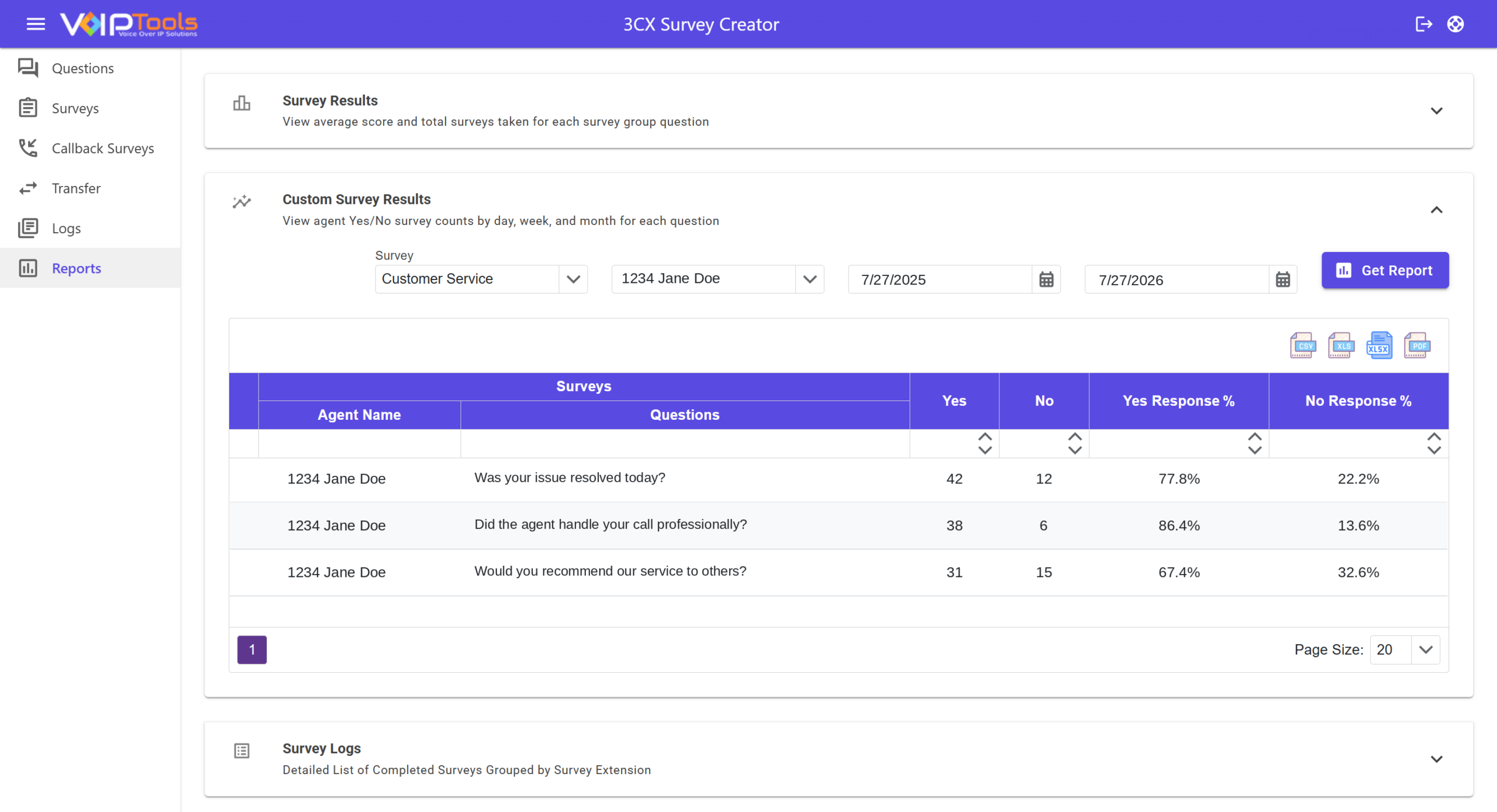

The Reports screen displays the survey information of an agent. From here, you can run a report to display survey information between the desired start and end time. You can also observe the survey score like how many times a particular agent used the question in a specific survey. The reports display the score on daily, weekly and average basis.

NOTE:

If you refresh Survey Results screen, then automatically all its associated data will also refresh in Reports page.

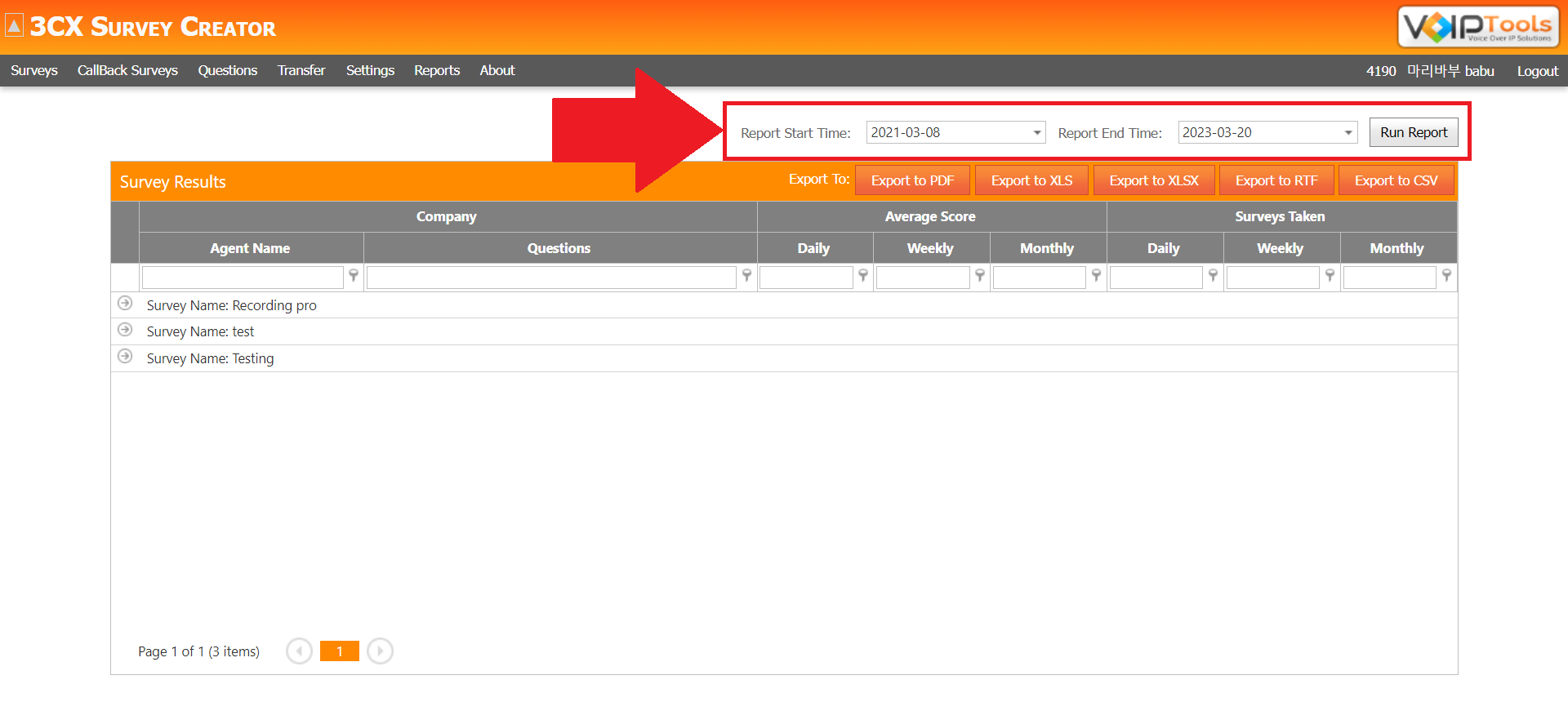

1. In the Reports screen, and below tab bar, enter the desired start and end time in Report Start Time and Report End Time fields respectively within which you want to display the survey report data.

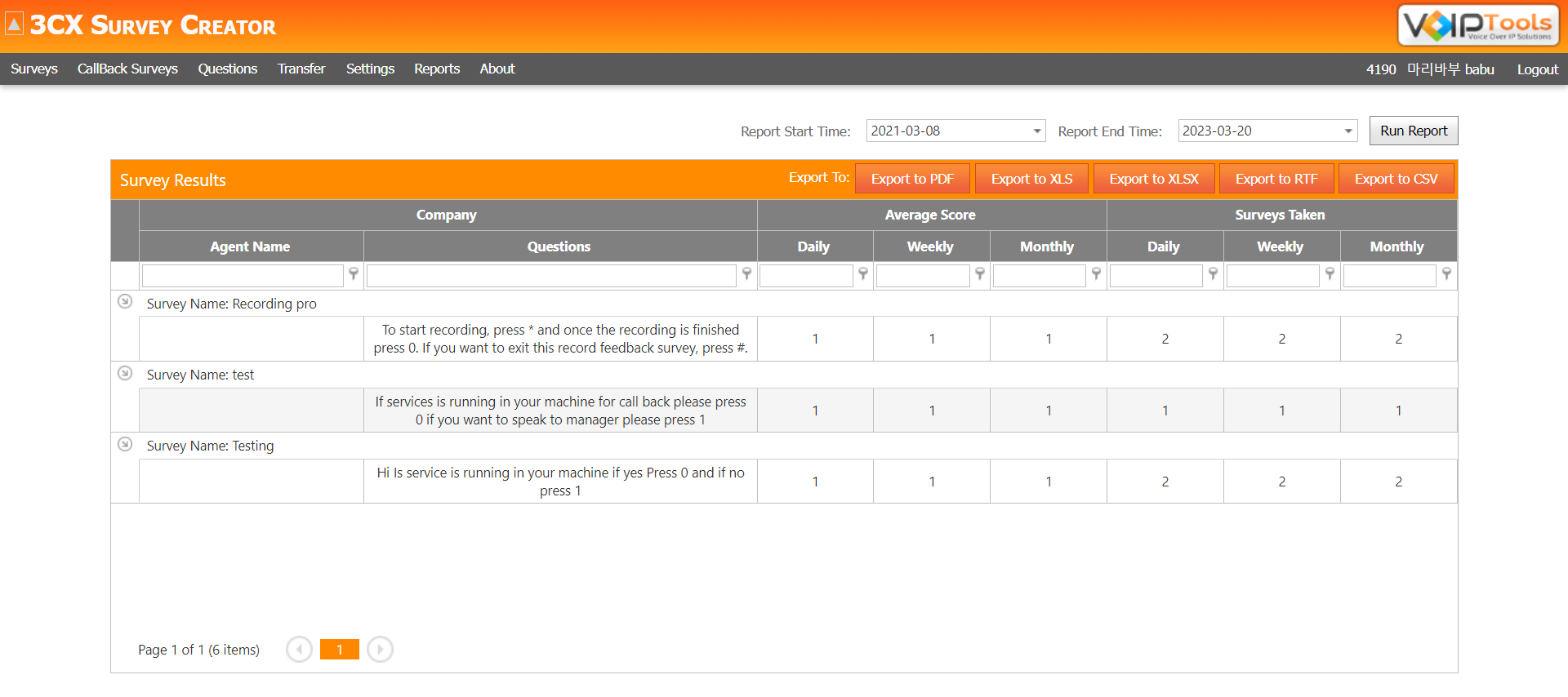

2. Click Run Report.

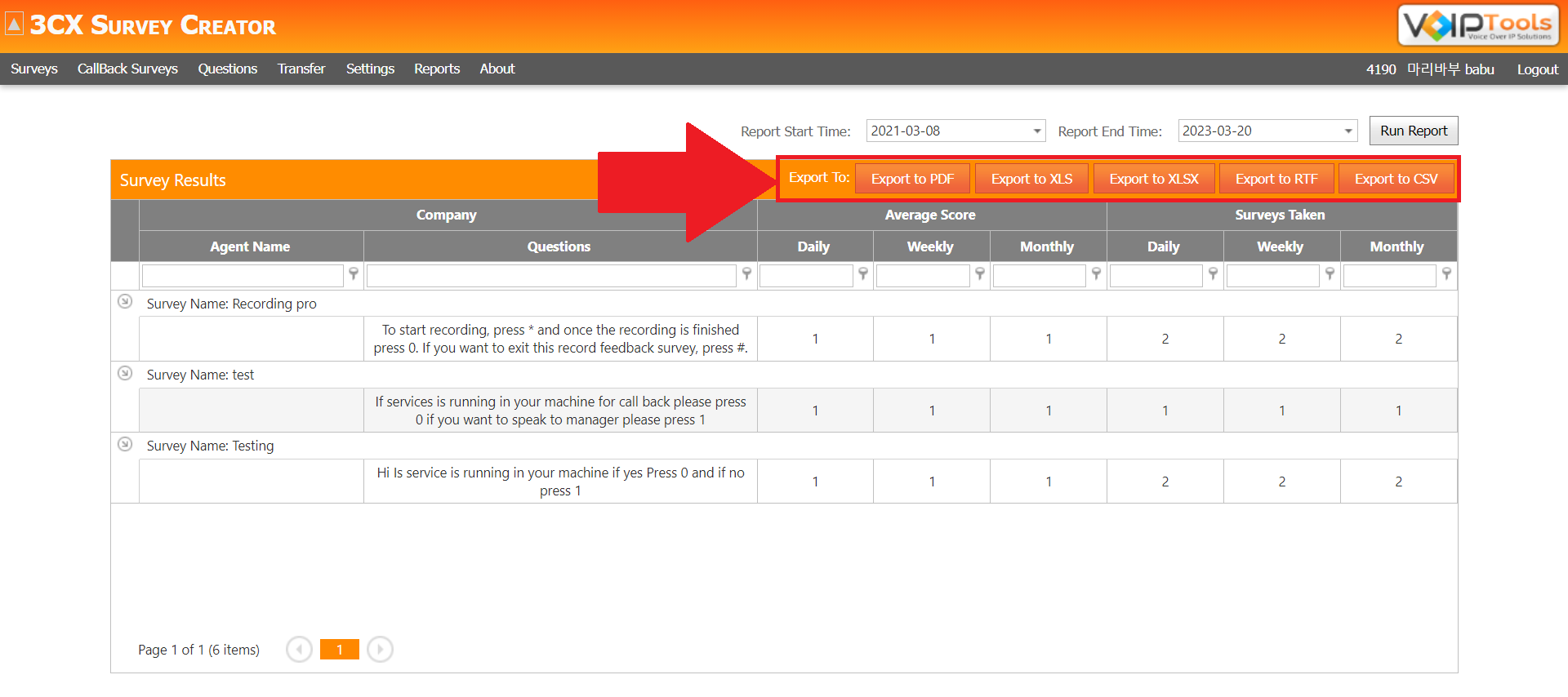

3. To export the survey results to pdf file, click PDF button.

Figure 44: Run Survey Report

About Screen #

The About screen displays current version of the application. From here, you can also update your application to latest version by clicking on Check for Updates button.

Generate Amazon Associate Product Advertising API Keys #

Click here to learn to create an Amazon Web Service account and generate Amazon Associate Product Advertising API KEYS.

Support #

Visit our website to access our on-line manuals and receive quick answers to most of your questions. Otherwise, you can contact us by phone, email, live chat and on the VoIPTools forums.

Support Hours (USA and India) #

Our team is ready to assist you with answers to your technical questions and we now offer 24/7, 365 days a year.

Windows Event Log (Applications and Services VoIPTools) #

The Windows Event Log lists various errors, information messages and warnings related to all our VoIPTools applications and services. The data here can be used for troubleshooting various application errors.

Forums #

Our forum is intended for VoIPTools customers to collaborate on real-life challenges, solutions and best practices. You can participate on our forum at: https://www.voiptools.com/community/

Submit a Bug #

If you suspect a bug in any of our VoIPTools products, you can bring it to our notice by reporting your issue at: https://www.voiptools.com/report-a-bug/

Live Chat #

Our chat support team is ready to acknowledge your queries in real-time. You can start a live chat with us by simply clicking on the Live Chat button at the lower right corner of our web page.

Email #

You can email us at: support@voiptools.com. Be sure to describe your issue in detail. We’ll get back to you within one business day of receiving your request.

Phone #

You can call us at +1 801-642-4655 to reach a representative. VoIPTools will accept calls at this number from 8:00 AM to 6:00 PM (Central Standard Time).

Support Services #

Free Support: #

If you purchased our products through a VoIPTools Partner, your Partner will provide first level support. Partners have access to 100% free technical support, provided they participate actively in the troubleshooting process.

VoIPTools customers have access to our on-line manuals and we will respond to emails (next business day) and live chat, but we will not login to your servers remotely.

Paid Support: #

If you purchase “Installation Support’ our support team can login to your servers and install and configure all our tools for you. This includes installing SQL Server Express and Internet Information Server if required. Our team will work with you to configure our applications to best meet your needs.
